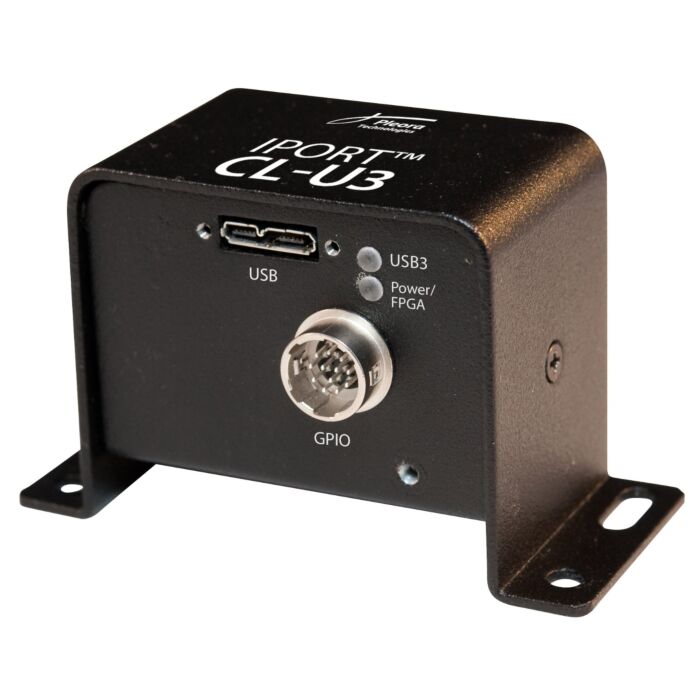

Pleora iPORT CL-U3B (903-0011) External Frame Grabbers With Development Kit
Pleora iPORT CL-U3B External Frame Grabbers W/ Dev Kit: Revolutionizing Industrial Imaging
Unlock the potential of your Camera Link cameras with Pleora's iPORT CL-U3B External Frame Grabbers. Seamlessly integrating into USB3 Vision, these frame grabbers harness the power of USB 3.0, delivering high-bandwidth output, power over cable, and compatibility with various computing platforms, including laptops, embedded computers, and single-board computers.
Designed to transmit video from Base and Medium mode Camera Link cameras with low, predictable latency, the iPORT CL-U3B family facilitates direct connections to existing ports. Its integrated PLC and GPIO capabilities empower users to control, trigger, and synchronize cameras, enhancing overall vision system performance.
The iPORT CL-U3B Development Kit (903-0011) includes the external frame grabber in a mountable enclosure, a USB 3.0 cable, and the eBUS SDK USB stick. While the eBUS SDK provides development support, it's crucial to note that it is for use as-is, not supported, and doesn't grant access to maintenance releases or runtime licenses for workstations.
This versatile solution caters to specific system requirements, offering extended operating temperature range, extensive GPIO functionality, and power over Camera Link (PoCL). Elevate your industrial imaging capabilities with Pleora's iPORT CL-U3B External Frame Grabbers.
Features:
- High-bandwidth output
- Power over cable (PoCL)
- USB 3.0 compatibility
- Integrated PLC and GPIO capabilities
- Seamless integration with Camera Link cameras
Applications:
- Machine Vision Systems
- Industrial Imaging
- Vision-guided Robotics
- Quality Inspection
- Automation and Control Systems
|
iPORT™ External Frame Grabber |
•Highly reliable, 3 Gb/s data transfer rate with low, end-to-end latency |
|
eBUS™ SDK |
•Driver installation tool |
|
USB3 Vision and |
•Fully-compatible firmware load •Guarantees delivery of all packets •Comprehensive data transfer diagnostics |
|
Tap Support |
•Base mode: 1 and 2 taps •Medium mode: 1,2, and 4 taps |
|
Tap Geometry |
•1X_1Y, 1X2_1Y, 1X, 1X2, 1X4_1Y, 1X4 |
|
Video Modes |
•Mono, Bayer GR, Bayer RG, Bayer GB, Bayer BG, RGB, BGR, Sparse Color Filter Pattern |
|
Pixel Depth |
•8, 10, 12, 14, 16 bits |
|
Pixel Clock |
•20 MHz to 85 MHz |
|
Frame Buffer |
•128 MB |
|
USB 3.0 based |
•Connection to low-cost, easy-to-use equipment |
|
Programmable Logic Controller |
•Advanced image capture control |
|
GPIO |
•4 TTL/LVCMOS inputs |
|
GPIO (CL-U3x-IND models only) |
•2 RS-422/HVTTL/24V/30V differential or single-ended inputs |
|
Size (L x W x H) |
•38 mm X 82 mm X 51 mm |
|
Operating Temperature |
•0 °C to 45 °C •Allows synchronized capture between multiple cameras •Allows camera acquisition to track changing speeds on conveyor belts |
|
UART and RS-232 Serial Links (LVCMOS/LVTTL) |
•Serial control of camera and other devices via PC application over the GigE link |
|
Size (L x W x H) |
•117mm x 100mm x 83.5mm |
|
Operating Temperature |
•0°C-45°C |
|
Storage Temperature |
•-40°C to 85°C |
|
External Power Supply |
•4.8V to 16V (CL-U3x-IND models only) |
|
Power Consumption |
•2.5 W |
|
Video |
•SDR-26 (Mini CL) for Camera Link |
|
USB |
•10-Pin USB 3.0 micro-B Receptacle with locking screw connectors |
|
GPIO |
•Hirose 12-pin (HR10A-10R-12S) |
|
Power In |
•Power over USB cable |
|
Power Out (CL-U3x-IND models only) |
•PoCL |
|
ORDERING INFORMATION |
|
|
903-0007 |
•iPORT CL-U3B External Frame Grabber for Camera Link Base mode with 128 MB frame buffer. |
|
903-0011 |
•iPORT CL-U3B Evaluation Kit including 903-0007, USB 3.0 cable, and eBUS SDK USB stick. |
|
903-0019 |
•iPORT CL-U3B-IND Industrial-use External Frame Grabber board set without enclosure for Camera Link Base mode with extended |
|
903-0009 |
•iPORT CL-U3B-IND External Frame Grabber for Camera Link Base mode with 128 MB frame buffer, extended operating |
|
903-0013 |
•iPORT CL-U3B-IND Evaluation Kit including 903-0009, power supply, USB 3.0 cable, and eBUS SDK USB stick. |
|
903-0008 |
•iPORT CL-U3M External Frame Grabber for Camera Link Medium mode with 128 MB frame buffer. |
|
903-0012 |
•iPORT CL-U3M Evaluation Kit including 903-0008, USB 3.0 cable, and eBUS SDK USB stick. |
|
903-0020 |
•iPORT CL-U3M-IND Industrial-use External Frame Grabber board set without enclosure for Camera Link Medium mode with |
|
903-0010 |
•iPORT CL-U3M-IND External Frame Grabber for Camera Link Medium mode with 128 MB frame buffer, extended operating |
|
903-0014 |
•iPORT CL-U3M-IND Evaluation Kit including 903-0010, power supply, USB 3.0 cable, and eBUS SDK USB stick. |
