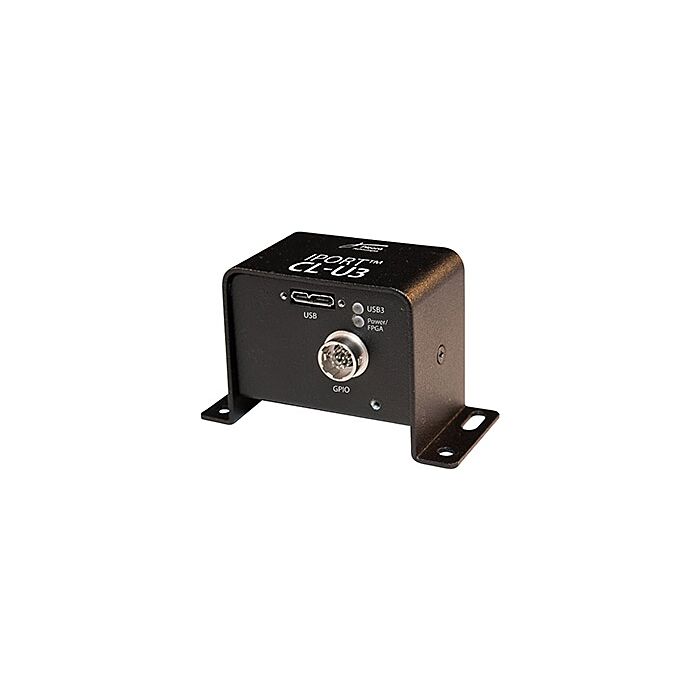

Pleora iPORT CL-U3B (903-0011) Angled Front View

Pleora iPORT CL-U3B (903-0011) External Frame Grabbers With Development Kit

Pleora iPORT CL-U3B-IND (903-0013) Front Angled View

Pleora iPORT CL-U3B-IND (903-0013) External Frame Grabbers With Development Kit

Pleora iPORT CL-U3B-IND (903-0009) External Frame Grabbers

Transform Camera Link into USB3 Vision effortlessly with Pleora iPORT CL-U3B-IND External Frame Grabbers. Experience high-speed, cost-effective industrial imaging. Unlock your vision system's potential today!

Pleora CL-U3B-IND 903-0009

Revolutionize Industrial Imaging with Pleora iPORT CL-U3B-IND External Frame Grabbers

Elevate your industrial imaging capabilities with Pleora’s iPORT™ CL-U3B-IND External Frame Grabbers, offering a transformative solution for systems manufacturers and integrators. These frame grabbers empower users by converting Camera Link® cameras into native USB3 Vision™ devices, providing a cost-effective and flexible design approach. By leveraging the high-speed data transfer capabilities of USB 3.0, these external grabbers eliminate the need for traditional frame grabbers with peripheral card slots, allowing integration with smaller form factor computing platforms like laptops and embedded computers.

The CL-U3B-IND family excels in transmitting video from both Base and Medium mode Camera Link cameras with low and predictable latency over the USB 3.0 link. The integration of PLC and GPIO capabilities enables end-users to exercise control, trigger actions, and synchronize cameras within vision systems seamlessly. Pleora's commitment to standards compliance is evident in the CL-U3B-IND, ensuring compatibility with USB3 Vision and GenICam™ standards, fostering interoperability in multi-vendor environments.

Designed with versatility in mind, these frame grabbers cater to specific system requirements, offering options like extended temperature operating range, extensive GPIO functionality, and power over Camera Link (PoCL). Bundled with Pleora’s feature-rich eBUS™ SDK application toolkit, the CL-U3B-IND is the gateway to unlocking the full potential of USB 3.0, boasting high-bandwidth output, power over cable, and plug-and-play usability. Revolutionize your industrial imaging experience with Pleora's cutting-edge technology today.


  • Converts Camera Link to USB3 Vision
  • USB 3.0 Interface for High-Speed Data Transfer
  • Compact Form Factor for Design Flexibility
  • Low Latency Imaging
  • Integrated PLC and GPIO Capabilities
  • Extended Temperature Range Option
  • eBUS™ SDK for Feature-Rich Application Development
  • GenICam™ Compliance for Interoperability


  • Industrial Automation
  • Robotics
  • Quality Control
  • Machine Vision Systems
  • Medical Imaging
  • Surveillance
  • Traffic Monitoring
  • Intelligent Transportation Systems
iPORT™ External Frame Grabber Highly reliable, 3 Gb/s data transfer rate with low, end-to-end latencyContained in surface-mountable enclosure
eBUS™ SDK Driver installation toolDocumentation
USB3 Vision andGenICam Fully-compatible firmware loadGuarantees delivery of all packetsComprehensive data transfer diagnostics
Tap Support Base mode: 1 and 2 tapsMedium mode: 1,2, and 4 taps
Tap Geometry 1X_1Y, 1X2_1Y, 1X, 1X2, 1X4_1Y, 1X4
Video Modes Mono, Bayer GR, Bayer RG, Bayer GB, Bayer BG, RGB, BGR, Sparse Color Filter Pattern
Pixel Depth 8, 10, 12, 14, 16 bits
Pixel Clock 20 MHz to 85 MHz
Frame Buffer 128 MB
USB 3.0 based  Connection to low-cost, easy-to-use equipmentUSB3 Vision 1.0 compliant
Programmable Logic Controller  Advanced image capture controlIntegrated with GPIO
GPIO 4 TTL/LVCMOS inputs3 TTL/LVCMOS outputs
GPIO (CL-U3x-IND models only) 2 RS-422/HVTTL/24V/30V differential or single-ended inputs2 TTL/LVCMOS inputs3 TTL/LVCMOS outputs
Size (L x W x H) 38 mm X 82 mm X 51 mm
Operating Temperature 0 °C to 45 °CAllows synchronized capture between multiple camerasAllows camera acquisition to track changing speeds on conveyor belts
UART and RS-232 Serial Links (LVCMOS/LVTTL) Serial control of camera and other devices via PC application over the GigE link
Size (L x W x H)   117mm x 100mm x 83.5mm
Operating Temperature 0°C-45°C-20°C to 60°C (CL-U3x-IND models only)
Storage Temperature -40°C to 85°C
External Power Supply  4.8V to 16V (CL-U3x-IND models only)
Power Consumption 2.5 W
Video SDR-26 (Mini CL) for Camera Link
USB 10-Pin USB 3.0 micro-B Receptacle with locking screw connectors
GPIO Hirose 12-pin (HR10A-10R-12S)
Power In Power over USB cableGPIO Connector (CL-U3x-IND models only)
Power Out (CL-U3x-IND models only) PoCLSDR-26 Connector


903-0009 iPORT CL-U3B-IND External Frame Grabber for Camera Link Base mode with 128 MB frame buffer, extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL).
903-0013 iPORT CL-U3B-IND Evaluation Kit including 903-0009, power supply, USB 3.0 cable, and eBUS SDK USB stick.
903-0019 iPORT CL-U3B-IND Industrial-use External Frame Grabber board set without enclosure for Camera Link Base mode with extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL).
