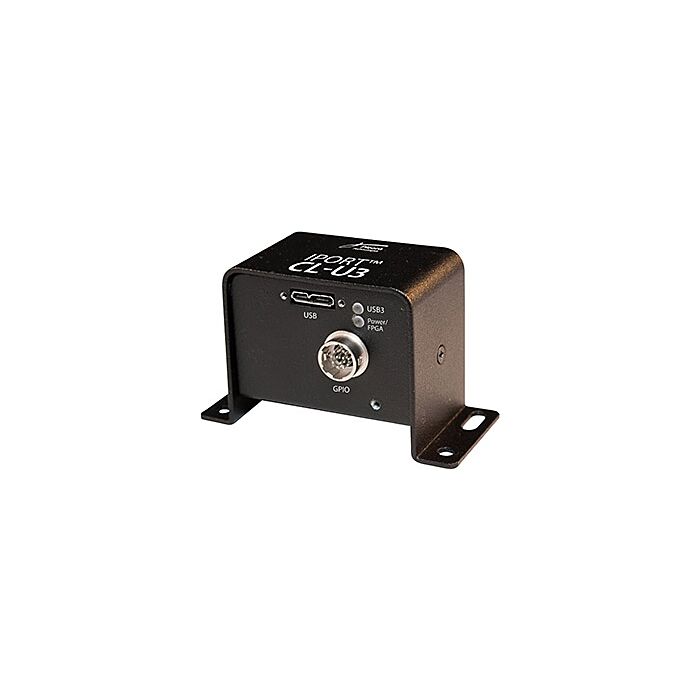

Pleora iPORT CL-U3B (903-0007) External Frame Grabbers

Revolutionize vision systems with Pleora iPORT CL-U3B External Frame Grabbers. High-performance USB3 Vision interface, low latency, and versatile connectivity. Elevate your industrial and machine vision applications.
SKU
Pleora iPORT CL-U3B 903-0007

Enhance Vision Systems with Pleora iPORT CL-U3 External Frame Grabbers

Pleora’s iPORT™ CL-U3B External Frame Grabbers provide systems manufacturers and integrators with cost and design flexibility advantages by converting Camera Link® cameras into native USB3 Vision™ cameras. With these external frame grabbers, Camera Link cameras can transport high-speed imaging and video data over the widely available USB 3.0 bus. The cameras can also be used with a broader selection of smaller form factor, low-power computing platforms to help reduce system costs. The CL-U3B family transmits video from Base and Medium mode Camera Link cameras with low, predictable latency over a USB 3.0 link. The connection at the workstation is a standard USB 3.0 port, eliminating the need for a desktop computer with an available peripheral card slot for a traditional frame grabber. As a result, designers can reduce system size, cost, and power consumption by using computing platforms with smaller form factors, such as laptops, embedded computers, and single-board computers. Integrated PLC and GPIO capabilities allow end-users to control, trigger and synchronize cameras and other vision system elements. Pleora’s CL-U3B External Frame Grabbers help systems manufacturers and integrators to leverage the performance attributes of USB 3.0, including high-bandwidth output, power over cable, and plug-and-play usability. The iPORT CL-U3B External Frame Grabber family delivers a range of solutions for designers to meet specific system requirements, including products supporting extended temperature operating range, extensive GPIO functionality, and power over Camera Link (PoCL). The CL-U3B complies fully with the USB3 Vision and GenICam™ standards, ensuring interoperability with third-party equipment in multi-vendor environments. The CL-U3B is bundled with Pleora’s feature-rich eBUS™ SDK application toolkit.

Features:
  • Transmits video from Camera Link Base or Medium mode cameras over USB 3.0, with low, predictable latency
  • Plugs into a wide range of computing platforms without needing a PCI/PCIe frame grabber
  • Compact and low power
  • Mountable enclosure
  • Line scan and area scan modes
  • 128 MB frame buffer to accommodate multi-mega pixel sensor sizes
  • Throughput approaching 3 Gb/s
  • Record and playback functionality
  • USB3 Vision and GenICam compatible
  • Power, control, and video over the same USB 3.0 cable
  • Power over Camera Link (PoCL) with models CL-U3B-IND and CL-U3M-IND (external power supply required)
  • Sophisticated on-board programmable logic controller (PLC) allows users to precisely measure, synchronize, trigger, and control the operation of other vision system elements


Applications:

  • Vision
  • Microscopy
  • Medical Imaging
  • Military Imaging

iPORT™ External Frame Grabber

•Highly reliable, 3 Gb/s data transfer rate with low, end-to-end latency
•Contained in surface-mountable enclosure

eBUS™ SDK

•Driver installation tool
•Documentation

USB3 Vision and
GenICam

•Fully-compatible firmware load

•Guarantees delivery of all packets

•Comprehensive data transfer diagnostics

Tap Support

•Base mode: 1 and 2 taps

•Medium mode: 1,2, and 4 taps

Tap Geometry

•1X_1Y, 1X2_1Y, 1X, 1X2, 1X4_1Y, 1X4

Video Modes

•Mono, Bayer GR, Bayer RG, Bayer GB, Bayer BG, RGB, BGR, Sparse Color Filter Pattern

Pixel Depth

•8, 10, 12, 14, 16 bits

Pixel Clock

•20 MHz to 85 MHz

Frame Buffer

•128 MB

USB 3.0 based

•Connection to low-cost, easy-to-use equipment
•USB3 Vision 1.0 compliant

Programmable Logic Controller

•Advanced image capture control
•Integrated with GPIO

GPIO

•4 TTL/LVCMOS inputs
•3 TTL/LVCMOS outputs

GPIO (CL-U3x-IND models only)

•2 RS-422/HVTTL/24V/30V differential or single-ended inputs
•2 TTL/LVCMOS inputs
•3 TTL/LVCMOS outputs

Size (L x W x H)

•38 mm X 82 mm X 51 mm

Operating Temperature

•0 °C to 45 °C

•Allows synchronized capture between multiple cameras

•Allows camera acquisition to track changing speeds on conveyor belts

UART and RS-232 Serial Links (LVCMOS/LVTTL)

•Serial control of camera and other devices via PC application over the GigE link

Size (L x W x H)

•117mm x 100mm x 83.5mm

Operating Temperature

•0°C-45°C
•-20°C to 60°C (CL-U3x-IND models only)

Storage Temperature

•-40°C to 85°C

External Power Supply

•4.8V to 16V (CL-U3x-IND models only)

Power Consumption

•2.5 W

Video

•SDR-26 (Mini CL) for Camera Link

USB

•10-Pin USB 3.0 micro-B Receptacle with locking screw connectors

GPIO

•Hirose 12-pin (HR10A-10R-12S)

Power In

•Power over USB cable
•GPIO Connector (CL-U3x-IND models only)

Power Out (CL-U3x-IND models only)

•PoCL
•SDR-26 Connector



ORDERING INFORMATION

903-0007

•iPORT CL-U3B External Frame Grabber for Camera Link Base mode with 128 MB frame buffer.

903-0011

•iPORT CL-U3B Evaluation Kit including 903-0007, USB 3.0 cable, and eBUS SDK USB stick.

903-0019

•iPORT CL-U3B-IND Industrial-use External Frame Grabber board set without enclosure for Camera Link Base mode with extended
operating temperature range, extensive GPIO, and power over Camera Link (PoCL).

903-0009

•iPORT CL-U3B-IND External Frame Grabber for Camera Link Base mode with 128 MB frame buffer, extended operating
temperature range, extensive GPIO, and power over Camera Link (PoCL).

903-0013

•iPORT CL-U3B-IND Evaluation Kit including 903-0009, power supply, USB 3.0 cable, and eBUS SDK USB stick.

903-0008

•iPORT CL-U3M External Frame Grabber for Camera Link Medium mode with 128 MB frame buffer.

903-0012

•iPORT CL-U3M Evaluation Kit including 903-0008, USB 3.0 cable, and eBUS SDK USB stick.

903-0020

•iPORT CL-U3M-IND Industrial-use External Frame Grabber board set without enclosure for Camera Link Medium mode with
extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL)

903-0010

•iPORT CL-U3M-IND External Frame Grabber for Camera Link Medium mode with 128 MB frame buffer, extended operating
temperature range, extensive GPIO, and power over Camera Link (PoCL).

903-0014

•iPORT CL-U3M-IND Evaluation Kit including 903-0010, power supply, USB 3.0 cable, and eBUS SDK USB stick.
