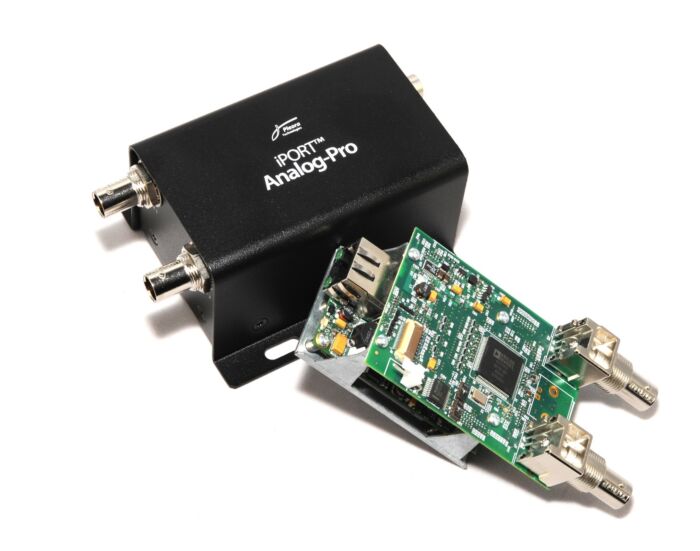

Pleora iPORT Analog-Pro (900-6208) External Frame Grabber With Development Kit

Upgrade analog cameras seamlessly to digital with Pleora's iPORT Analog-Pro Frame Grabber & Development Kit. Maximize investments, enhance vision systems!
SKU

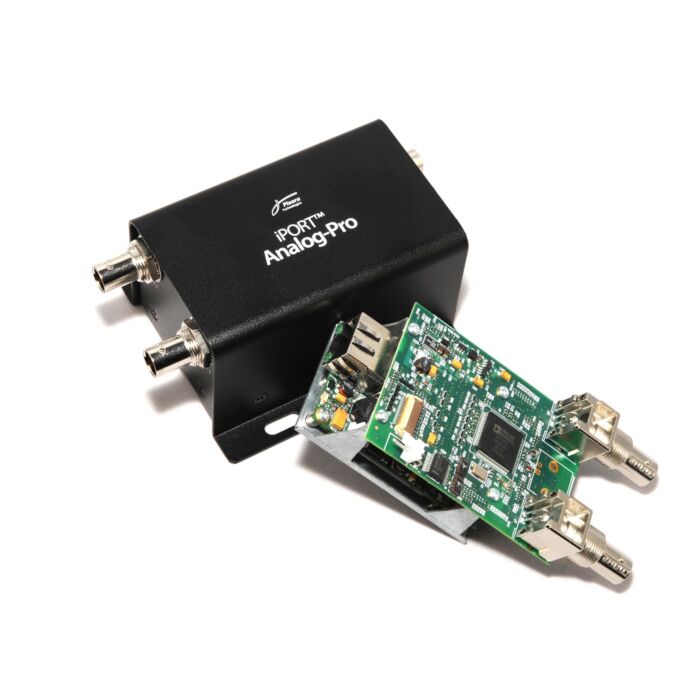

Pleora iPORT Analog-Pro (900-6208)

Upgrade Your Analog Cameras with Pleora iPORT Analog-Pro Frame Grabber + Development Kit

Enhance your industrial and machine vision applications with Pleora's iPORT Analog-Pro External Frame Grabbers. Designed to seamlessly integrate analog cameras into GigE Vision networks, these frame grabbers offer a cost-effective solution to preserve investments in existing cameras and optics while converting to fully digital video connectivity. With the Analog-Pro, analog cameras can enjoy the benefits of Gigabit Ethernet (GigE) for both video and remote control, extending their reach over long distances in networked environments.

These external frame grabbers are compact and simple to integrate, allowing for the simultaneous transmission of two channels of composite video at up to 30 frames per second (fps) each with low, predictable latency over a GigE link. The GigE connectivity supports cabling distances of up to 100 meters using standard CAT5e/6 cabling, and with off-the-shelf Ethernet switches, distances can be unlimited.

The connection at the computing platform is a standard GigE port, enabling designers to reduce system size, cost, and power consumption by utilizing smaller form factor computing platforms such as laptops, embedded PCs, and single-board computers. Additionally, the Analog-Pro is supported by Pleora's feature-rich eBUS SDK application tool kit, allowing designers to rapidly prototype and deploy production-ready software to support video transmission over GigE, 10 GigE, and USB 3.0 using the same application programming interface (API).

Features:

  • Seamlessly integrate analog cameras into GigE Vision networks
  • Transmit two channels of composite video simultaneously
  • Low latency video transmission over GigE link
  • Compact design for easy integration
  • Supported by Pleora's eBUS SDK application tool kit

Applications:

  • Factory Automation
  • Quality Control
  • Robotics
  • Industrial Inspection
  • Traffic Monitoring

iPORT™ External Frame Grabbers

•Highly reliable; up to 1 Gb/s data transfer rate with low, end-to-end latency
•OEM board set or enclosed unit
•32MB image buffer
•4 TTL inputs, 3 TTL outputs (4th TTL output available with customer-supplied connector); software-controllable
•2 RS-232 serial ports

eBUS™ SDK

•eBUS Universal Pro driver
•Sample applications, including NetCommand™ sample application, a demonstration of multi-device network connectivity
•Driver installation tool
•Documentation

Gige Vision® and GenICam™

•Fully-compatible firmware load

•Guarantees delivery of all packets

•Comprehensive data transfer diagnostics

Video Standards

•NTSC, PAL, CCIR, RS-170

Pixel Formats

•8-bit Monochrome,YUV4:2:2 (packed)

Deinterlacing Support

•Off

•Weave

•Line duplication

Power

•Enclosed: Hirose 6-pin

•OEM: 2-pin, 0.10” header

Network

•RJ-45 female

Video Interface

•2 x BNC female

Serial and GPIO

•12-pin round, locking connector

Gigabit Ethernet Based

•Low-cost, easy-to-use equipment

•Compatible with 10/100/1000 Mb/s Ethernet networks

•Supports IEEE 802.3 (Ethernet), IP, IGMP v.2, UDP and ICMP (ping)

•Long reach: 100 m point-to-point, unlimited distance with Ethernet switches

Multicast Compatibility

•Enables advanced distributed processing and control architectures

Size (L x W x H)

•Enclosed: 113mm x 82mm x 51mm

•OEM: 105 mm X 52 mm X 42 mm

Operating temperature

•0 ºC to 40 ºC (OEM higher with thermal pad)

Storage temperature

•-40°C to 85°C

Power Supply

•5 V to16 V

Power Consumption

•Maximum 4W (with both channels in use)



ORDERING INFORMATION

 900-6207

iPORT Analog-Pro SD OEM Kit. Analog-Pro OEM board set assembled on a carrier bracket*, GPIO board assembly with flat-flex cable, and unsoldered 12-pin circular connector.

 900-6209

iPORT Analog-Pro SD Enclosed. Analog-Pro in mountable enclosure.
NB - GENERALLY AVAILABLE, NOT FOR NEW DESIGNS
NB - An external power supply is required. Does not include power supply.

 900-6208

iPORT Analog-Pro SD Development Kit. Includes 900-6209, power supply, Gigabit Ethernet desktop NIC, Ethernet cable, and eBUS SDK USB stick.
NB - GENERALLY AVAILABLE, NOT FOR NEW DESIGNS
NB – The eBUS SDK provided on the USB stick is unsupported, without access to maintenance releases, and does not provide any runtime licenses for your workstations. If any of these items are needed, recommend the purchase of the eBUS SDK Seat License (990-1024).
