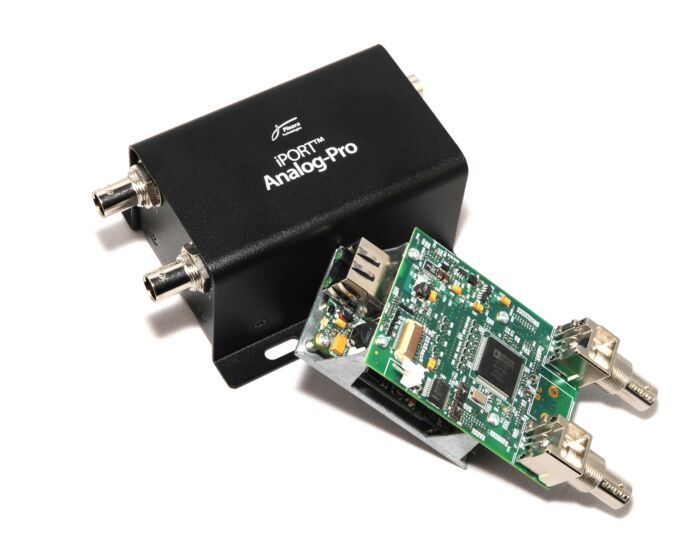

Pleora iPORT Analog-Pro (900-6209) Dual-Channel Analog GigE Vision External Frame Grabber
*Please note tariff fee is included in price*
Pleora iPORT Analog-Pro 900-6209 external frame grabber converts 1–2 channel SD analog composite (NTSC/PAL/CCIR/RS-170) to GigE Vision® over Gigabit Ethernet with low, predictable latency, GenICam™ compatibility, de-interlacing, RS-232, and GPIO.
Pleora iPORT Analog-Pro (900-6209) is an external frame grabber that converts standard-definition analog composite video into the GigE Vision® protocol—so your legacy analog cameras behave like native GigE Vision cameras on an IP network. It accepts one or two composite inputs (NTSC, PAL, CCIR, RS-170) and transmits both channels over a single Gigabit Ethernet link with low, consistent latency, letting you extend video up to 100 m point-to-point on standard CAT5e/6 (and farther using Ethernet switches).
Built for integrators and OEMs who need to reuse application-specific analog cameras without redesigning their system, the 900-6209 is GigE Vision and GenICam™ compliant for multi-vendor interoperability and includes Pleora’s eBUS™ SDK for faster deployment and reduced development risk. With built-in de-interlacing, RS-232, and GPIO, iPORT Analog-Pro supports video plus remote control in compact networked architectures—ideal for embedded PCs, SBCs, and distributed vision systems.
Features:
- Transmits two independent channels of analog composite video over GigE with low, consistent latency
- Built-in de-interlacing algorithms
- Supports square pixels (Q4 2013)
- RS-232 and GPIO to control external devices
- Available as enclosed units and OEM board sets
Applications:
- Machine Vision
- Robotics
- Factory Automation
- Sports Arena Applications
- Security
- Military
- Aviation
- Medical
iPORT™ External Frame Grabbers | •Highly reliable; up to 1 Gb/s data transfer rate with low, end-to-end latency |
eBUS™ SDK | •eBUS Universal Pro driver |
Gige Vision® and GenICam™ | •Fully-compatible firmware load •Guarantees delivery of all packets •Comprehensive data transfer diagnostics |
Video Standards | •NTSC, PAL, CCIR, RS-170 |
Pixel Formats | •8-bit Monochrome,YUV4:2:2 (packed) |
Deinterlacing Support | •Off •Weave •Line duplication |
Power | •Enclosed: Hirose 6-pin •OEM: 2-pin, 0.10” header |
Network | •RJ-45 female |
Video Interface | •2 x BNC female |
Serial and GPIO | •12-pin round, locking connector |
Gigabit Ethernet Based | •Low-cost, easy-to-use equipment •Compatible with 10/100/1000 Mb/s Ethernet networks •Supports IEEE 802.3 (Ethernet), IP, IGMP v.2, UDP and ICMP (ping) •Long reach: 100 m point-to-point, unlimited distance with Ethernet switches |
Multicast Compatibility | •Enables advanced distributed processing and control architectures |
Size (L x W x H) | •Enclosed: 113mm x 82mm x 51mm •OEM: 105 mm X 52 mm X 42 mm |
Operating temperature | •0 ºC to 40 ºC (OEM higher with thermal pad) |
Storage temperature | •-40°C to 85°C |
Power Supply | •5 V to16 V |
Power Consumption | •Maximum 4W (with both channels in use) |
ORDERING INFORMATION | |
900-6207 | iPORT Analog-Pro SD OEM Kit. Analog-Pro OEM board set assembled on a carrier bracket*, GPIO board assembly with flat-flex cable, and unsoldered 12-pin circular connector. |
900-6209 | iPORT Analog-Pro SD Enclosed. Analog-Pro in mountable enclosure. |
900-6208 | iPORT Analog-Pro SD Development Kit. Includes 900-6209, power supply, Gigabit Ethernet desktop NIC, Ethernet cable, and eBUS SDK USB stick. |
