KT&C KPC-DN6360NU (KPCDN6360NU) 750TVL Compact Box Camera (Discontinued)
SKU
KPC-DN6360NU
Quick Overview
*Product is Discontinued, Replacement Option: KPC-CN6360xU
1020 x 508 Total Pixels, 1/3″ 960H Interline CCD, Min. Illumination of 0.05 Lux (Color) / 0.003 Lux (B/W).

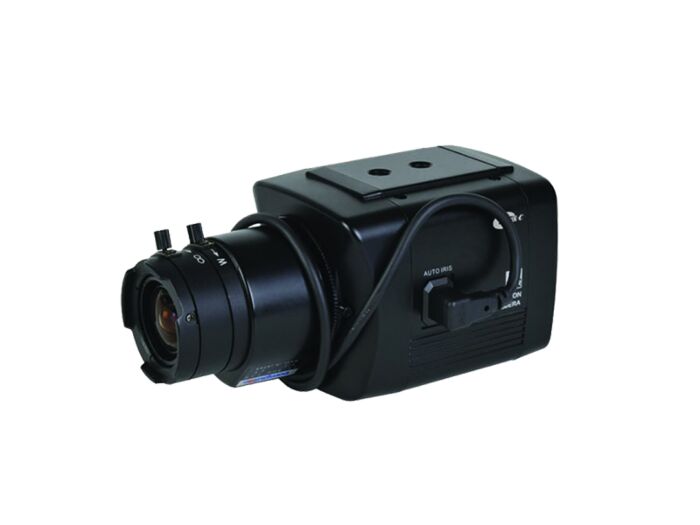

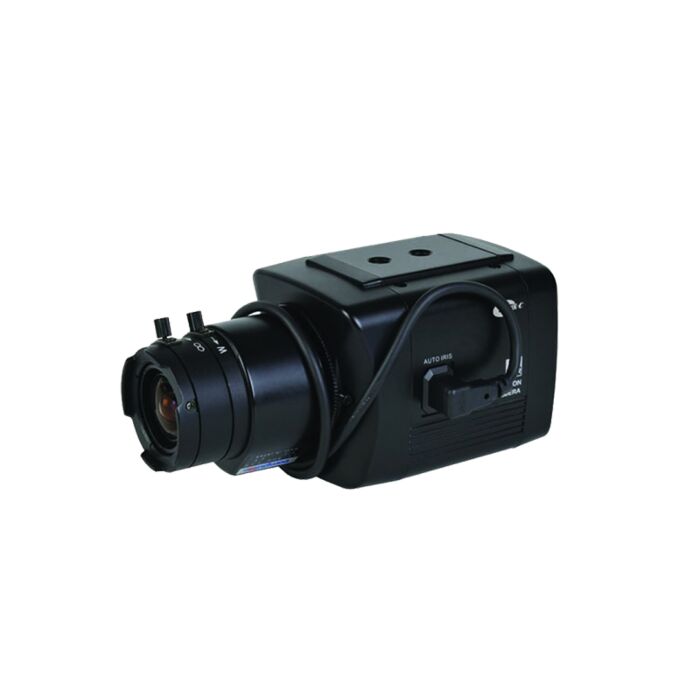

The KT&C KPC-DN6360NU 750TVL Compact Box Camera with 1/3" 960H Interline CCD and 750TVL Horizontal Resolution.
Features:
Applications:
| Image Sensor | 1/3″ 960H Interline CCD |
| Scanning System | 2 : 1 Interlace |
| Horizontal Resolution | 750TV Lines |
| Scanning Frequency | H: 15.734 (KHz), V: 59.94 Hz |
| Total Pixels | 1020(H) x 508(V) |
| Effective Pixels | 976(H) x 494(V) |
| Synchronization | Internal |
| Lens | C / CS Mount |
| Lens Type | Manual / DC |
| S/N Ratio | More than 50dB (AGC: Off) |
| Gamma | r = 0.45 |
| Min. Illumination | 0.05 Lux (Color) / 0.003 Lux (B/W) (30 [email protected]) |
| Shutter Speed | 1/60 ~ 1/100,000 sec |
| Day & Night | True Day & Night with ICR Mechanism |
| Day & Night Function | Auto, Color, B/W |
| Video Output Level | 1 Vp-p Composite (75 Ω) |
| On-Screen Display (OSD) | Built-in |
| BLC | Off, BLC, HLC |
| DNR | 2D DNR |
| ATR | On / Off (Level Adjustable) |
| White Balance | ATW, Push, User1, User2, Anti CR, Manual, Push-lock |
| Privacy Masking | 4 Zones |
| Mirror | On / Off |
| Motion Detection | 4 Zones |
| Other Function | Brightness, Contrast, Sharpness, HUE, Gain |
| Language Option | English, Japanese, German, French, Russian, Portuguese, Spanish |
| Operating Temperature | 14 ˚F ~ 122 ˚F (-10 ˚C ~ 50 ˚C) |
| Storage Temperature | -4 ˚F ~ 140 ˚F (-20 ˚C ~ 60 ˚C) |
| Humidity | Less than 80% RH |
| Power Supply | DC Type: DC 12V (±10%), Max. 130mA Dual Type: DC 12V (±10%), Max. 180mA / AC 24V (±10%), Max. 2.9W |
| External Control | RS-485 |
| Dimension | 2.3 x 2.3 x 2.7 inch (58 x 58 x 69 mm) |
| Weight | 0.4 lbs. (200 g) |
