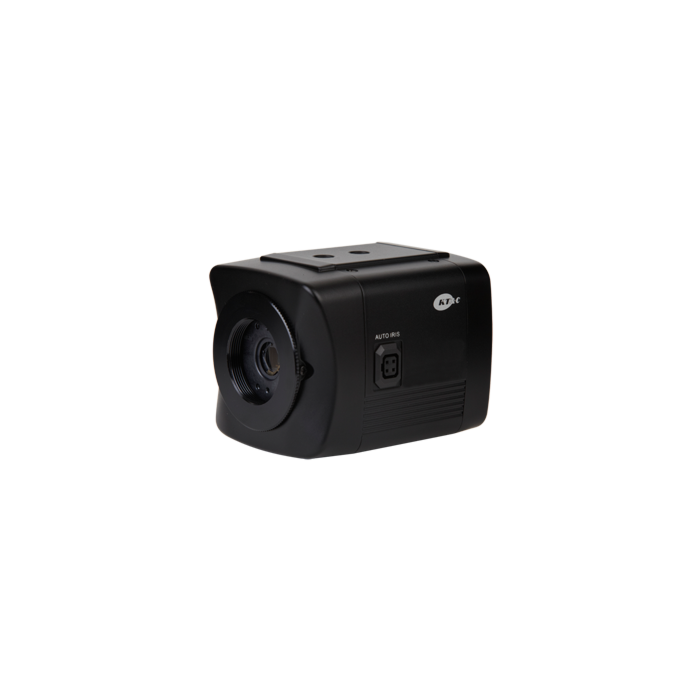

KT&C KPC-CN6360xU Analog Box Camera – 1/3.2" 1.3MP SONY STARVIS CMOS, 800TVL, CVBS, WDR, Mech. Day/Night, C/CS Lens Mount
The KT&C KPC-CN6360xU is a precision analog box camera engineered for surveillance environments requiring exceptional image clarity and performance. It features a 1/3.2” 1.3MP SONY STARVIS Exmor RS CMOS sensor that delivers 800TVL horizontal resolution and effective pixel dimensions of 1297(H) × 977(V). This progressive scan sensor ensures minimal motion blur and greater image detail capture under varied lighting. The camera outputs CVBS video at 1.0Vp-p (75Ω), compatible with NTSC/PAL standards, and supports C/CS-mount lenses to allow custom field-of-view and aperture flexibility based on the lens installed.
Built for challenging light conditions, the KPC-CN6360xU incorporates 138.1dB WDR (Wide Dynamic Range) for improved exposure balance and mechanical day/night switching via a true ICR filter for reliable 24/7 performance. Minimum illumination is rated at 0.2 Lux (30IRE, F2.0, AGC MAX), enhanced by advanced 2D-DNR noise reduction. Adjustable electronic shutter ranges from 1/60(50) to 1/100,000 sec with configurable AGC levels, white balance modes, image flip, gamma (γ=0.45), and sharpness (0–255). A rear OSD button provides easy access to all settings. Operating on 12VDC (130mA max) or dual-power 24VAC/12VDC input, this compact 58x58x70.5mm camera is optimized for industrial, commercial, and embedded vision systems.
Features:
- 1/3.2” 1.3MP SONY STARVIS Exmor RS CMOS sensor
- Horizontal resolution up to 800TVL
- CVBS 1.0Vp-p composite video output (75Ω)
- C/CS-mount lens support
- 138.1dB Wide Dynamic Range (WDR)
- Mechanical ICR true Day/Night switching
- 2D Digital Noise Reduction (2D-DNR)
- Electronic shutter: 1/60 ~ 1/100,000 sec
- Min. Illumination: 0.2 Lux (F2.0, AGC MAX)
- OSD control via rear button
- Image rotation and sharpness adjustments
- 12VDC (130mA max) or 24VAC power input
- Compact and lightweight design (58×58×70.5mm, ~180g)
- Multi-language OSD (EN, ES, PT, DE, RU, FR)
Applications:
- Indoor and outdoor analog surveillance
- Industrial machine vision setups
- Legacy system retrofitting
- Embedded vision systems
- Security monitoring with high light variation
- Low-light analog video capture environments
| Image Sensor | 1/3.2" Exmor RS Progressive Scan SONY STARVIS CMOS |
| Effective Pixels | 1.27MP 1297(H) x 977(V) |
| Max. Video Resolution | Horizontal 800TV Lines |
| Lens | C/CS Mount lens |
| FOV | Depend on lens |
| F-Stop | Depend on lens |
| Min. Illumination | 0.2 Lux (30IRE, F2.0, AGC MAX) |
| Gamma | γ=0.45 |
| IR LEDs | - |
| IR Range | - |
| White Balance | ATW / PUSH / USER1 / USER2 / MANUAL / PUSH LOCK |
| Dynamic Range | WDR / ATR / OFF |
| BLC | OFF / HLC / BLC |
| WDR Level | 138.1dB |
| Electronic Shutter Speed | AUTO or 1/60(50)~1/100,000 |
| Digital Slow Shutter (DSS) | - |
| Auto Gain Control (AGC) | MIN, 6, 12, 18, 24, 30, 36, 42, 48, MAX |
| Day & Night | AUTO/MANUAL (Mechanical ICR True D&N) |
| Noise Deduction | 2D-DNR (Y/C, Y, C, OFF) |
| Motion Detection | - |
| Privacy Mask | - |
| Image Rotation | OFF, H-FLIP, V-FLIP, HV-FLIP |
| Defog | OFF, AUTO |
| Sharpness | 0-255 |
| OSD Control | Rear OSD button |
| Language | English, Spanish, Portuguese, German, Russian, French |
| Video Output Mode | CVBS(1.0Vp-p Composite 75Ω) NTSC/PAL |
| IP Rating | - |
| Operating Temperature | -10℃~+50℃ (Humidity less than 80%) |
| Storage Temperature | -20℃~+60℃ (Humidity less than 80%) |
| Dimension (mm) | 58X58X70.5mm |
| Weight | Approx. 180g |
| Power Source | 12VDC(±10%) |
| Power Consumption | 12VDC(±10%), 130mA max. |
| Option Power Source | DUAL POWER (24VAC/12VDC) |
| Option Power Consumption | 24VAC(±10％), Max.2.9W 12VDC(±10％), Max.180mA |
| Lens | C/CS Mount Lens |
