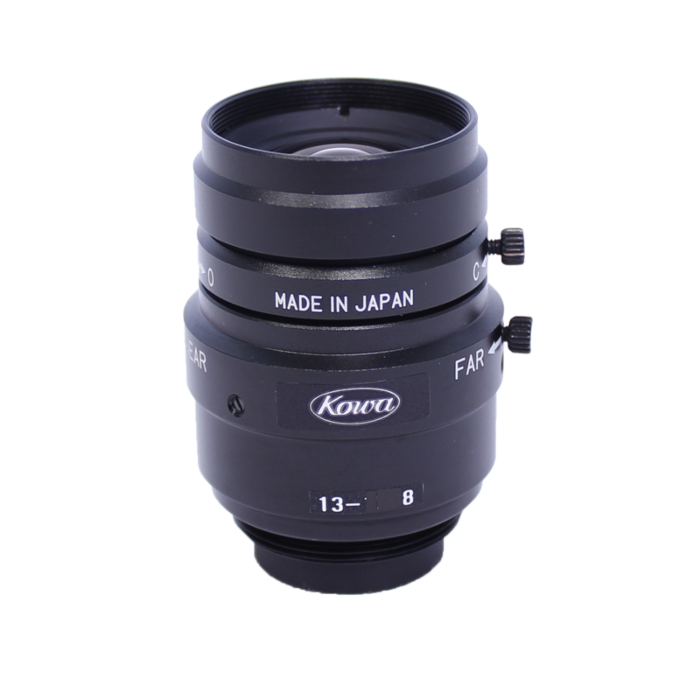

Kowa LM8JCM | 2/3" 8mm Megapixel Lens (Discontinued)
SKU
LM8JCM
Quick Overview
*Product is discontinued, Replacement Option: LM8JC1MS
8mm, 2/3", Megapixel Industrial FA Lens.
This series of megapixel lenses offers super high resolution and utilizes the floating mechanism system. The new wide angle 5mm megapixel lens will pave the way for new possibilities in machine vision systems.It features locking screws for iris and focus capabilities and a durable metal mount and housing.
Features:
Applications:
| Focal Length (mm) | 8 |
| Lens Type | Fixed |
| Image Size (mm) | 2/3" (Φ11) |
| Iris Range (F-stop) | F1.4 ~ Close |
| Focusing Range (m) | 0.10 ~ ∞ |
| Iris Control | Manual |
| Focus Control | Manual |
| Shooting Range at M.O.D. (mm) | 117.2(H) x 88(V) |
| Angle of View 2/3" (°) | 56.5 x 43.9 |
| Angle of View 1/2" (°) | 42.6 x 32.5 |
| Angle of View 1/3" (°) | 32.5 x 24.6 |
| Resolution (Center, Corner) | 120lp/mm, 100lp/mm |
| TV Distortion (%) | -0.6 |
| Back Focus in Air (mm) | 9.74 |
| Mount | C-Mount |
| Filter Thread Size (mm) | M27 x P0.5 |
| Minimum Focus Distance (m) | 0.1 |
| Flange Back in Air (mm) | 17.526 |
| Front/Rear Effective DIA (mm) | Φ17.5, Φ15.6 |
| Exit Pupil | 225.6 |
| Size (mm) | Φ34 x 41.6 |
| Weight (g) | 90 |
| Temperature Range (°C) | -10 ~ +50 |
