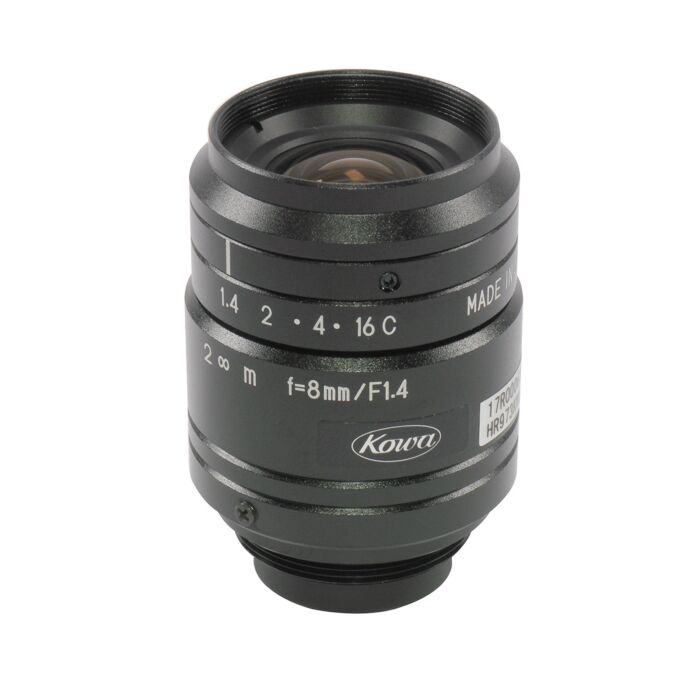

Kowa LM8JC1MS | 2/3" 8mm 2MP C-Mount Lens
Exceptional Clarity and Precision: Kowa LM8JC1MS 8mm 2MP C-Mount Lens
The Kowa LM8JC1MS 2/3" 8mm 2MP C-Mount lens is engineered to deliver outstanding performance in machine vision and industrial applications. Designed specifically for sensors with a pixel size of 4.5μm, such as the OnSemi Python500, e2v EV76C570, and Aptina MT9M131, this lens stands out with its remarkable clarity and low distortion. The lens features a manual iris control with a broad range of F-stops, allowing users to achieve precise adjustments for optimal image quality. With a focal length of 8mm, it offers excellent resolution, providing 120 lp/mm at the center and 100 lp/mm at the corners, making it perfect for high-resolution tasks.
The LM8JC1MS lens ensures very good brightness even in peripheral areas, enhancing visibility and detail in various industrial settings. Its robust design, compact size (Ø34 X 41.6 mm), and low weight (90g) make it a versatile choice for diverse applications. Suitable for use in temperatures ranging from -10°C to +50°C, this lens excels in demanding environments, providing reliability and superior image performance.
Features:
- Focal Length: 8mm
- Sensor Size: 2/3"
- Pixel Size: 4.5μm
- Manual Iris Control with F-Stop Range: 1.4
- Resolution: 120 lp/mm (Center), 100 lp/mm (Corner)
- Very Low Distortion: -0.6%
- Bright Peripheral Vision
- Compact and Lightweight: Ø34 X 41.6 mm, 90g
- Temperature Range: -10°C to +50°C
Applications:
- High-Resolution Imaging
- Precision Inspection Systems
- Automated Quality Control
- Optical Character Recognition
- Robotics Vision Systems
- High-Speed Production Lines
| Focal Length (mm) | 8 mm |
| Sensor Size | 2/3" |
| Pixel Size (µm) | 4,5 |
| Mount | C-Mount |
| Iris Control | Manual |
| Iris Range (F-Stop) | 1,4 |
| Lens Type | Fixed Focal Lens |
| Wavelength Range | VIS (380nm - 780nm) |
| Focusing range (m) | 0,1 - ∞ |
| Focus Control | Manual |
| Shooting range at MOD, horizontal (mm) | 120.3 |
| Shooting range at MOD, vertical (mm) | 90.0 |
| Resolution (Center, Corner) | 120lp/mm,100lp/mm |
| Megapixel | 2 |
| TV Distortion (%) | -0,6 |
| Back Focus in Air (mm) | 9,74 |
| Filter Size (mm) | M27 x P0,5 |
| Size (mm) | Ø34 X 41,6 |
| Weight | 90 |
| Temperature Range | -10°C - +50°C |
| Series | JC1MS |
| Application | Machine Vision |
