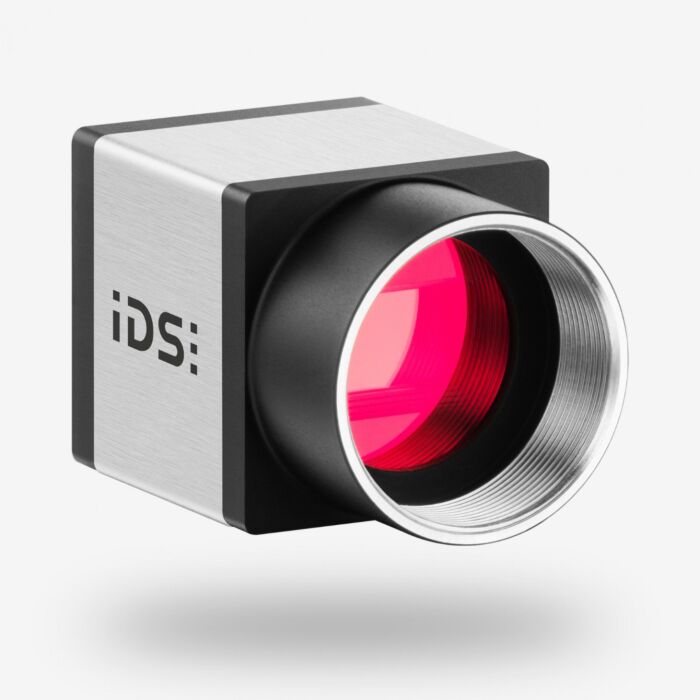

IDS Imaging U3-3800CP-M-GL Rev.2.2 1" USB3 Monochrome Housed Camera

Exceptionally high-resolution images with low noise levels ensure the capture of even smallest details: the light-sensitive IMX183 Rolling Shutter CMOS Sensor from Sony's STARVIS series provides outstanding image quality even under low light conditions thanks to its BSI technology ("back-side-illumination").
SKU
U3-3800CP-M-GL Rev.2.2

With a resolution of 20.44 MPix (5536 x 3692 px) at 2.4 µm pixels, it delivers 19.5 fps in the USB3 Vision industrial camera U3-3800CP Rev.2.2.

The camera is therefore ideally suited for complex image analysis in applications such as surface and display inspections, medical technology or traffic applications.

The U3-3800CP Rev.2.2 is available in monochrome or color.

This camera model is supported by IDS Vision firmware 2.20 and higher.

Features:

  • 100% quality tested
  • Plug & Play
  • uEye+ software support
  • USB3 Vision standard
  • SuperSpeed USB 5 Gbps
  • CMOS sensor
  • C Lens Mount
  • Color Correction In Camera
  • Integrated Image Memory With 128 MB
  • Industrial Standard: 29 x 29 x 29 mm
  • 3 years warranty


Applications:

  • Machine Vision
  • Metrology
  • Surface Inspection
  • Traffic and Transport (ITS)
  • Mechanical Engineering
  • Medical Technology (and laboratory automation)
Part # U3-3800CP-M-GL Rev.2.2: AB12832
Shutter Rolling Shutter
Sensor Characteristic Linear
Readout Mode Progressive Scan
Pixel Class 20 MP
Resolution 20.44 Mpix
Resolution (H x V) 5536 x 3692 Pixel
Aspect Ratio 3:2
ADC 12 bit
Color Depth (Camera) 12 bit
Optical Sensor Class 1"
Optical Size 13.286 mm x 8.861 mm)
Optical Sensor Diagonal 15.97 mm (1/1")
Pixel Size 2.4 µm
Manufacturing Sony
Sensor Model IMX183CLK-J
Gain (master/RGB) -/-
AOI Horizontal Same Frame Rate
AOI Vertical Same Frame Rate
AOI Image Width / Step Width 256 / 16
AOI Image Height / Step Width 1 / 1
AOI Position Grid (Horizontal/Vertical) 16 / 1
Binning Horizontal Increased Frame Rate
Binning Vertical Increased Frame Rate
Binning Method M/C Automatic
Binning Factor 2 / 4 / 8
Subsampling Horizontal Same Frame Rate
Subsampling Vertical Same Frame Rate
Subsampling Method M/C automatic
Subsampling Factor 2, 4, 8
