IDS Imaging U3-3800CP-M-GL Rev.2.2 1

IDS Imaging U3-3800CP-M-GL Rev.2.2 1" USB3 Monochrome Housed Camera

IDS Imaging U3-3880LE-M-GL Rev.1.2 1/3

IDS Imaging U3-3880LE-M-GL Rev.1.2 1/3" USB3 Monochrome Housed Camera

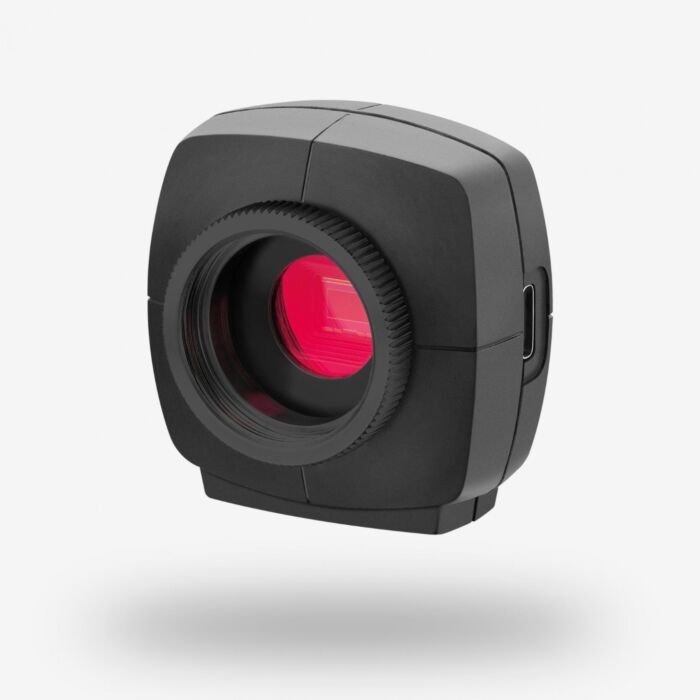

IDS Imaging U3-3880LE-C-HQ Rev.1.2 1/3" USB3 Color Housed Camera

The USB3 Vision industrial camera U3-3880LE Rev.1.2 with the rolling shutter CMOS sensor Sony IMX178 offers a very high resolution of 6.41 MP (3088 x 2076 px px), which is ideal for visualization tasks in microscopy and as a cost-efficient option for intelligent traffic monitoring systems (ITS).
U3-3880LE-C-HQ Rev.1.2

The sensor from the Sony STARVIS series features BSI technology ("back-side-illumination") and is one of the most light-sensitive sensors with a low dark current close to the SCMOS range (Scientific CMOS). It provides impressive results even under extremely low light conditions. In combination with our USB3 Vision industrial cameras, the Sony IMX178 delivers frame rates of up to 54.0 fps at full resolution. Thanks to the 1/1.8" sensor size, a wide range of C-mount lenses is available for the U3-3880LE Rev.1.2 camera model.

Special functions such as long-time exposure also extend the range of possible applications.

The U3-3880LE Rev.1.2 is available in both monochrome and colour variants.


  • 100% quality tested
  • Plug & Play
  • uEye+ software support
  • USB3 Vision standard
  • SuperSpeed USB 5 Gbps
  • CMOS sensor
  • C Lens Mount
  • CS Lens Mount
  • USB Type-C Connector
  • 3 years warranty


  • Machine Vision
  • Traffic and Transport (ITS)
  • Medical Technology (and laboratory automation)
  • Metrology
  • Astronomy
Part # U3-3880LE-C-HQ Rev.1.2: AB03466
Shutter Rolling Shutter / Global Start Shutter
Sensor Characteristic Linear
Readout Mode Progressive Scan
Pixel Class 6 MP
Resolution 6.41 Mpix
Resolution (H x V) 3088 x 2076 Pixel
Aspect Ratio 3:2
ADC 12 bit
Color Depth (Camera) 12 bit
Optical Sensor Class 1/1.8"
Optical Size 7.411 mm x 4.982 mm
Optical Sensor Diagonal 8.93 mm (1/1.79")
Pixel Size 2.4 µm
Manufacturing Sony
Sensor Model IMX178LQJ-C
Gain (master/RGB) 14.5x/5x
AOI Horizontal Same Frame Rate
AOI Vertical Increased Frame Rate
AOI Image Width / Step Width 256 / 8
AOI Image Height / Step Width 2 / 2
AOI Position Grid (Horizontal/Vertical) 8 / 2
Binning Horizontal Increased Frame Rate
Binning Vertical Increased Frame Rate
Binning Method Color
Binning Factor 2
Subsampling Horizontal Same Frame Rate
Subsampling Vertical Same Frame Rate
Subsampling Method M/C automatic
Subsampling Factor 2, 4, 8
