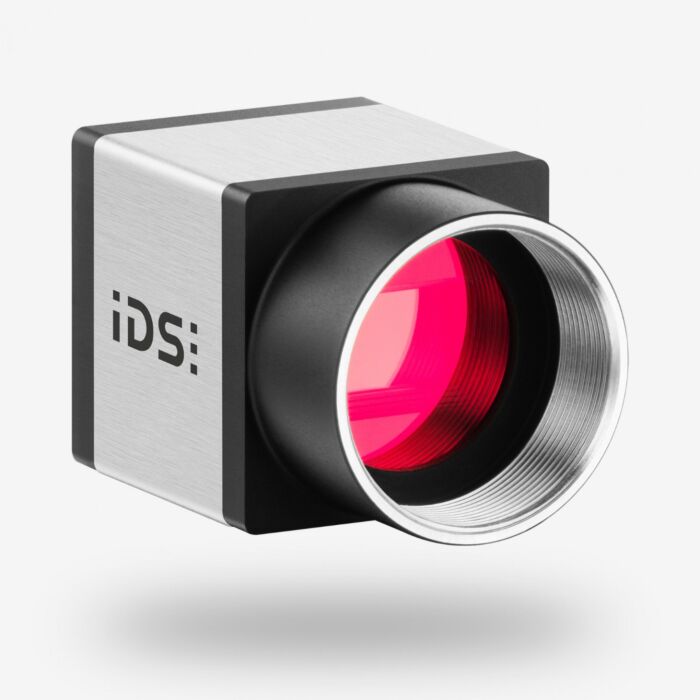

IDS Imaging U3-3800CP-C-HQ Rev.2.2 1" USB3 Color Housed Camera
Exceptionally high-resolution images with low noise levels ensure the capture of even smallest details: the light-sensitive IMX183 Rolling Shutter CMOS Sensor from Sony's STARVIS series provides outstanding image quality even under low light conditions thanks to its BSI technology ("back-side-illumination").
SKU
U3-3800CP-C-HQ Rev.2.2
With a resolution of 20.44 MPix (5536 x 3692 px) at 2.4 µm pixels, it delivers 19.5 fps in the USB3 Vision industrial camera U3-3800CP Rev.2.2.
The camera is therefore ideally suited for complex image analysis in applications such as surface and display inspections, medical technology or traffic applications.
The U3-3800CP Rev.2.2 is available in monochrome or color.
This camera model is supported by IDS Vision firmware 2.20 and higher.
Features:
- 100% quality tested
- Plug & Play
- uEye+ software support
- USB3 Vision standard
- SuperSpeed USB 5 Gbps
- CMOS sensor
- C Lens Mount
- Color Correction In Camera
- Integrated Image Memory With 128 MB
- Industrial Standard: 29 x 29 x 29 mm
- 3 years warranty
Applications:
- Machine Vision
- Metrology
- Surface Inspection
- Traffic and Transport (ITS)
- Mechanical Engineering
- Medical Technology (and laboratory automation)
| Part # | U3-3800CP-C-HQ Rev.2.2: AB12874 | |
| Shutter | Rolling Shutter | |
| Sensor Characteristic | Linear | |
| Readout Mode | Progressive Scan | |
| Pixel Class | 20 MP | |
| Resolution | 20.44 Mpix | |
| Resolution (H x V) | 5536 x 3692 Pixel | |
| Aspect Ratio | 3:2 | |
| ADC | 12 bit | |
| Color Depth (Camera) | 12 bit | |
| Optical Sensor Class | 1" | |
| Optical Size | 13.286 mm x 8.861 mm) | |
| Optical Sensor Diagonal | 15.97 mm (1/1") | |
| Pixel Size | 2.4 µm | |
| Manufacturing | Sony | |
| Sensor Model | IMX183CQK-J | |
| Gain (master/RGB) | -/- | |
| AOI Horizontal | Same Frame Rate | |
| AOI Vertical | Same Frame Rate | |
| AOI Image Width / Step Width | 256 / 16 | |
| AOI Image Height / Step Width | 2 / 2 | |
| AOI Position Grid (Horizontal/Vertical) | 16 / 2 | |
| Binning Horizontal | Increased Frame Rate | |
| Binning Vertical | Increased Frame Rate | |
| Binning Method | M/C Automatic | |
| Binning Factor | 2 / 4 / 8 | |
| Subsampling Horizontal | Same Frame Rate | |
| Subsampling Vertical | Same Frame Rate | |
| Subsampling Method | M/C automatic | |
| Subsampling Factor | 2, 4, 8 | |
