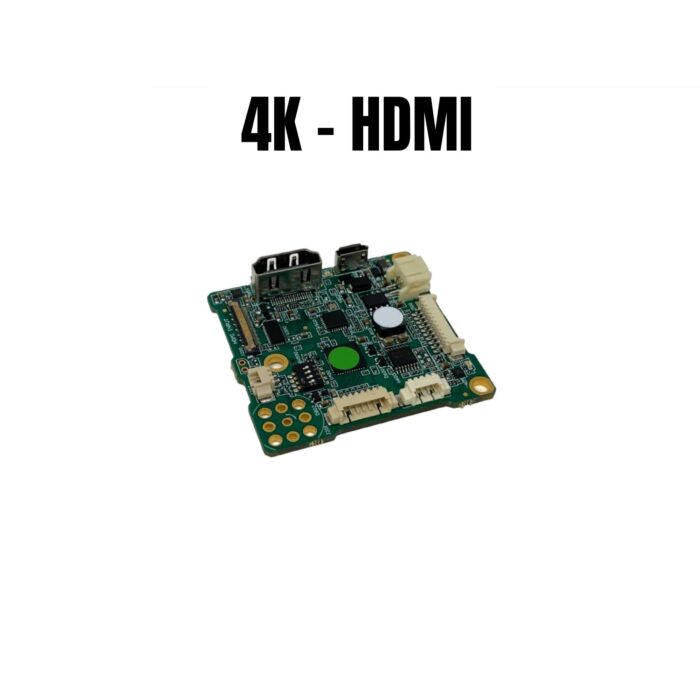

Aegis HDMI-4K-SYNC Interface Board

Introducing the latest edition to our 4k interface board range: The HDMI 4K Ext Sync has been specifically designed for Sony FCB-ER8530, FCB-ER8550, FCB-ES8230 and New FCB-EW9500H 4k cameras. This high performance new HDMI 4k module will brings 4k possibility to a variety of application where performance, color image quality, and space is a premium.
SKU
HDMI-4K-SYNC

The new HDMI 4k module will bring 4K possibilities to a variety of application where performance, color image quality, and space is a premium. The interface board supports 4K video format in Ultra HD resolution (3840 x 2160) with output flexibility. Depending on your application and configuration, you can select the format you need from HD to 4K. Highly compact, and very easy to connect, the HDMI-4K-SYNC can be rear-mounted on Sony 4K range of cameras without hampering the mechanical integration.


Features:

  • Designed for Sony FCB-ER8300, FCB-ER8530, FCB-ER8550
  • Supports External Synchronization input (for FCB ER-8550)
  • Drive HDMI cable up to 20m (65.61ft)
  • Supports 4k video resolution – up to 2160p25/29.97Hz
  • Supports Full HD resolution
  • Serial communication TTL or RS232
  • USB micro B for communication & update
  • Camera control through VISCA and GPIO
  • Video format selection by DIP switches
  • 5V 1A switchable power output for external devices
  • Low power sleep mode for mobile applications
Digital video output HDMI 1.4b
External sync input Molex 2 pts (J202) or coax connector (option not natively mounted)
Video Format Full HD – 4K resolution up to 3840x2160 29.97p
Video format configuration DIP Switches
Camera communication & settings VISCA – RS232 / TTL level
Power Supply 6 to 12 VDC 0,2W (sleep mode), 4.1W (running mode)* with camera set in 4k30p
Operating Temperature Range -10°C to 50°C
Storage Temperature Range -20°C to 60°C
Regulation EMC FCC part 15, PCB : UL 94 V0
Dimension 48 (H) x 45 (W) x 11 (D)
