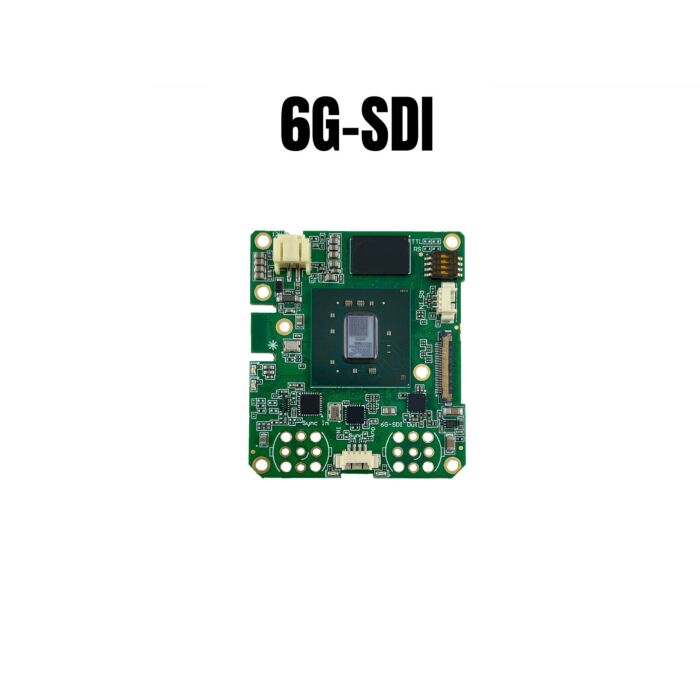

Aegis 4K-6GSDI-SYNC Interface Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

The Aegis 4K-6GSDI-SYNC External Sync Interface Board is designed to integrate seamlessly with Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras, providing a robust solution for applications requiring high-definition video capture and synchronization. This interface board supports 6G-SDI (SMPTE ST-2081) digital video output, capable of delivering up to 2160p resolution at frame rates of up to 29.97Hz. It facilitates advanced video functions, including support for 4K resolution (up to 2160p25/29.97Hz), and offers a range of customization through its DIP switch configuration for video format settings. The interface board operates with a wide input voltage range of 6-12VDC, drawing 6W of power, which includes the camera's power requirements. Built for a wide operating temperature range from 0°C to 60°C, this board is suitable for industrial and outdoor applications. It is compliant with EMC FCC part 15 regulations, and its PCB is UL 94 V0 rated for flame resistance, ensuring both reliability and safety in various environments.

The Aegis interface board supports external synchronization with a Molex connector for sync input, and optional external sync output, offering flexibility in synchronized video setups. The RS232 or TTL-level VISCA communication interface allows for control and configuration of both the board and the connected camera, making it ideal for integration into professional surveillance, robotics, or live broadcast systems. The board is compact, with dimensions of 50mm in height and 57.5mm in width, while maintaining a sustainable design with options for different connectors, including the standard BNC and optional MCX. This versatile board is compatible with high-performance cameras such as the Sony FCB-ER9500 and Sony FCB-ER8530, making it a reliable choice for high-quality, synchronized video capture in various technical applications such as video streaming, broadcast, remote surveillance, and industrial automation.

Features:

• 6G-SDI (SMPTE ST-2081) digital video output
• Supports 4k resolution – up to 2160p25/29.97Hz
• Support External Sync Input
• Support External Sync Output (optional)
• Board and camera control via RS232/TTL
• BNC connector- MCX connector option
• Add-on connector for custom functions
• Compact & sustainable

Applications:

• Broadcasting and Live Streaming
• Surveillance and Security Systems
• Robotics
• Video Conferencing and Remote Communication
• Medical Imaging and Telemedicine
• Sports and Event Recording
• Aerial Surveillance
• Inspection and Quality Control
• Virtual Reality and Augmented Reality

Compatible With:

• Sony FCB-ER9500
• Sony FCB-ER8530
