Aegis 4K-6GSDI-MCX Interface Board for Sony FCB-ES8320, FCB-ER8530, & FCB-ER8550 (Discontinued)
SKU
Aegis 4K-6GSDI-MCX
Quick Overview
*Product is discontinued, Replacement Option: 4K-6GSDI-SYNC
Introducing the latest edition to our 4K module range: the 6G-SDI External Sync brings in a convenient and compatible for factor 4K possibility to a variety of applications where quality and performance is a premium.

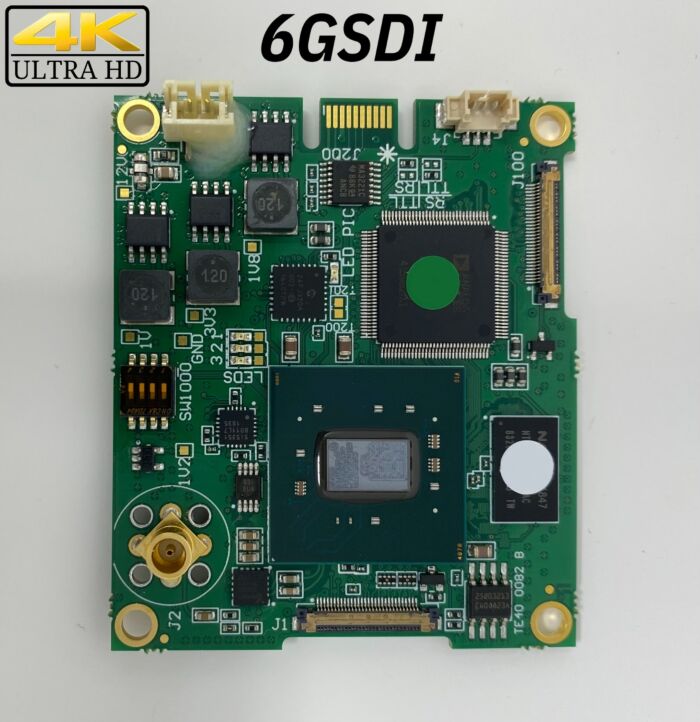

Aegis 4K-6GSDI-MCX External Sync Interface Board for Sony FCB-ES, FCB-ER Series Cameras
Compatible With:
- Sony FCB-ES8320
- Sony FCB-ER8530

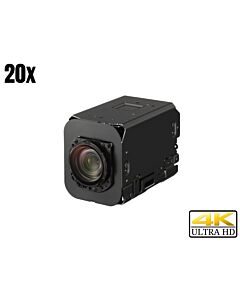

- Sony FCB-ER8550
| Digital Video Ouput | 6G-SDI - SMPTE - ST2081 |
| Video Format | 2160p25/29.97 Hz, 1080p50/59.94 - 1080p25/29.97, 720p 50/59.94 |
| Video output standard configuration | Micro Switches |
| Camera communication & setting | RS232, RX, TX, VISCA |
| SDI Output Connector | BNC (SMB, MCX : OPTIONS) |
| Power | 6 to 12 VDC, 6 W (including camera) |
| Environmental | 0°C to 60°C |
| Storage | -20°C to 60°C |
| Regulation | EMC FCC part 15, PCB : UL 94 V0 |
| Dimensions (mm) | 65 (H) x 55 (L) x 20 (P) |
