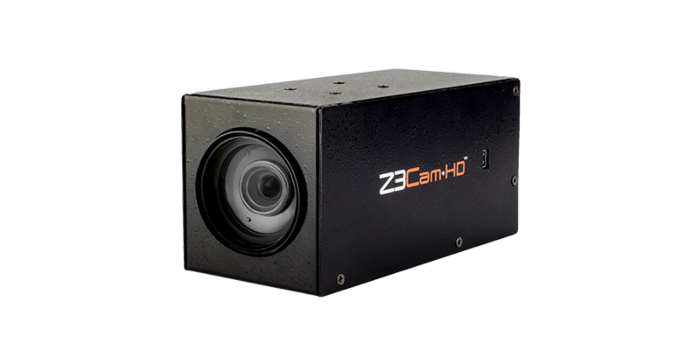

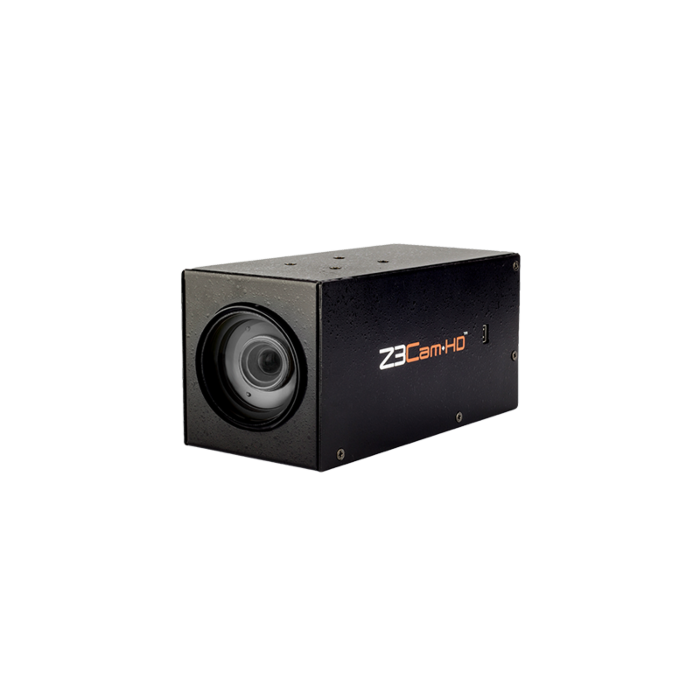

Z3 Technology Z3CAM-HD HEVC HD IP Camera
The Z3CAM‑HD is a rugged Full HD H.265/H.264 IP NDAA Compliant camera system engineered for low‑light and backlight performance. Designed for industrial inspection, remote monitoring, and aerial imaging, it provides smooth transitions from wide‑area coverage to precision close‑ups through its advanced 30× optical zoom and real‑time HEVC streaming.
Built for reliability in demanding environments, the Z3CAMHD supports Power over Ethernet (PoE) for simplified integration and Sony VISCA™ control over IP with ONVIF Profile S compliance, ensuring compatibility with modern video management systems. The camera incorporates auto‑focus, spherical privacy masking, and visibility enhancement, delivering crystal‑clear imagery in complex lighting conditions.
Features:
- Real-Time HEVC/H.265 HD Video Streaming
- Full HD 30x Optical Zoom
- Power over Ethernet (PoE)
- Supports Sony VISCA™ Camera Control over IP and ONVIF Profile S
- Easy-to-Use HTTP-Based Control Interface
Applications:
- UAV
- Inspection
- Remote Monitoring
- Security and Surveillance
- Video Conferencing
- Drones
| Camera Features | • Full HD 30x optical zoom • 2D/3D noise reduction algorithm for high frequency and high detail areas • Visibility enhancer auto ICR (Day and Night) • High sensitivity image processor • Spherical privacy zone masking • Leverages Sony’s FCB-EV7520 HD camera block |
| Streaming Features | • H.265, H.264 or MJPEG encoded video over IP with no distance limitations • Supports HD resolutions up to 60 fps (1080p, 720p, and lower) • Outputs RTP, RTSP, MPEG-2 TS or RTMP* • Simultaneously stream and/or record in multiple resolutions and bitrates • Supports unicast and multicast streaming • Compatible with Wowza Streaming Engine™* and YouTube Live* |
| Control | • IP control and configuration • HTTP-based control Interface • Pass Sony VISCA™ camera control commands over IP • Supports ONVIF® Profile S with Media Services 2.0 |
| Recording | Compressed USB recording |
| Decoder Options | Compatible with ZEUS® decoders* (also available from Z3 Technology) PC decoding |
| Interfaces | Gigabit Ethernet, USB 2.0, Micro-HDMI Output, Audio Input and Composite Output |
| Supported Resolutions | 60, 59.94, 50, 30, 29.97, 25 @1080p and 720p |
| Power | PoE or 12V DC |
| Power Consumption | 7.5W typical while encoding H.265/HEVC video |
| Mount | 1/4 20 UNC tripod screw hole on bottom of unit |
| Dimensions | 128 x 62 x 62 mm (5.0 x 2.4 x 2.4 in) |
| Weight | 650 g (1.4 lbs) |
| Package Contents | Z3Cam-HD camera and 12V Power Supply |
| Adding Components | Add a wifi USB dongle for wireless connectivity** |
