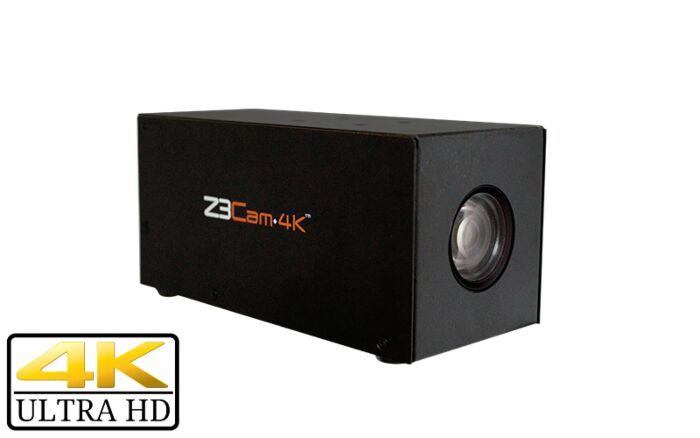

Z3 Technology Z3CAM-4K - Z8530 H.265 4K IP Camera

SKU
Z3Cam-4k -Z8530-Z3
Quick Overview
The Sony Block Camera IP Converter, Z3Cam-4K™ H.265/H.264 IP camera (Z8530) delivers 4K Ultra-HD streaming over GigE PoE networks. Z3 Technology converts Sony FCB-ER8530 block camera signals to IP (like SDI/HDMI to IP workflows) with lowest latency (<250ms), bandwidth, and power via H.265 compression.

The Z3 Technology Z3CAM-4K NDAA Compliant camera delivers unmatched clarity in high-motion and low-light environments with 30x optical zoom and integrated auto focus. This robust system excels in virtual reality imaging, high-detail data analytics, broadcast production, medical endoscopy, and advanced surveillance—capturing every detail in stunning 4K resolution to future-proof your setup.

Upgrade your capabilities with the Z3CAM4K, featuring superior H.265 compression for efficient bandwidth, seamless IP network integration, and reliable performance in extreme conditions. Trusted by industry leaders for durability and exceptional image quality, Z3 Technology's powerhouse sets the new standard for professional 4K imaging in security, AI analytics, and beyond.

Features:

  • Real-Time 4K Video Streaming
  • 30x zoom using Sony’s Super Resolution Zoom
  • Stream 4K and HD resolutions
  • Power over Ethernet (PoE)
  • Supports Sony VISCA™ camera control over IP
  • ONVIF® Profile S compliant

Applications:

  • high movement and low light conditions
  • virtual reality imaging
  • high detail data analytics
  • broadcast
  • medical
  • surveillance
VIDEO OUTPUTS
Composite: 1

Encode Video Codecs:
  • H.265
  • H.264
  • MJPEG
Audio Interfaces:
  • Microphone Input
INTERFACES
GigE: 1 (PoE)
USB: 1 (2.0)
RS-232: RS-485

SOFTWARE

Output Formats:
  • Up to 4K Ultra HD
Output Formats:
  • RTP
  • RTMP
  • MPEG-2 TS
  • TS File
Features
Camera:
  • • 30x zoom using Sony’s Super Resolution Zoom, 20x Optical
  • • Noise reduction algorithm for high frequency and high detail areas
  • • Visibility enhancer ICR (Day and Night)
  • • High sensitivity image processor
  • • Leverages Sony’s FCB-ER8530 4K camera block
  • • Mount to any standard tripod (1/4 20 UNC screw hole on bottom of unit)

Streaming:
  • • H.265/HEVC or H.264 encoded video over IP with no additional equipment and no distance limitations
  • • Low latency, 250 ms or less
  • • Supports 4K UHD and HD resolutions simultaneously (2160p30 and 720p30)

Control:
  • • IP Control and Configuration
  • • Z3 web interface
  • • Pass Sony VISCA™ Camera Control Commands over IP
  • • Supports ONVIF® Profile S with Media Services 2.0

Recording
  • Compressed USB Recording
