Z3 Technology ZCube-60 Compact HDMI 4Kp60 Encoder
Engineered and Made in the USA, the Z3 Technology ZCube-60 sets a new standard for high-performance industrial HDMI 4Kp60 video encoding. Designed for reliability, efficiency, and cybersecurity, this compact encoder is ideally suited for machine vision, defense, broadcast, and unmanned systems requiring low-latency, high-quality 4K video streaming.
The ZCube-60 features simultaneous H.265/HEVC and H.264 encoding, enabling seamless integration into new and legacy workflows. Its low power consumption and ultra-low latency make it ideal for embedded, field, and factory applications where precision video data is critical.
Control and integration are effortless with multiple interfaces, including HTTP/HTTPS Web GUI, API, ONVIF, SSH, and Serial. Operators benefit from live video preview and the ability to record directly to USB storage or network filesystems, simplifying data capture and review.
Built-in SRT protocols (Caller, Listener, Rendezvous modes) with encryption support ensure secure and reliable video transmission over public or private networks. Compliance with ONVIF Profile S and T, FCC, CE, TAA, and NDAA standards guarantees interoperability and peace of mind for government and industrial users alike.
Proudly Made in America and NDAA compliant, the ZCube-60 delivers the performance, security, and quality demanded by professional imaging ecosystems.
Features:
- Low latency, low power consumption
- Simultaneous encode of H.265/HEVC and H.264
- Control via Web GUI, API, ONVIF, or SSH/Serial
- Live video preview
- Record to USB or Network File System
- SRT Modes Supported: Caller Sender, Rendezvous, and SRT Encryption
Applications:
- Aerospace
- Inspection
- Medical
- Robotics
- Security
- Surveillance
- Unmanned Systems: UAV, UGV, and USV

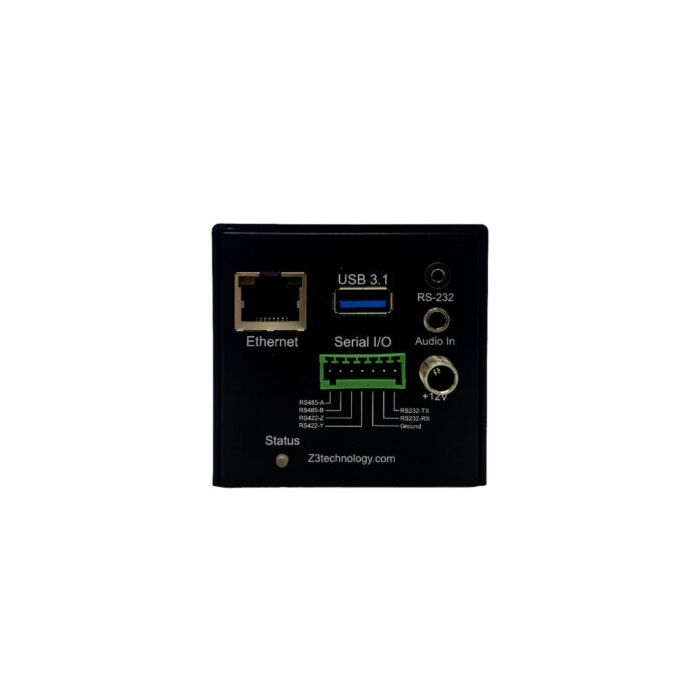

| Interfaces | Locking HDMI Input, Locking HDMI Output, PoE, Gigabit Eth-ernet, USB 3.1, Mic Line Level Audio Input, RS-232, Serial I/O (RS-485, RS-422, RS-232) |
| Video Codecs | H.265/HEVC, H.264 and MJPEG |
| Encoding Resolutions | 2160p60, 2160p30, 1080p and 720p (up to 60fps) Laptop Vesa Modes (up to 85fps) |
| Output Formats | RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, and SRT HDMI Output (up to 4Kp30) |
| Streaming | •Simultaneously stream & record each channel •Send up to 3 simultaneous streams •When using 3 streams max resolution of each stream |
| Features | •Low latency, Low Power •Cyber Secure Features Available •Simultaneous encode of H.265/HEVC and H.264 •Control via HTTP/HTTPS web GUI, API, ONVIF or SSH/Serial •Live Video Preview |
| ZCube Size | 32 x 62 x 58 mm (1.3 x 2.4 x 2.3 in) |
| ZCube Weight | 153g |
| ZCube Power Input | 12V DC or PoE 802.3af/at class 0 |
| ZCube Power Consumption | 4.5W typical while encoding 4Kp60 |
