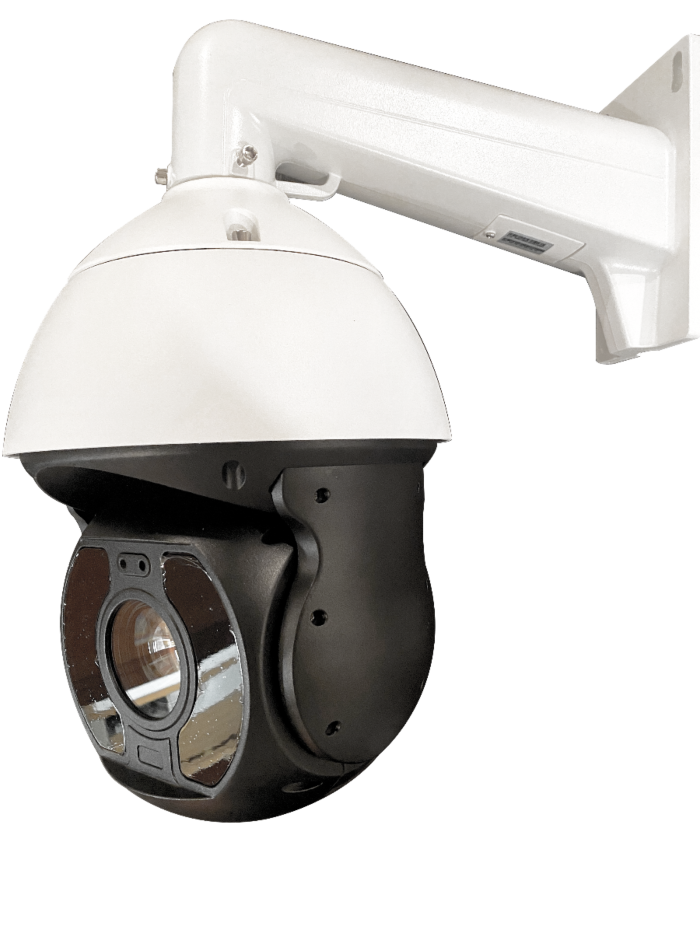

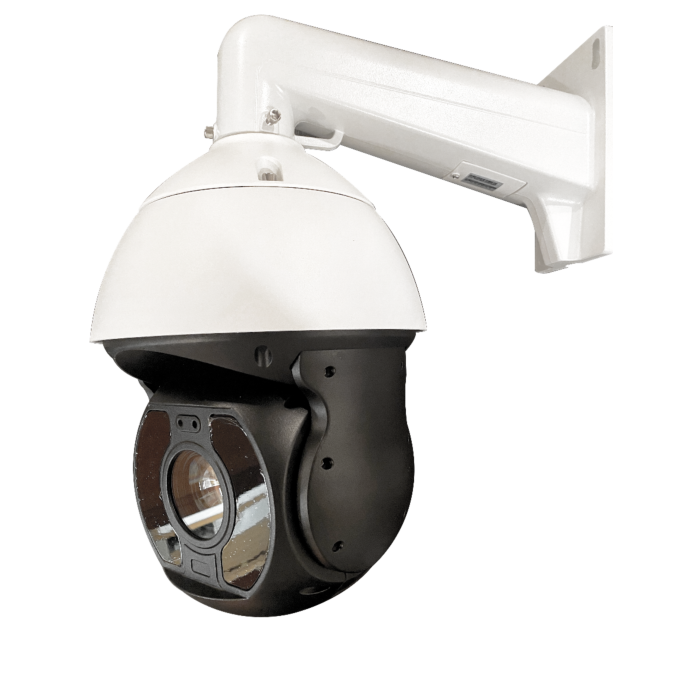

Z3 Technology Z3Dome-4M H.265 IP66 Camera
The Z3Dome-4M 4K Dome Camera is NDAA Compliant product, delivering exceptional image quality and reliability for professional broadcast, surveillance, and industrial applications. Featuring Sony’s latest image processor and high-performance 4K lens, this American-made camera ensures superior clarity, color accuracy, and versatility in demanding environments.
The advanced ICR on Color function enables the Z3Dome-4M to capture vivid color video even when the IR cut filter is removed, ensuring true-to-life results in variable lighting conditions. Its Super Image Stabilizer maintains sharp, clear imagery during motion or windy outdoor conditions, while Wide Dynamic Range (WDR) automatically corrects shadows and highlights to retain full detail across every frame. Designed to perform reliably in both indoor and outdoor applications, the Z3Dome4M combines high-quality imaging with rugged dependability.
Features:
- See Above the Horizon in 4K
- Sony FCB-EW9500H Camera Imaging
- H.265 or H.264 Video Streaming
- 30x Sony Enhanced Optical Zoom
- Wide Dynamic Range and Image Stabilization
- Stream 4K and HD resolutions
- ONVIF® Profile S/T Compliant
Applications:
- Broadcast
- Surveillance
- Industrial
| Power | PoE or 12/4A |
| Power Consumption | Less than 25W |
| Temperature & Humidity | Operating: -30 to 60 °C at <90% Relative Humidity |
| Mount | Wall mounting or lifting |
| Dimensions (L x W x H) | 238 mm x 196 mm x 386 mm (9.37 in x 7.72 in x 15.2 in) |
| Weight | 11 lbs. |
| Package Controls | Z3Dome Z9500 camera, Mount, and 12V Power Supply |
| Horizontal Range | 0°to 360° continuously |
| Vertical Range | -10° to 90° |
| Horizontal/Vertical Speed | 0.05°to 240°(Horizontal), 0.05°to 180°(Vertical) |
| Max Speed | 240° |
| Preset | 32 presets |
| Camera Features | • 30x Sony Enhanced Optical Zoom at 4K • 40x Sony Enhanced Optical Zomm at 1080p • Wide Dynamic Range, 130 db • High Sensitivity in Day and Night • Flare Reduction with 7 Blade Iris • Super Image Stabilizer • Defog and Noise Reduction • Vibrant Low Light Imaging with ICR on Color • Protected against instantaneous surges up to 8,000 volts including lightning • Dome glass is scratch resistant and water repellant with a water bead nano coating • Vertical Tilt -10° to 90°and Horizontal Pan 0°to 360° • IP66 PtZ Camera |
| Streaming Features | • H.265, H.264 or MJPEG Video Streaming • Supports 4K UHD and HD resolutions up to 30 fps (2160p, 1080p, 720p, and lower) • Outputs RTP, RTSP, MPEG-2 TS, RTMP and SRT • Supports unicast and multicast streaming • Multi-line Overlay • NTP Recording to the Network File System • Compatible with Wowza Streaming Engine™, Facebook Live™, and YouTube Live |
