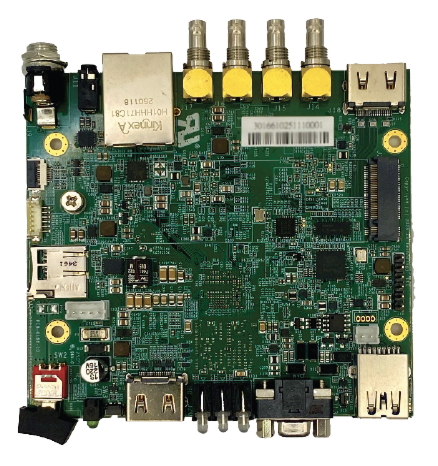

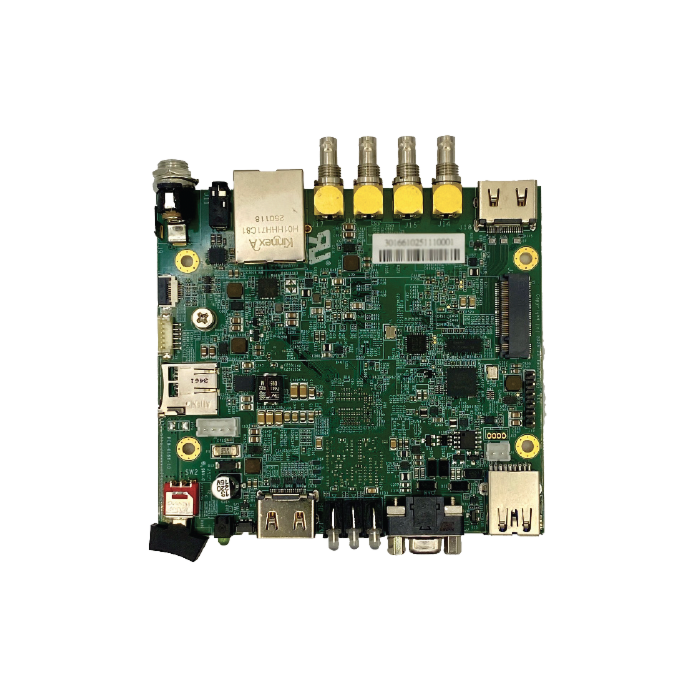

Z3 Technology SBE-12G 12G SDI Encoder Board with 4Kp60 H.265 and HDMI Input
Z3 Technology SBE-12G is a high-performance 12G-SDI encoder (also supporting HDMI and 3× 3G-SDI) built for ultra-low latency recording and streaming in demanding professional and mission-critical environments. Designed around a 1.6 GHz dual-core Arm Cortex-A76 with CVflow AI acceleration, the SBE-12G enables on-the-edge analytics (CNNs, deep learning, and transformer networks) while maintaining low power consumption—ideal where size, weight, and power matter.
Purpose-built for integration, the SBE12G delivers H.265/HEVC, H.264, and MJPEG encoding up to 4Kp60 with flexible output protocols including RTP/RTSP, MPEG-2 TS, RTMP, and SRT (with AES encryption options). It also supports cyber-security features (service disable, SNMPv2/v3, authentication), precise timestamps (MISB compliant), and robust control options (Web GUI, API, ONVIF, SSH/Serial). NDAA compliant and Made in America, the SBE12G is a trusted encoder platform for aerospace, medical, military, robotics, broadcast, and surveillance deployments.
Features:
- SKU-optimized: Z3 Technology SBE-12G encoder board for 12G-SDI / HDMI / 3G-SDI workflows
- Up to 4Kp60 encoding (4Kp60, 4Kp30, 1080p60, 720p60)
- Codecs: H.265/HEVC, H.264, MJPEG
- Ultra-low latency with low power operation (~4.5W)
- AI-ready CVflow processor (CNN, deep learning, transformer network support)
- Hardware acceleration for transformer networks + CNN toolkit compatibility (Caffe, TensorFlow, PyTorch, ONNX)
- Flexible inputs: 4× HD-BNC + HDMI; supports multiple SDI mode combinations including Quad Link (SMPTE 425M/452 as listed)
- Secure streaming & management: SNMPv2/v3, authentication settings, disable unused services
- SRT support: Caller/Listener/Rendezvous + AES-128/192/256 encryption options
- Control & integration: HTTP/HTTPS Web GUI, API, ONVIF, SSH/Serial; Pelco D; VISCA pass-through
- Time sync/metadata: High-precision timestamps; MISB 0604 listed; STANAG 4609 listed
- Expandability: PCIe NVMe M.2 expansion (storage/Wi-Fi/SSD), USB 3.2 Type-A, GPIO, I2C header
- Compliance statement: NDAA compliant and Made in the USA
Applications:
- Aerospace
- Broadcast
- Medical
- Military
- Robotics
- Surveillance
| SKU | SBE-12G |
| Product Type | 12G-SDI / HDMI / 3G-SDI Encoder Board |
| Compliance | NDAA Compliant; Made in the USA (Made in America) |
| Video Inputs | 4× HD-BNC and HDMI |
| Modes of Operation | 12G-SDI + 3G-SDI + 3G-SDI OR 6G-SDI + 3G-SDI + 3G-SDI OR HDMI (4Kp60) + 3G-SDI + 3G-SDI OR 12G Quad Link (SMPTE 452) |
| Video Codecs | H.265 (HEVC), H.264, MJPEG |
| Encoding Resolutions | 4Kp60, 4Kp30, 1080p60, 720p60 |
| Additional Frame Rates | 60, 50, 30, 29.97, 25, 24, 23.98 |
| Output Formats / Protocols | RTP, RTSP, MPEG-2 TS, RTMP, SRT (up to 4Kp60) |
| SRT Support | Caller, Listener, Rendezvous; Encryption AES-128/192/256 |
| Control & Management | HTTP/HTTPS Web GUI, API, ONVIF, SSH/Serial; SNMPv2/SNMPv3; User authentication |
| Recording | Record to USB or Network File System |
| Text / Graphics Overlay | Text overlay via Web GUI or custom placement of Text/PNG via HTTP/S API |
| Precision Timing / Standards | High precision timestamps across multiple streams; MISB 0604 compliant (listed); STANAG 4609 compliant (listed) |
| Additional Interfaces | Serial I/O (RS-485, RS-422, RS-232), Micro DB9, RS-232 2.5mm, GPIO × 6, USB Type-A 3.2, I2C Header, PCIe NVMe M.2 Expansion Slot (Storage/Wi-Fi/SSD) |
| Processor | Dual-core Arm Cortex-A76; 1.6 GHz |
| AI Acceleration | CVflow processor with CNN / deep learning / transformer network support; hardware acceleration for transformer networks |
| Memory | 8 GB LPDDR5 |
| ISP Capabilities | HDR processing, dewarping, 3D motion-compensated temporal filtering |
| Power Consumption | 4.5W |
| Power Supply | 12V DC |
| Board Size | 101.6 × 93.98 mm (4 × 3.7 in) |
| Board Weight | 104 g |
