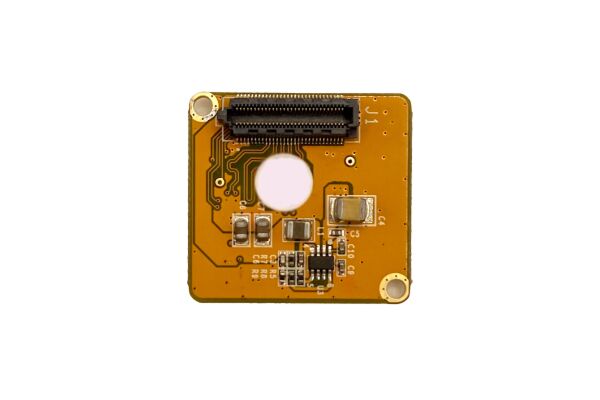

Z3 Technology CIB-TEN-10 DRS® Tenum® Digital LVDS Output Board
SKU
CIB-TEN-10
The CIB-TEN-10 is designed to allow a single cable output to send LVDS digital video to Z3 dual camera or single camera encoders. The KEL connection allows for a single, cable to provide power and transmit camera controls from the encoder to the camera, creating a complete solution to stream and record video from the Tenum® or Tamarisk®.
Features:
- Attaches to the Leonardo DRS® Tenum® or Tamarisk® Camera Body
- LVDS Digital Video Output
- KEL Cable Connection to Z3 Encoders
Applications:
- Industrial
- Inspection
- Unmanned/Robotic Systems
- Security and Surveillance
- Customized Applications
|
Camera Supported |
Leonardo DRS® Tenum® |
|
Video Output |
LVDS Digital |
|
Interfaces |
KEL cable connection for digital video, power and camera control when connecting to the FV2K-XXA, FSDI-XXA, FV4K-XXA, and Q603-XX Video Encoder. |
|
Camera Interface Board Size |
24 x 23 x 24 mm (0.94 x 0.91 x 0.94 in) |
|
Camera Interface Board Weight |
3g (0.11oz) |
|
Temperature Range |
-40°C to 80°C |
