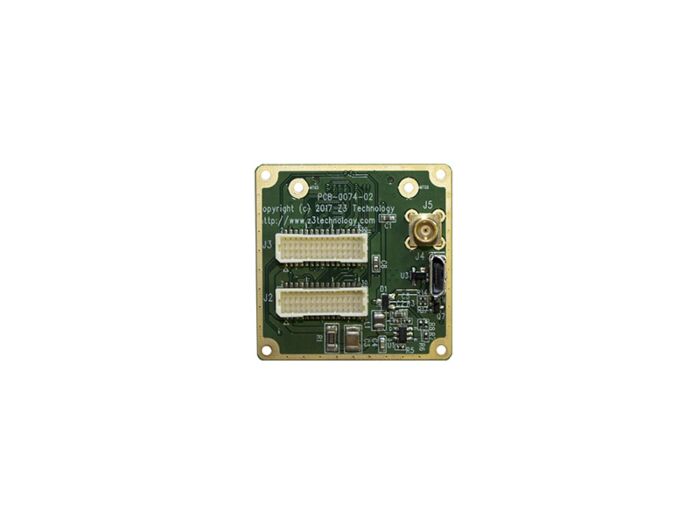

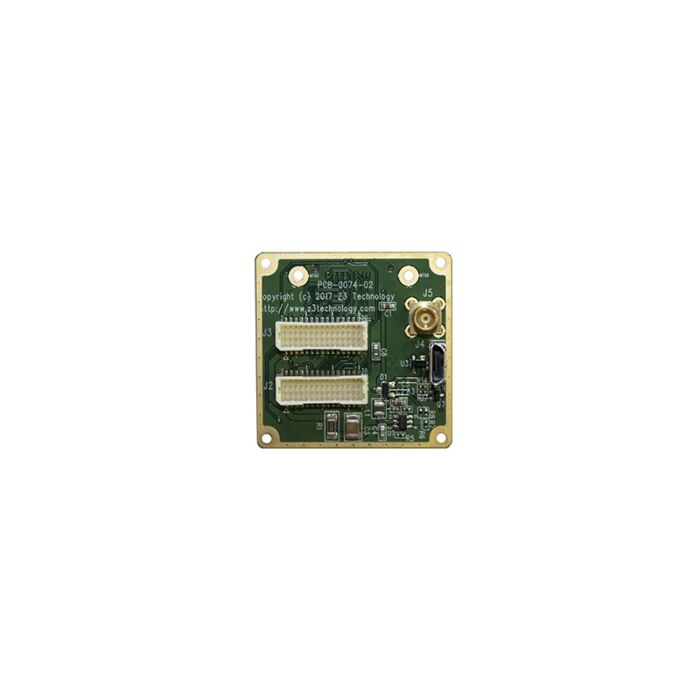

Z3 Technology CIB-FT2-02 FLIR® Tau®2 Digital LVDS Output Board
The Z3 Technology CIB-FT2-02 is a Made in the USA and NDAA compliant camera interface board engineered to enable digital or analog video input from FLIR® Tau®2 thermal cameras. Designed for thermal inspection, surveillance, UAV, and industrial imaging applications, the CIB-FT2-02 delivers both digital LVDS and analog NTSC/PAL video output directly from the Tau®2 camera.
Fully compatible with Z3’s dual camera video encoder solutions—including the FV4K-DCK-1x, FV2K-DCK-1x, and FSDI-DCK-1x/2x—the CIB-FT2-02 simplifies integration and ensures seamless video streaming. The FlexIO™ connector system provides a streamlined single connection for power, video, and control, enabling fast and reliable communication between the camera and encoder.
When paired with Z3’s H.265/H.264 encoder boards, the CIB-FT2-02 creates a complete plug‑and‑play solution for capturing, encoding, storing, and streaming high‑quality infrared video in critical applications requiring secure, U.S.-made, NDAA‑compliant components.
The onboard USB 2.0 interface provides direct power and access to camera configuration tools. Connecting the board to a PC allows offline configuration using the standard FLIR® Tau®2 software utility.
Built and supported in the United States, the Z3 Technology CIBFT202 ensures long‑term reliability, compliance with NDAA Section 889 regulations, and dependable performance for government, defense, and industrial imaging systems.
Features:
- Attaches to the FLIR® Tau2® Camera Body
- LVDS Digital Video Output
- NTSC/PAL Analog Video Output
- Direct Connection to Z3 Technology’s FV2K, FV4K, FSDI Dual Camera Encoder Family
Applications:
- Thermal Inspection
- Surveillance
- Security
- Industrial
- UAV Application
- Video Conferencing
- Customized Applications
| Camera Supported | FLIR® Tau®2 |
| Video Output | •LVDS Digital •NTSC/PAL Analog |
| Interfaces | •USB 2.0 for Power and configuration |
| Output Formats | •LVDS via 30pin FlexIO™ •Analog NTSC/PAL Video via MCX •Can be used to connect to Z3’s FV2K-DCK-1x, FV4K-DCK1x, FSDI-DCK-1x family of video encoders |
| Features | •Attaches directly to the FLIR® Tau®2 camera •Digital LVDS and Composite Video Output •FlexIO™ connector with power, video and control •Single direct connection from camera to Z3’s DCK encoder family •Power from USB jack or FlexIO™ interface |
| Encoder Board Size | 38 x 38 (1.50 x 1.50 in) |
| Encoder Board Weight | 8g |
