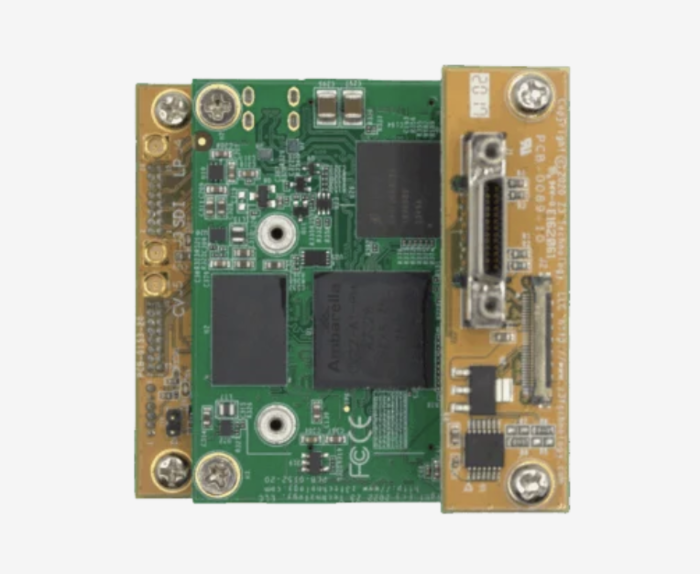

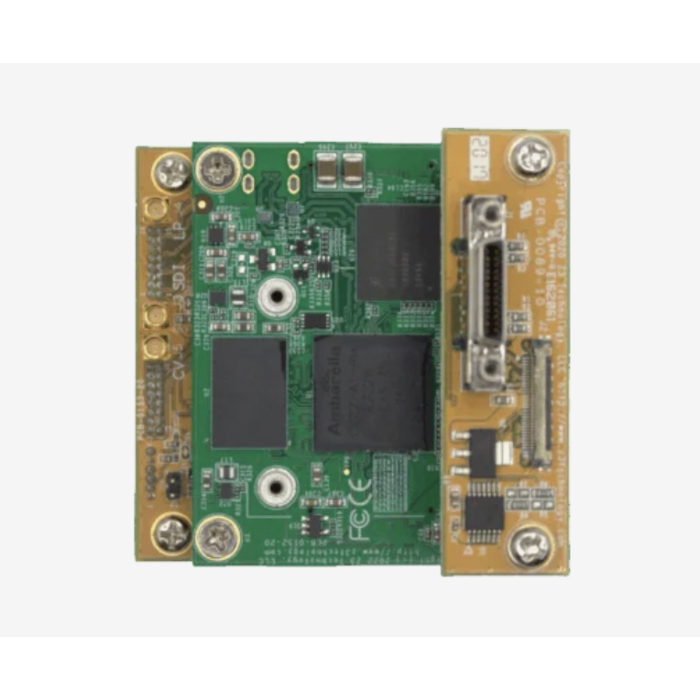

Z3 Technology CamL‑13 Dual Camera Video Encoder for UAV, Defense, and Industrial Systems
The Z3 Technology CamL‑13 is a NDAA compliant, high‑performance dual camera video encoder made in the USA, built for demanding UAV, defense, surveillance, and industrial video applications. It supports simultaneous SDI and Camera Link video inputs, encoding in H.265/HEVC, H.264, or MJPEG at up to 1080p60 with ultra‑low latency—ideal for live ISR feeds, remote monitoring, and unmanned systems.
The Camera Link Base input (via SDR connector) supports pixel clock rates up to 85 MHz and 8‑ to 16‑bit formats including Monochrome, RGB, and YUV. SDI video is captured in parallel. Output protocols include RTSP, RTP, MPEG‑2 TS, RTMP/RTMPS, TSRTP, and SRT with AES encryption (128/192/256‑bit). Data can be recorded to USB, MicroSD, or network file systems for flexible workflow integration.
The CamL13 includes embedded metadata support (STANAG 4609, MISB 0601/0604), multiple serial ports (RS‑485/RS‑232), KLV tagging, Pelco D control, and precise multi‑stream timestamping. It can be managed through a secure web GUI, API, ONVIF, or SSH, providing flexible, remote configuration.
With its AI‑ready architecture, low 4.5 W power draw, and compact 58 × 58 mm size, the CamL‑13 is an ideal edge encoder for real‑time situational awareness, drone video feeds, and secure video transmission in the field—proudly designed and manufactured in the USA for mission‑critical performance and reliability.
Features:
- Dual video input: SDI + Camera Link (Base)
- H.265/H.264/MJPEG encoding up to 1080p60
- Low latency, low power (~4.5W)
- Output: RTSP, RTP, SRT, MPEG-2 TS, RTMP/RTMPS
- Secure streaming: AES-128/192/256, SRT modes
- Record to USB, microSD, or NFS
- Live preview and text/image overlay
- Supports RGB, YUV, Mono (8–16 bit), 85 MHz pixel clock
- Metadata: STANAG 4609, MISB 0601/0604, KLV
- Control via Web GUI, ONVIF, API, SSH/Serial
- AI-ready, edge analytics capable
- 3 serial ports (RS-485, RS-232), Pelco-D support
- Compact: 58×58 mm, 105g
Applications:
- UAV/UAS video streaming
- Military ISR and surveillance
- Border security systems
- Industrial/machine vision
- Thermal + visible dual-sensor feeds
- Unmanned ground vehicles (UGV)
- Edge AI and object tracking
- Tactical situational awareness
- Mobile and embedded video systems
| Z3 Technology CamL-13 – Technical Specifications | |
|---|---|
| Camera 1 Interface | Camera Link (Base) via SDR Connector |
| Pixel Clock Frequency | Up to 85 MHz |
| Supported Pixel Formats | Monochrome, RGB, YUV (8–16-bit) |
| Camera 2 Interface | SDI |
| Additional Interfaces | Gigabit Ethernet, Line-Level Audio Input, RS-485, Micro HDMI Output, Composite Output, RS-232, Serial I/O (RS-485, RS-422, RS-432), USB 2.0 |
| Video Codecs | H.265/HEVC, H.264, MJPEG |
| Recording Options | USB 2.0, microSD, Network File System |
| Encoding Resolutions | 1080p60, 720p60, NTSC/PAL, VGA, CIF, QVGA |
| Output Protocols | RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, TSRTP, SRT |
| Security Features | SNMPv2, SNMPv3, AES Encryption (128/192/256), User-Level Authentication, Disable Unused Services |
| Control Interfaces | Web GUI (HTTP/HTTPS), API, ONVIF, SSH/Serial |
| SRT Modes | Caller, Listener, Rendezvous |
| Live Preview | Yes, via Web GUI |
| Streaming Modes | Multicast, Unicast |
| Text/Image Overlay | Text/PNG via Web GUI or HTTP/S API |
| Serial Port Support | 3 Configurable Ports (RS-485, RS-232), Pelco-D PTZ Support |
| Display Output Options | Dual Output or Picture-in-Picture (PIP) |
| Metadata Support | Embedded KLV, STANAG 4609, MISB 0601 & 0604 |
| AI Capability | AI-Ready for Edge Analytics |
| Board Size | 58 x 58 mm (2.28 x 2.28 in) |
| Weight | 105 g |
| Power Consumption | 4.5 W typical (dual H.265 encoding) |
| Power Input | 12V DC or PoE (802.3af/at Class 0) |
