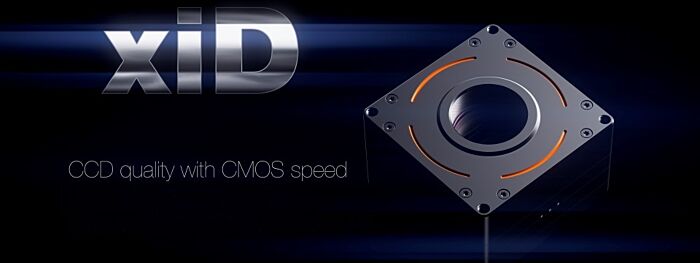

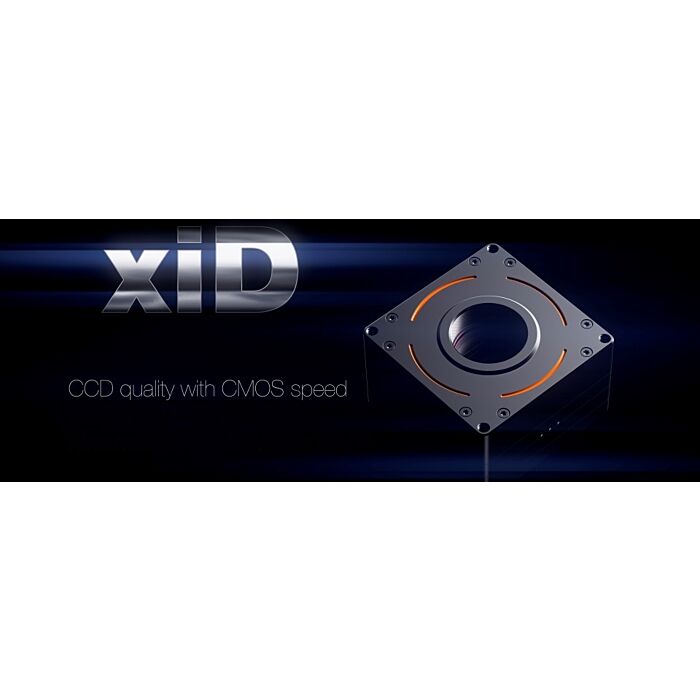

Ximea xiD - USB 3.0 Cameras with CCD

QUICK OVERVIEW

"EXview HAD CCD II" pixel technology. Cameras are equipped with XIMEA proprietary "CLEANPATH" readout and sensor driving circuitry, providing a scientific imaging device with extremely low readout noise.

Model Configurations:

MD028MU-SY        MD028CU-SY

MD061MU-SY        MD061CU-SY

MD091MU-SY        MD091CU-SY

MD120MU-SY        MD120CU-SY

SKU
Ximea xiD - USB 3.0 Cameras with CCD
Request a Quote
Email to a Friend

USB 3.0 interface cameras with Scientific grade CCD sensors from Sony and other manufacturers.



Features:



  • Quality components - Sony "EXview HAD CCD II" sensors delivering 2.8, 6.1, 9.1 and 12 Mpix
  • Fastest - Highest speed using full 4 TAP readout potential
  • Industry standard interface - Compliant with USB 3.0 SuperSpeed specification
  • Versatile mini camera - Subtle 60 x 60 x 39 mm, 320 grams (1)
  • Power - Lowest power consumption starting at 3 Watt, bus powered with USB3 cable
  • Cool - Minimal heat dissipation with passive COOLing
  • Compatibility - USB 3.0 support for Windows 7 and 10, macOS, Linux, ARM and 30 Libraries
  • Connectivity and Synchronization - Programmable opto-isolated input and output, 3 status LEDs
  • Bandwidth potential - 5Gb/s interface 400Mpix/s data throughput
  • Software interfaces - GenICam / GenTL and highly optimized xiAPI SDK for Image Processing
  • High grade - Quality class of sensors is combined with specially selected IR filters
  • Easy deployment - Range of accessories and widest hardware and software interoperability
  • Highly Customizable - Available in Board level and with Peltier TE Cooling

    •


    Applications:



  • Ophthalmology and Retinal imaging
  • Material and Life science
  • Medical Imaging and Light Microscopy
  • Pharmaceutics and Healthcare
  • Robotic Welding
  • Industrial Automation, Machine Vision, Photovoltaics
  • Intelligent Transportations Systems (ITS)
  • Open road tolling and Traffic monitoring
  • ANPR / ALPR
  • Biometrics
  • Gauging, Metrology
  • Defect detection, OCV / OCR
  • Astronomy, Astrography
  • Cell Biology, sorting
  • Semiconductor wafer and bonding scanning
  • Flat panel inspection
  • Dentistry, Dermatology
  • Print and Film scanning
  • Laser beam profiling
  • Histology, Pathology
  • Rail and Road applications
  • Fluorescence
  • Low light
  • UAV UAS

    •



    B/W Model  Color ModelSensor Resolution Pixel µm ADC bits FWC  Power WattDR dB(2) Frames per sec(1)
     MD028MU-SY MD028CU-SY SONY ICX674 1934 x 1456, 2.8 MP 4.54 8,10,12,14 20000 3.6 W 71.1 57
     MD061MU-SY MD061CU-SY SONY ICX694 2754 x 2204, 6.1 MP 4.54 8,10,12,14 19500 3.9 W 71.8 28.4
     MD091MU-SY MD091CU-SY SONY ICX814 3384 x 2708, 9.1 MP 3.69 8,10,12,14 12000 4.2 W 68.4 20
     MD120MU-SY MD120CU-SY SONY ICX834 4242 x 2830, 12 MP 3.1 8,10,12,14 10000 4.8 W 63.1 15.3
