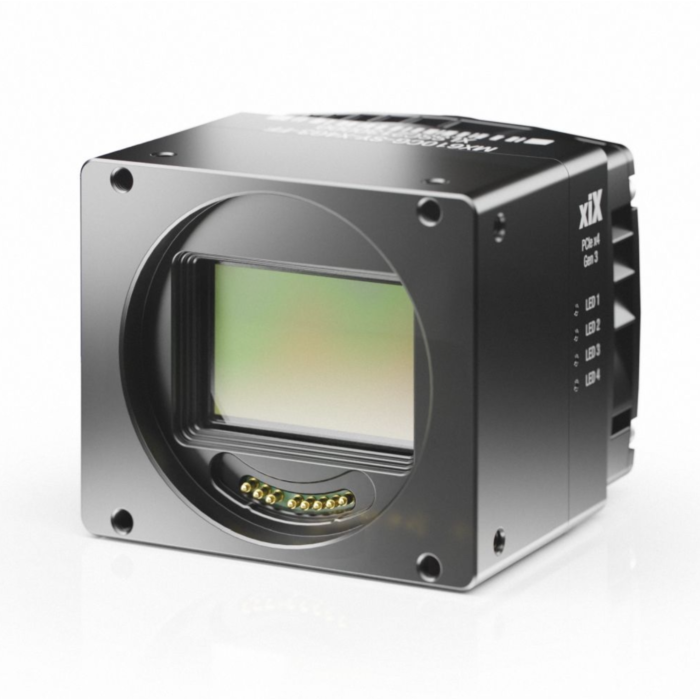

Ximea MX610CR-SY-X4G3-FF 61 MP PCIe Camera with SONY IMX455 Full Frame CMOS Sensor, 17 FPS, Rolling Shutter, 3.76 µm Pixels, 32 Gbit/s Interface

The Ximea MX610CR-SY-X4G3-FF is a high-performance industrial PCIe camera engineered for demanding imaging applications requiring ultra-high resolution and fast data throughput. Built around the full-frame SONY IMX455 CMOS color sensor with backside illumination (BSI), this camera delivers a stunning 61 MP (9568 x 6380) resolution with 3.76 µm pixel size. The rolling shutter with global reset release ensures accurate exposure control, while maintaining low readout noise at just 3.2 e⁻ and a dynamic range of 82 dB.

Optimized for efficiency and flexibility, the camera supports 12, 14, and 16-bit output, ROI readout, and hardware/software triggering modes. Data is transmitted at speeds up to 32 Gbit/s via a PCIe Gen3 x4 FireFly interface, enabling a full frame rate of 17 FPS with minimal latency. The MX610CRSYX4G3FF features a compact housing (70 x 60 x 48.6 mm), detachable sensor head for reduced thermal load, support for EF and M72 lens mounts, and includes advanced features such as binning (2x2, 3x3), HDR, hot pixel correction, and host-based image processing. Ideal for aerial mapping, FPD inspection, cinematography, and machine vision tasks requiring precise detail.

Feature:

• 61 MP resolution (9568 x 6380) using SONY IMX455 full-frame BSI CMOS sensor
• 3.76 µm pixel size with 35 x 23 mm active area and 43.2 mm diagonal
• Rolling shutter with Global Reset Release for improved exposure control
• 17 frames per second at full resolution via PCIe Gen3 x4 (32 Gbit/s)
• Supports 12, 14, and 16-bit RAW output for flexible imaging precision
• Full dynamic range of 82 dB and low 3.2 e⁻ readout noise
• Region of Interest (ROI), 2x2 & 3x3 binning, HDR, and image sharpening
• Detachable sensor head design for thermal management
• EF and passive M72 lens mount compatibility
• Compact housing: 70 x 60 x 48.6 mm; weight: 345 g
• Operating range 0°C to 50°C; power consumption: 13.5 W
• Complies with CE, FCC, RoHS, GenICam, GenTL, PCIe external cabling specs

Application:

• Aerial and drone-based mapping (photogrammetry, wide-area imaging)
• Cinematography, sports broadcasting, and motion replay
• FPD, PCB, solar panel, and wafer inspection
• Scientific and research imaging requiring high fidelity
• Print and film scanning
• Advanced driver assistance systems (ADAS)
• Surveillance for border, stadium, or street monitoring
