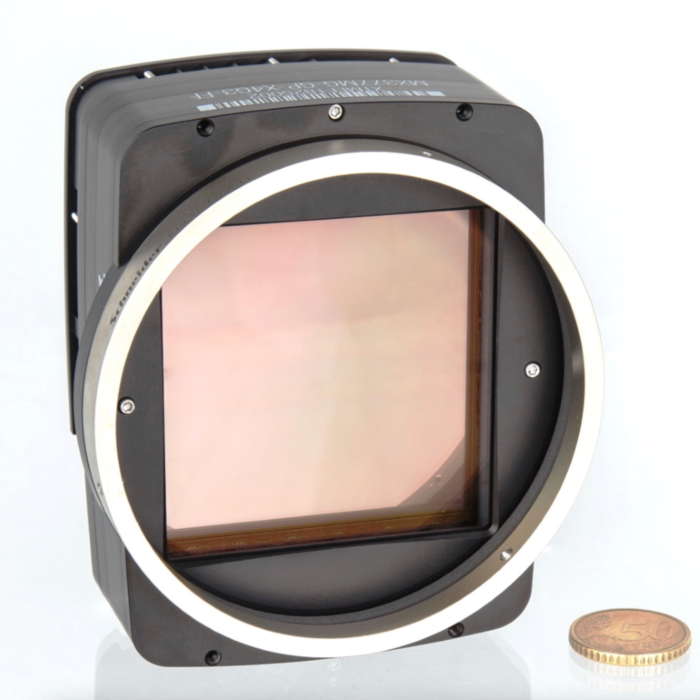

Ximea MX377MR-GP-Bx-X4G3-MTP 38MP Cooled sCMOS Camera with GSENSE6060 BSI Sensor, 62×61mm, 48FPS, PCIe Gen3, HDR, Dual ADC
The Ximea MX377MR-GP-Bx-X4G3-MTP is a high-performance scientific-grade camera equipped with the massive 62 × 61 mm GSENSE6060 BSI sensor from Gpixel, delivering an ultra-high resolution of 38 megapixels (6200 × 6144) and a large 87.3 mm diagonal. Featuring backside-illuminated sCMOS technology and a 10 µm pixel pitch, this camera ensures exceptional low-light sensitivity, high quantum efficiency (95% peak QE), and low readout noise at just 4 e-. It captures at 48 frames per second and supports rolling shutter operation for high-speed imaging applications.
Built with PCIe Gen3 interface supporting 32 Gbit/s throughput, the MX377MR ensures fast data transfer and stable connectivity. Advanced on-chip functions include 4×4 downsampling and 1×4 decimation. It features HDR imaging, dual 12/14-bit ADC modes, and a wide spectral response of 350 – 1050 nm. Designed for demanding environments, it offers active cooling, fan-based heat dissipation, and robust I/O with 11 inputs and 11 outputs. The rugged 98 × 110 × 67 mm housing includes an M95 lens mount and operates between 0 to 50°C.
Features:
- 38MP (6200 × 6144) resolution with Gpixel GSENSE6060 BSI sCMOS sensor
- Extra-large 62 × 61 mm active area, 87.3 mm diagonal
- High-speed 48 FPS rolling shutter performance
- 10 µm pixel pitch for increased sensitivity
- Dual ADC: 12, 14, and 2×14-bit modes
- 90 dB dynamic range, 4 e⁻ readout noise, 95% QE
- PCIe Gen 3 interface at 32 Gbit/s
- HDR imaging, on-chip 4×4 downsampling & 1×4 decimation
- Active cooling with fan-based heat dissipation
- Wide spectral response: 350 – 1050 nm
- 11 GPIO inputs and outputs for system integration
- Rugged M95 mount housing; 98 × 110 × 67 mm dimensions
Applications:
- Scientific imaging & research
- Life sciences and fluorescence microscopy
- High-resolution inspection systems
- Hyperspectral imaging integration
- Industrial quality control
- Astronomy and astrophotography
- Semiconductor and flat panel inspection
| Sensor Vendor | Gpixel |
| Sensor Model | GSENSE6060 BSI |
| Sensor Type | Monochrome |
| Sensor Technology | sCMOS |
| Sensor Format | Medium Format |
| Sensor Resolution | 6200 × 6144 (38 MP) |
| Active Area | 62 × 61 mm |
| Pixel Size | 10 µm |
| Shutter Type | Rolling Shutter |
| Frame Rate | 48 FPS |
| Bit Depth | 12, 14, Dual 12/14-bit |
| On-Chip Downsampling | 4×4 |
| On-Chip Decimation | 1×4 |
| Interface | PCIe Gen 3 |
| Interface Speed | 32 Gbit/s |
| Connector Type | PCIe-FireFly-X4G3 |
| Exposure Time (Min/Max) | 24 µs / 30 s |
| Power Consumption | 20 W |
| Cooling | Active Fan Cooling |
| Special Features | HDR, Dual ADC, BSI |
| Dynamic Range | 90 dB |
| Full Well Capacity | 110,000 e⁻ |
| Read Noise | 4 e⁻ |
| SNR | 50.8 dB |
| Peak QE | 95% |
| Max Analog Gain | 40 dB |
| Spectral Range | 350 – 1050 nm |
| Lens Mount | M95 mount |
| Dimensions (W×H×D) | 98 × 110 × 67 mm |
| Weight | 1270 g |
| Operating Temp | 0 – 50 °C |
| Storage Temp | -25 – 60 °C |
