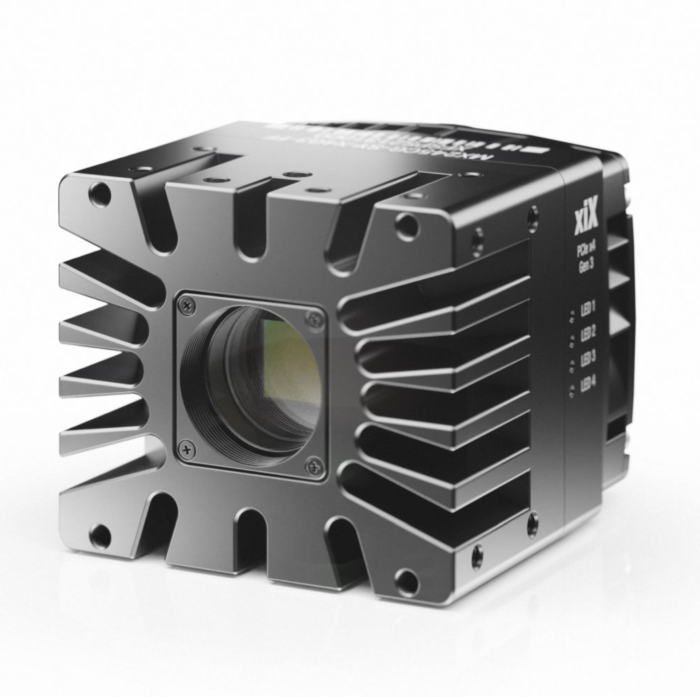

Ximea MX161CG-SY-X4G3-FF 16.1 MP Color Camera with Sony IMX532 CMOS Sensor, Global Shutter, 160 FPS, PCIe 3.0 x4, 32 Gbit/s
The Ximea MX161CG-SY-X4G3-FF is a compact, high-performance industrial camera equipped with the Sony IMX532 16.1 MP CMOS sensor, leveraging Pregius S global shutter technology to deliver true-to-life color images at a rapid 160 FPS. With a resolution of 5328 x 3040 pixels, 2.74 µm pixel pitch, and a 1.1" optical format, this camera achieves exceptional image clarity and dynamic range (72.65 dB), making it ideal for precision imaging tasks. It supports RAW output in 8, 10, and 12-bit formats and includes Dual ADC, backside illumination, and host-based image processing for advanced imaging fidelity.
This model uses a PCIe Gen3 x4 interface to transmit data at ultra-fast 32 Gbit/s, with latency-free direct memory access and synchronization options for multi-camera setups. The removable head design ensures heat is managed away from sensitive components. With GPIO (6-in / 6-out), exposure control from 5 µs to 30 s, and robust support for SDKs (C++, C#, Python) across Windows, Linux, ARM, and Jetson platforms, the MX161CGSYX4G3FF is optimized for use in VR/AR, aerial mapping, robotics, quality inspection, and cinematic broadcasting.
Features:
- 16.1 MP color resolution (5328 x 3040) with Sony IMX532 CMOS sensor
- 2.74 µm pixel size with 1.1" optical format
- Global shutter for distortion-free capture
- Frame rate up to 160 FPS at full resolution
- Dual ADC with 72.65 dB dynamic range, 1.6 e⁻ readout noise
- Backside illuminated (BSI) sensor for enhanced sensitivity
- PCIe Gen3 x4 interface with 32 Gbit/s data throughput
- Supports 8/10/12-bit RAW output and host-based image processing
- Exposure control from 5 µs to 30 s
- Detachable head for flexible thermal placement
- GPIO: 6 inputs / 6 outputs; C-mount lens support
- Software support for Windows, Linux, ARM, NVIDIA Jetson
- SDKs available in C++, C#, and Python
- Compact housing: 70 x 60 x 55 mm; 395g
- Power: 14.3W with optional heatsink or fan cooling
Applications:
- Virtual & Augmented Reality (VR/AR)
- Photogrammetry & 3D Mapping
- Robotics and Automation
- Aerial Imaging & UAV Systems
- Broadcast & Cinematic Video Capture
- PCB, FPD, and Semiconductor Inspection
- Scientific Imaging & Motion Analysis
- High-speed industrial quality control
| Sensor | Sony IMX532 CMOS (Color, BSI) |
| Resolution | 16.1 MP (5328 x 3040) |
| Pixel Size | 2.74 µm |
| Sensor Size | 1.1" (14 x 8.3 mm) |
| Shutter Type | Global Shutter |
| Frame Rate | 160 FPS |
| Dynamic Range | 72.65 dB |
| Read Noise | 1.6 e⁻ |
| Interface | PCIe Gen3 x4 (32 Gbit/s) |
| Output Bit Depth | 8, 10, 12-bit RAW |
| Exposure Range | 5 µs – 30 s |
| Lens Mount | C-Mount |
| Power Consumption | 14.3 W |
| Dimensions | 70 x 60 x 55 mm |
| Weight | 395 g |
| Operating Temp | 0°C to 50°C |
| Storage Temp | -25°C to 60°C |
| GPIO | 6 In / 6 Out |
| Software Support | Windows, Linux, ARM, NVIDIA Jetson |
| SDK | C++, C#, Python |
| Special Features | Dual ADC, HDR, Auto Exposure, ROI, Binning, LUT, De-Bayering |
| Certifications | CE, FCC, RoHS, GenICam, PCIe Spec Compliant |
