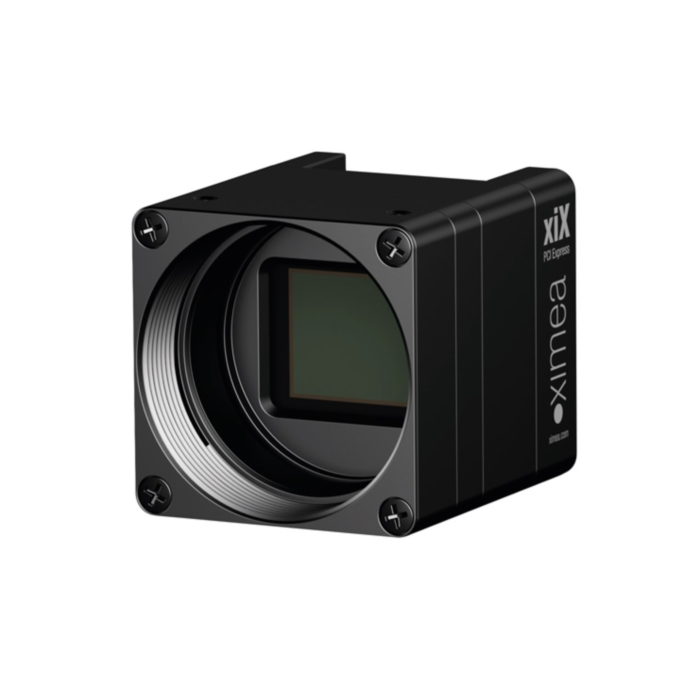

Ximea MX081UG-SY-X2G2 Ultraviolet Scientific Grade Camera
SKU
MX081UG-SY-X2G2
Scientific grade UV compact camera for Material and Life sciences like: UV detection, hyper spectral imaging, wafer inspection, mask inspection, low light level imaging, combustion imaging, high resolution microscopy, spectroscopy, material testing, luminescence spectroscopy, high voltage technology etc.
Features:
- 8.1 Megapixels
- Sony IMX487 - UV spectrum camera
- Compact size in 26 x 26 mm form factor
- 59 FPS
| Resolution | 8.1 MP 2856 × 2848 pixels |
| Frame Rates | 59 fps |
| Sensor Model | Sony IMX487 AAMJ |
| Chroma | Ultraviolet |
| Sensor Type | CMOS UV spectrum |
| Sensor Size | 2/3" |
| Sensor Active Area | Diagonal 11.1 mm |
| Spectral Range | 200 - 400 nm |
| Readout Method | Global shutter |
| Pixel Size | 2.74 μm |
| Digitization | 8, 10, 12 |
| Data Interface | PCIe Gen2 x2 lanes 10 Gbit/s |
| I/O Ports | GPIO IN, OUT |
| Power Consumption | 3.7 Watt |
| Lens Mount | C or CS Mount |
| Weight | 30 grams |
| Dimension WxHxD | 26 x 26 x 31 mm |
| Operating Temperature | 50 °C |
