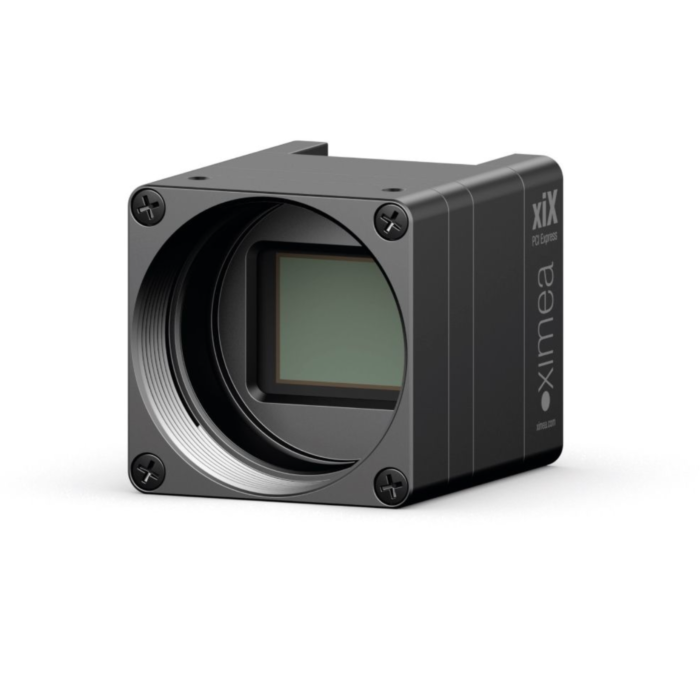

Ximea MX005MG-SY-X2G2 0.5 MP Monochrome PCIe Gen 2 Camera with SONY IMX426 Sensor, Global Shutter, 752 FPS, 1/1.7" Format
The Ximea MX005MG-SY-X2G2 is a high-speed embedded monochrome camera featuring a 0.5 Megapixel SONY IMX426 CMOS sensor with global shutter technology. The sensor’s 816 x 624 resolution, large 9 µm pixel size, and 1/1.7" optical format enable exceptional image quality with a dynamic range of 71 dB. This camera achieves ultra-high frame rates of up to 752 frames per second, delivering precise motion capture and imaging for fast-moving applications. Data is transmitted through a PCIe Gen 2 interface supporting 8 Gbit/s bandwidth, ensuring minimal latency and high-throughput data transfer critical for demanding machine vision and robotics tasks.
Designed with a compact 26.4 x 26.4 x 30.9 mm standard housing weighing only 30 grams, the MX005MGSYX2G2 is ideal for embedded systems in robotics, UAV/UAS, photogrammetry, VR, and industrial automation. Its flexible hardware includes 3 GPIO inputs and outputs, hardware and software trigger capabilities, and support for continuous or burst acquisition modes. The camera’s C-mount lens compatibility and low power consumption (3.7W) further optimize it for mobile and multi-camera setups requiring precision, speed, and reliability.
Features:
- 0.5 MP (816 x 624) monochrome SONY IMX426 CMOS sensor
- Global shutter for distortion-free high-speed imaging
- Up to 752 frames per second at full resolution
- PCIe Gen 2 interface with 8 Gbit/s data throughput
- 9 µm pixel size, 1/1.7" sensor format, 71 dB dynamic range
- Supports 8, 10, 12-bit RAW output
- Compact size: 26.4 x 26.4 x 30.9 mm, lightweight 30 g housing
- C-mount lens compatibility
- GPIO: 3 inputs, 3 outputs; hardware and software triggers
- Exposure range: 9 µs to 30 s
- Power consumption: 3.7 W, optional heatsink available
- SDK support for C++, C#, Python; compatible with Windows, Linux, ARM
- Ideal for robotics, UAV/UAS, VR photogrammetry, industrial inspection
Applications:
- Robotics and automated assembly vision
- UAV/UAS aerial mapping and surveillance
- Virtual and augmented reality (VR/AR) imaging
- Photogrammetry and 3D scanning
- High-speed industrial quality inspection
- Motion capture and biometric scanning
- Scientific and medical imaging devices
- Low latency video streaming and broadcasting
| Sensor Vendor | SONY |
| Sensor Model | IMX426 |
| Sensor Type | Monochrome CMOS |
| Resolution | 816 x 624 (0.5 MP) |
| Pixel Size | 9 µm |
| Sensor Format | 1/1.7 inch |
| Shutter Type | Global Shutter |
| Maximum Frame Rate | 752 FPS |
| Data Interface | PCIe Gen 2, 8 Gbit/s |
| Bit Depth | 8, 10, 12 bits |
| Exposure Range | 9 µs – 30 s |
| Power Consumption | 3.7 W |
| Lens Mount | C-mount |
| Physical Dimensions (W x H x D) | 26.4 x 26.4 x 30.9 mm |
| Weight | 30 grams |
| Operating Temperature | 0 °C to 50 °C |
