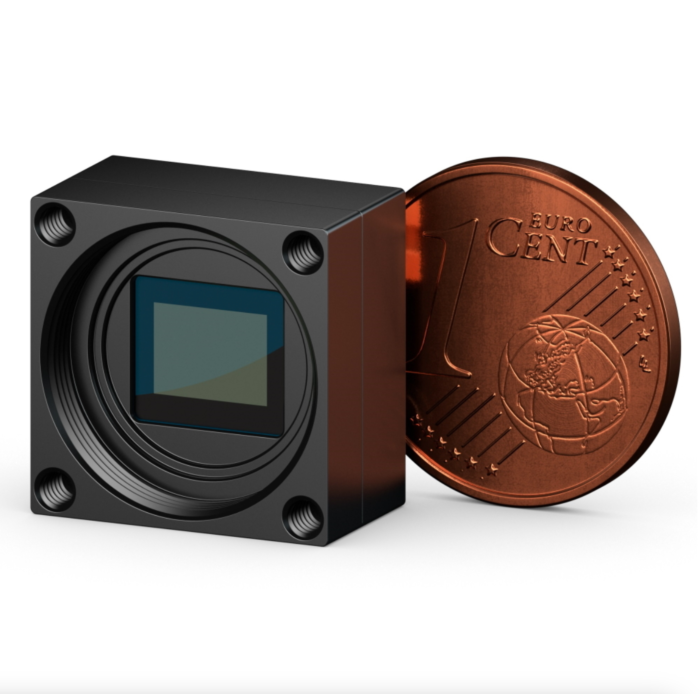

Ximea MU9PM-MH Micro USB Camera
SKU
MU9PM-MH
Quick Overview
2592 pixels x 1944 (5MP), 1/2.5" CMOS, 5.8 fps, USB 2.0 Camera.
Available in Color or Monochrome (Black and White)
Available Versions:
Color-Cased (MU9PC-MH)
Monochrome-Cased (MU9PM-MH)
Color-Board Level (MU9PC-MRBD)
Monochrome-Board Level (MU9PM-MBRD)
Miniature camera with 5 Mpix Monochrome Aptina MT9P031 CMOS sensor and USB 2.0 interface
Features:
Sensor vendor: Aptina
Sensor model: MT9P031
Sensor technology: CMOS
Shutter type: Rolling shutter, Global reset release
Frame rate: 4.6 FPS
| CBL-U2-1MO | USB 2.0 Patch Cable 1.0m |
| CBL-MUSYNC-3MN0 | 3.0m MU series I/O Sync cable for basic housing |
| MU-MINIUSB | Mini-USB Extension Board for MU9Px-MH |
| MU-M12-S | M12 Lens Mount Extension Short |
| MU-M12-M | M12 Lens Mount Extension Medium |
| MU-M12-L | M12 Lens Mount Extension Long |
| Resolution | 5M 2592x1944 pixels |
| Sensor type | B/W CMOS |
| Sensor model | APTINA MT9P031 |
| Sensor size | 1/2.5 |
| Sensor active area | 5.7 x 4.28 mm |
| Dynamic range | ~ 70dB |
| Signal to noise ratio | ~ 38dB |
| Image data interface | USB 2.0 |
| Data I/O | GPIO 2IN, 2OUT |
| Power requirements | 5V USB, typ. 0.6W |
| Lens mount | M12 |
| Weight | 5g |
| Dimensions WxHxD | 15x15x8.5 mm |
| Customs tariff code | 8525 80 30 |
| ECCN | EAR99 |
| Board Level | Available in board level model. |
