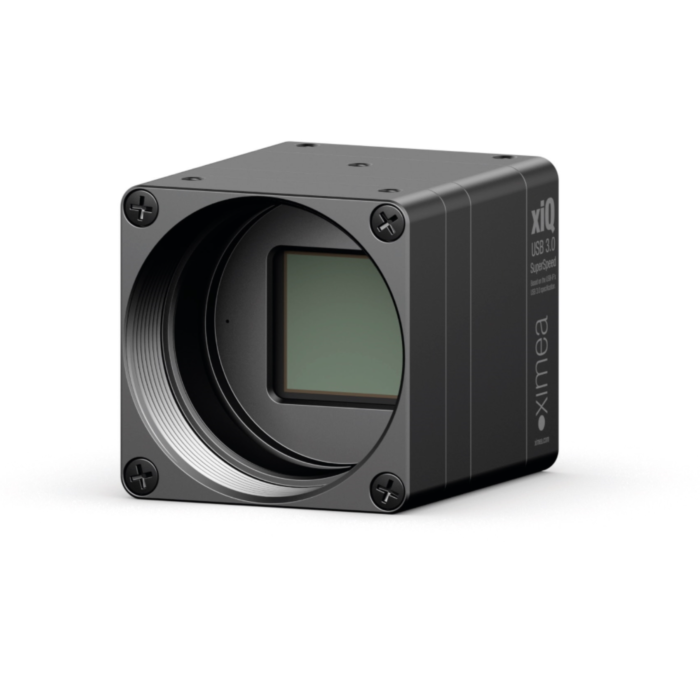

Ximea MQ022RG-CM-S7 2.2MP NIR USB3 Industrial Camera with CMOSIS CMV2000 Sensor, Global Shutter, 169 FPS, 26.4 × 26.4 × 36.8 mm

The Ximea MQ022RG-CM-S7 is a compact industrial camera equipped with the high-performance 2.2 MP CMOSIS CMV2000 CMOS sensor featuring NIR sensitivity and a global shutter. Delivering resolutions of 2048 x 1088 pixels at up to 169 frames per second, it is ideal for high-speed applications in industrial, scientific, and embedded vision systems. The camera features a pixel size of 5.5 µm and a 2/3” optical format with a sensor diagonal of 12.8 mm, enabling excellent image quality and light sensitivity across a spectral range of 350–1050 nm.

The MQ022RGCMS7 model supports USB 3.1 Gen1 (USB3 Vision compliant) via a Micro-B connector, providing 5 Gbit/s data transfer and a low power draw of just 1.55 W with natural convection cooling. It includes 256 kB buffer memory and supports HDR imaging, hardware/software triggering, ROI/AOI, binning/skipping, and on-camera hot pixel correction. With a rugged 26.4 x 26.4 x 36.8 mm housing, C-mount lens compatibility, and 1x opto-isolated input/output, it is engineered for 24/7 operation, making it suitable for high-speed inspection, 3D scanning, VR/AR, aerial mapping, and medical imaging.

Features:

• 2.2MP CMOSIS CMV2000 sensor (2048 x 1088)
• NIR sensitivity, 350–1050 nm spectral range
• Global shutter for motion freeze
• High-speed 169 FPS frame rate
• USB 3.1 Gen1 interface (5 Gbit/s)
• 5.5 µm pixel size, 2/3” sensor format
• 1.55 W low power consumption
• C-mount lens compatibility
• 10-bit image output, HDR support
• ROI, binning, skipping, hot pixel correction
• Hardware/software trigger support
• Compact 26.4 x 26.4 x 36.8 mm housing

Applications:

• High-speed inspection and quality control
• 3D scanning, eye tracking, facial recognition
• Medical imaging and microscopy
• VR/AR motion capture and panoramic imaging
• UAV and aerial photogrammetry
• Scientific and lab imaging (IR-DIC, retinal)
• Portable robotic systems and embedded vision
