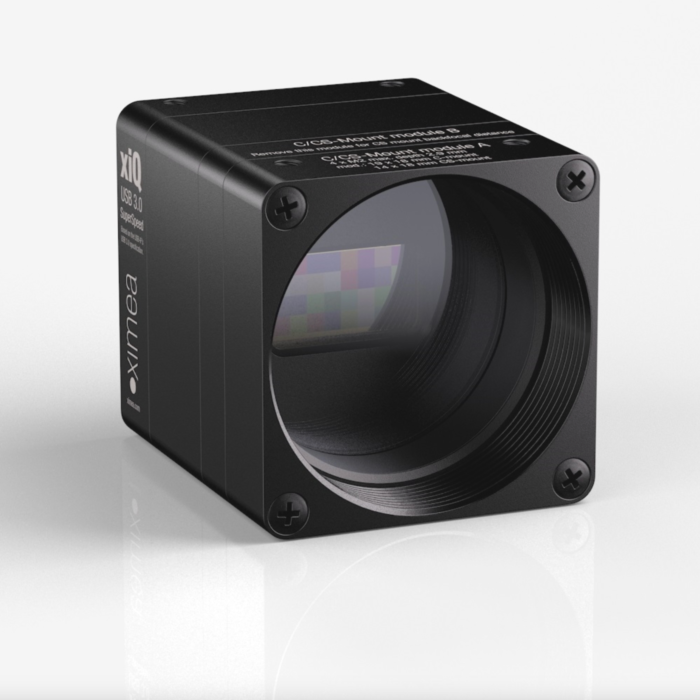

Ximea MQ022HG-IM-SM5X5-NIR2 Hyperspectral Camera, 2.2MP CMOS, 24 Bands, 665–960nm, USB3, Global Shutter, 170 FPS
The Ximea MQ022HG-IM-SM5X5-NIR2 hyperspectral camera delivers high-speed, high-precision imaging with a 2.2 MPix CMOS sensor (2048 × 1088) designed by imec, featuring 24 spectral bands within the 665–960 nm near-infrared range. Built with a global shutter and operating at up to 170 FPS via USB 3.0, this camera is engineered for reliable scientific and industrial applications requiring rapid and detailed multispectral data acquisition. The CMV2K-SSM5x5-NIR sensor supports 10-bit RAW output, a 5.5 µm pixel size, and an active sensor area of 11 × 6 mm, offering crisp, low-distortion imaging even in high-motion environments.
Housed in a durable 26.4 × 26.4 × 30.2 mm full-metal enclosure and weighing only 31.8g, the MQ022HG-IM-SM5X5-NIR2 is ideal for compact setups such as UAVs, robotics, and medical systems. It offers HDR imaging, hot pixel correction, auto exposure/gain/white balance, and flat-field correction via software. The C-mount lens system, 1× opto-isolated I/O, and USB3 Vision compliance ensure seamless integration. With no active cooling and just 1.5W power consumption, this camera operates efficiently in environments from 0°C to 50°C and supports development with C++, Python, and LabView-compatible SDKs.
Features:
- 2.2 MP resolution (2048 × 1088)
- 24 spectral bands from 665–960 nm
- High-speed 170 FPS with global shutter
- USB 3.0 interface, 5 Gbit/s data rate
- CMOS hyperspectral sensor by imec
- Lightweight: 31.8 g; compact: 26.4 × 26.4 × 30.2 mm
- 10-bit RAW output, HDR support
- C-Mount lens compatibility
- 30 µs to 2 s exposure range
- Auto white balance, exposure, and gain
- On-camera hot pixel correction
- SDKs for C++, Python, C#
- Compatible with Windows, Linux, macOS
Applications:
- Remote sensing & aerial mapping
- Precision agriculture & environmental monitoring
- Medical imaging & fluorescence detection
- Food & pharmaceutical quality control
- Recycling & contamination detection
- Spectroscopy, microscopy & forensics
- UAV, robotics & mobile embedded systems
- Optical sorting and defect analysis
- Space exploration & astronomy
| Resolution | 2.2 MPix |
| Sensor Resolution | 2048 x 1088 |
| Sensor Vendor | imec |
| Sensor Model | CMV2K-SSM5x5-NIR |
| Sensor Type | Hyperspectral |
| Sensor Technology | CMOS |
| Sensor Size | 2/3" |
| Active Area | 11 x 6 mm |
| Diagonal | 12.8 mm |
| Pixel Size | 5.5 µm |
| Shutter Type | Global Shutter |
| Frame Rate | 170 FPS |
| Bit Depth | 10-bit |
| Interface | USB3 |
| Interface Speed | 5 Gbit/s |
| Connector Type | USB3 Micro-B |
| GPIO | 1x In, 1x Out |
| Exposure Min | 30 µs |
| Exposure Max | 2 s |
| Power Consumption | 1.5 W |
| Heat Dissipation | Natural Convection |
| Cooling | None |
| HDR | Yes |
| Spectral Bands | 24 Channels |
| Spectral Range | 665 – 960 nm |
| Lens Mount | C-Mount |
| Housing | Standard Housing |
| Dimensions (W×H×D) | 26.4 × 26.4 × 30.2 mm |
| Weight | 31.8 g |
| Operating Temp | 0 – 50 °C |
| Storage Temp | -25 – 60 °C |
