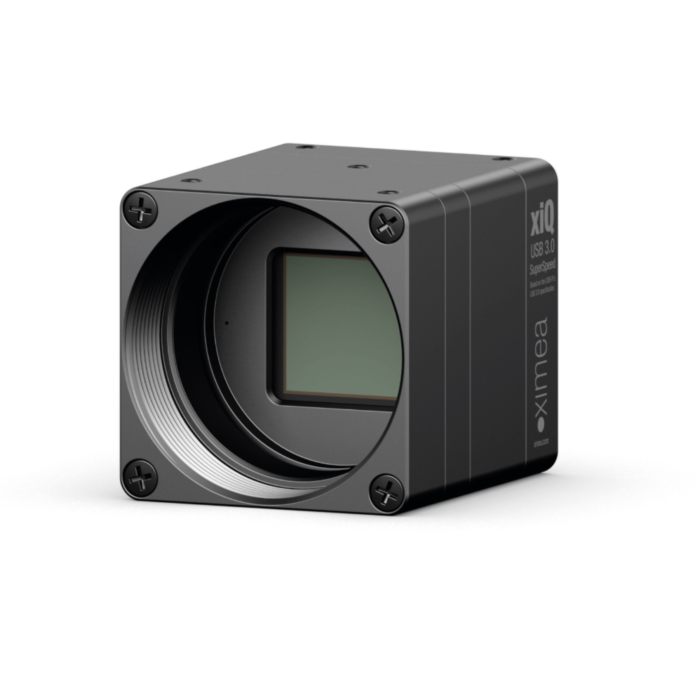

Ximea MQ022CG-CM-S7 2.2MP Color USB3 Industrial Camera with CMOSIS CMV2000 Sensor, Global Shutter, 169 FPS, 26.4 × 26.4 × 36.8 mm
Ximea MQ022CG-CM-S7 – 2.2MP color USB3 industrial camera with CMOSIS CMV2000 CMOS sensor, global shutter, 2048 × 1088 resolution at 169 FPS, 5.5 µm pixels, HDR, and compact 26.4 × 26.4 × 36.8 mm C-mount housing.
The Ximea MQ022CG-CM-S7 is a compact, high-performance industrial camera engineered with a 2.2 Megapixel CMOSIS CMV2000 color CMOS sensor and global shutter technology. Delivering a crisp resolution of 2048 x 1088 pixels, this model supports ultra-fast imaging at up to 169 frames per second through its USB 3.1 Gen1 interface (5 Gbit/s). With a pixel size of 5.5 µm, 54.4 dB dynamic range, and 39.2 dB signal-to-noise ratio, it ensures excellent image detail and clarity across high-speed and precision applications. The camera outputs 10-bit RAW data and supports partial image readout (ROI/AOI), binning, and skipping modes for flexible performance tuning.
Measuring only 26.4 x 26.4 x 36.8 mm and weighing 35 grams, the MQ022CGCMS7 is ideal for space-constrained or embedded vision environments. It features a C-Mount lens configuration with additional board-level options and operates on bus power via USB. It includes opto-isolated I/O, minimum exposure of 26 µs, HDR support, and hot pixel correction. Compatible with Windows, Linux, and macOS, the camera integrates seamlessly with image processing SDKs in C++, C#, and Python. Designed for 24/7 use, this unit excels in machine vision, VR/AR capture, scientific imaging, and high-speed inspection environments.
Features:
- Industry standard interface - Compliant with USB 3.0 SuperSpeed specification
- AIA standard compatibility - USB3 Vision standard (1)
- Ultra compact micro camera- only 26.4 x 26.4 x 21.2 mm, 27grams (2)
- Economical - excellent value and price, low TCO and fast ROI
- Cool - low power consumption, 1.0 to 1.8 W power consumption
- Powerful - 5Gb/s interface 400Mpix/s data throughput
- Fast - high speed, high frame rate: 600fps at VGA and 90fps at 4Mpix resolutions
- Connectivity - Programmable opto-isolated input and output, 3 status LEDs
- Compatibility - support for Windows and Linux, various Image Processing Libraries
- Software interfaces - GenICam / GenTL and highly optimized xiAPI SDK
- Easy deployment - range of accessories and widest software support
Applications:
- Machine vision and quality inspection
- Medical and scientific microscopy
- VR/AR motion capture systems
- UAV photogrammetry and mapping
- High-speed sports replay and analysis
- Face, body, and eye tracking systems
- Semiconductor and FPD inspection
- Embedded and OEM imaging solutions
| Image Sensor | CMV2000 |
| Resolution | 2048 x 1088 |
| Pixel µm | 5.5 |
| ADC bits | 12/10 |
| Frames per sec | 180 |
| DR dB | 60 |
| Optical size | 2/3" |
| Diagonal mm | 12.8 |
| Power W | 1.8 |
| Sensor Technology | CMOS, Global shutter |
| Acquisition Modes | Continuous, software trigger, hardware trigger |
| Partial Image Readout | ROI, Skipping and Binning modes supported (check hardware manual for details) |
| Image data formats | 8, 10 or 12 bit RAW pixel data |
| Data conversion | programmable hardware LUT 12->8 (*) |
| Color image processing | Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS |
| Hot/blemish pixels correction | On camera storage of up to 5000 pixel coordinates, host assisted correction |
| Auto adjustments | Auto white balance, auto gain, auto exposure |
| Flat field corrections | Host assisted pixel level shading and lens corrections |
| Image Data and Control Interface | USB 3.0 standard Micro B with screw lock threads compliant to USB3 Vision standard |
| General Purpose I/O | 1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable |
| Signal conditioning | Programmable debouncing time |
| Synchronization | Hardware trigger input, software trigger, exposure strobe output, busy output |
| Housing and lens mount | Standard C mount. Available options are CS mount, S(M12) mount and board level |
| Power requirements | 1 to 1.8W, supplied via USB 3.0 interface |
| Dimensions | 26.4 x 26.4 x 26.5 mm (C-mount version) |
| Weight | 27 grams (C-mount version) |
| Environment | Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage |
| Conformity | CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed |
| Opertating systems | Windows 7 SP1 (x86 and x64), Linux Ubuntu |
| Minimumm host hardware | Intel i3 3.0GHz, 2GB RAM, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter |
| Software support | xiAPI SDK, adapters and drivers for various image processing packages |
| Firmware updates | Field firmware update |
| Board Level | Available in board level model. |
