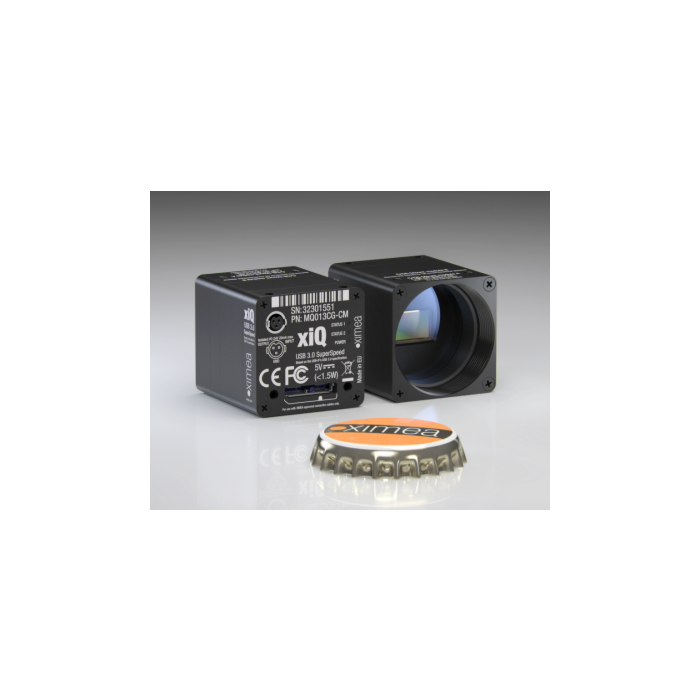

Ximea MQ013RG-E2 USB3 Near Infrared CMOS Camera
SKU
Ximea MQ013RG-E2 USB3 Compliant Camera
Quick Overview
*Product will be discontinued, please call to inquire, replacement coming soon: MQ013RG-E2-S7
Smallest dimensions: 26 x 26 x 26 mm, 26 grams, 1.3 MP at 60 fps, With flat ribbon flex cable ideal for Embedded vision systems, and USB3 Vision Compliant.
1.3 Megapixel Near Infrared (NIR) enhanced CMOS Camera with USB 3.0.
Features:
- Smallest dimensions: 26 x 26 x 26 mm, 26 grams
- 1.3 MP at 60 fps
- With flat ribbon flex cable ideal for Embedded vision systems
- USB3 Vision Compliant
Applications:
- In-situ optical inspection camera
- fast process capturing, e.g. golf club swings
- Intelligent Transportation Systems (ITS)
- Open road tolling and Traffic monitoring
- Industrial Automation
- Machine Vision facial Recognition
- Motion Capture
- Automotive crash testing,
- OCR/ OCV
- 3D scanning
- Robotic Arms
- Material and Life science
- Microscopy
- Ophthalmology and Retinal imaging,
- Medical Imaging,
- Flat panel inspection
- Dental
- Kiosks
- Security
- Biometrics
| Resolution | 1.3 MP 1280 × 1024 pixels |
| Sensor type | CMOS Matrix B/W |
| Sensor Model | e2V EV76C661 ABT-EQTR |
| Sensor Size | 1/1.8" |
| Sensor active area | 6.9 × 5.5 mm |
| Pixel Size | 5.3 µm |
| Bits per pixel | 8,10 |
| Dynamic range | 60db |
| Frame rates | 60 fps |
| On-chip binning | 1x1, 2x2 |
| Image data interface | USB3.0 |
| Data I/O: | GPIO IN, OUT |
| Power requirements | 0.9 Watt |
| Lens Mount | C or CS Mount |
| Weight | 26 grams |
| Dimensions | 26 x 26 x 26 mm |
| Custom Tariff Code | 8525.80 30 (EU) / 8525.80 40 (USA) |
| Operating environment | 50 °C |
| ECCN | EAR99 |
