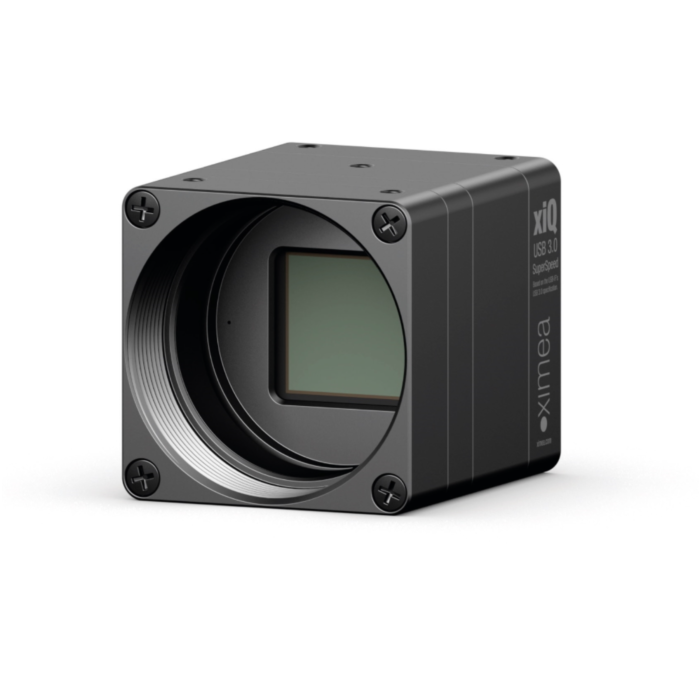

Ximea MQ013MG-ON-S7 1.3MP Monochrome USB3 Industrial Camera with onsemi PYTHON1300 CMOS Global Shutter, 210 FPS, 26.4 x 26.4 x 32.9 mm

The Ximea MQ013MG-ON-S7 is an ultra-compact USB3 industrial camera equipped with the onsemi PYTHON1300 1/2” CMOS global shutter sensor. Delivering crisp monochrome imaging at 1.3 Megapixels (1280 x 1024) and a blazing-fast frame rate of 210 FPS, this camera excels in applications that demand high-speed precision. The sensor features 4.8 µm pixel size, a 7.9 mm diagonal, and a peak quantum efficiency of 54% at 550nm, offering excellent low-light sensitivity across a 350–1050 nm spectral range. Its 10-bit output with onboard ROI, binning, decimation, and hot pixel correction ensures high-quality images with reduced noise and accurate shading.

Built for 24/7 operation, the MQ013MG-ON-S7 includes USB 3.1 Gen1 Micro-B interface with screw-lock threads, a standard C-mount lens holder, and opto-isolated GPIO for hardware/software triggering. The camera is powered via USB (1.58 W), and provides fast ROI control, auto-exposure, and HDR support. With a compact 26.4 x 26.4 x 32.9 mm footprint, single-board construction, 256 KB buffer memory, and full GenICam and USB3 Vision compliance, this unit is ideal for embedded vision, high-speed inspection, VR/AR, 3D scanning, robotics, and more.

Features:

• 1.3MP resolution (1280 x 1024) with onsemi PYTHON1300 CMOS sensor
• Global shutter for motion freeze and precise capture
• Ultra-high frame rate: up to 210 FPS at full resolution
• 4.8 µm pixel size, 7.9 mm diagonal, 54% peak QE at 550nm
• USB 3.1 Gen1 Micro-B interface with 5 Gbit/s data rate
• 10-bit image output with support for 8/10/12-bit digitization
• On-chip ROI, binning, decimation, and partial readout
• Opto-isolated GPIO: 1 input / 1 output
• Standard C-mount lens interface, board-level option available
• Compact 26.4 x 26.4 x 32.9 mm housing, 30 g weight
• 256 KB onboard memory for stable transfers
• No sensor cooling required, passive heat dissipation
• Low power draw: 1.58 W, USB bus-powered
• Supports auto exposure, gain, HDR, white balance
• Fully GenICam, USB3 Vision, CE, RoHS, FCC compliant
• Compatible with Windows, Linux, MacOS, SDKs for C++, C#, Python

Applications:

• High-speed industrial inspection and quality control
• VR/AR and motion capture systems
• 3D scanning and facial recognition
• Embedded vision and robotics
• Medical and scientific microscopy (IR-DIC, ophthalmology)
• UAV photogrammetry and drone-based imaging
• Semiconductor and flat panel inspection
• Low-latency audio/visual streaming for LoLa systems
• Portable and miniature automation systems
