Ximea MQ013CG-E2-S7 1.3MP Color USB3 Industrial Camera with e2v EV76C560 CMOS Global Shutter Sensor, 61 FPS, 26.4 x 26.4 x 32.8 mm

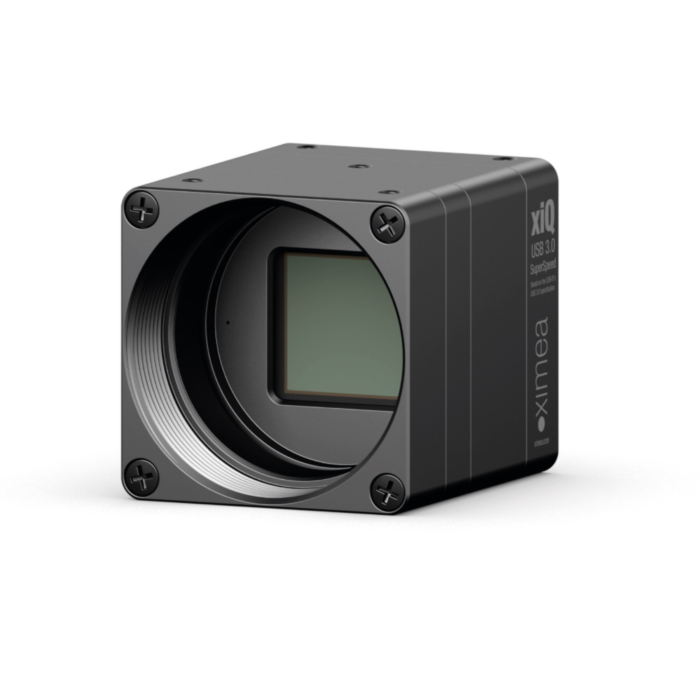

The Ximea MQ013MG-E2-S7 is a compact industrial USB 3.1 Gen1 camera featuring a 1.3 Megapixel monochrome CMOS sensor from e2v (EV76C560), delivering 1280 x 1024 resolution with a 5.3 µm pixel size and a 1/1.8" optical format. Its global shutter architecture enables blur-free image capture at high speeds, making it ideal for dynamic scenes and precise motion analysis. The camera supports full-resolution imaging at 61 frames per second, with even higher frame rates possible using sub-sampling or ROI (Region of Interest) modes.
Engineered for embedded vision and OEM integration, the MQ013MG-E2-S7 offers 10-bit output, low power consumption (0.98W), and is housed in a compact 26.4 x 26.4 x 32.8 mm enclosure. It includes advanced features such as auto gain/exposure, hardware/software trigger support, hot pixel correction, and a high dynamic range of 51.7 dB. With peak quantum efficiency of 63%, 12000 e⁻ full well capacity, and USB3 micro-B interface delivering 5 Gbit/s throughput, this camera excels in machine vision, scientific imaging, and industrial automation tasks requiring precision, reliability, and high-speed data transmission.
Features:
- 1.3 MP resolution (1280 x 1024) with e2v EV76C560 CMOS sensor
- Global shutter architecture for high-speed, motion-free capture
- USB 3.1 Gen1 interface with 5 Gbit/s data rate
- 61 FPS at full resolution
- 5.3 µm pixel size with 8.7 mm sensor diagonal
- Dynamic range: 51.7 dB | Peak QE: 63%
- Full well capacity: 12000 e⁻ | Read noise: 27.6 e⁻
- Ultra-compact form factor: 26.4 x 26.4 x 32.8 mm
- Low power consumption: <1W, passive cooling
- C-Mount lens support, GPIO I/O, onboard ROI and binning
- Compatible with Windows, Linux, macOS
- Software support: C++, C#, Python, GenICam/GenTL compliant
Applications:
- Machine vision and factory automation
- Embedded vision and OEM systems
- Scientific imaging and microscopy
- High-speed inspection and quality control
- Medical and life sciences imaging
- Facial recognition, eye tracking, VR/AR systems
- UAV aerial mapping and photogrammetry
- LoLa (Low Latency) streaming and broadcast replay
| Vendor | e2v |
| Model | EV76C560 |
| Type | CMOS, Monochrome |
| Shutter Type | Global Shutter |
| Resolution | 1.3 MP (1280 x 1024) |
| Pixel Size | 5.3 µm |
| Optical Format | 1/1.8" |
| Sensor Diagonal | 8.7 mm |
| Frame Rate | 61 FPS |
| Dynamic Range | 51.7 dB |
| Full Well Capacity | 12000 e⁻ |
| Readout Noise | 27.6 e⁻ |
| Peak Quantum Efficiency | 63% |
| Bit Depth | 10-bit (Supports 8, 10, 12-bit) |
| Interface | USB 3.1 Gen1 (5 Gbit/s) |
| Connector | USB3 Micro-B with screw lock |
| Minimum | 100 µs |
| Maximum | 1 second |
| On-Chip | ROI, Binning, Skipping |
| Auto Adjustments | Auto gain, Auto exposure, HDR |
| Hot Pixel Correction | Yes, with on-camera storage (up to 5000 pixels) |
| Power Consumption | 0.98 W |
| Cooling | Passive (Natural Convection) |
| Lens Mount | C-Mount (CS and S-Mount optional) |
| Dimensions (W x H x D) | 26.4 x 26.4 x 32.8 mm |
| Weight | 30 g |
| Operating Temp | 0°C to 50°C |
| Storage Temp | -25°C to 60°C |
| Certifications | CE, FCC, RoHS, USB3 Vision, GenICam |
| Supported Languages | C++, C#, Python |
| OS Support | Windows 7/10, Linux Ubuntu, macOS |
| Input | Bus-powered via USB3 |
| GPIO | 1x Input, 1x Output (Opto-isolated) |
| Triggering | Hardware/Software trigger, Exposure strobe, Busy output |
