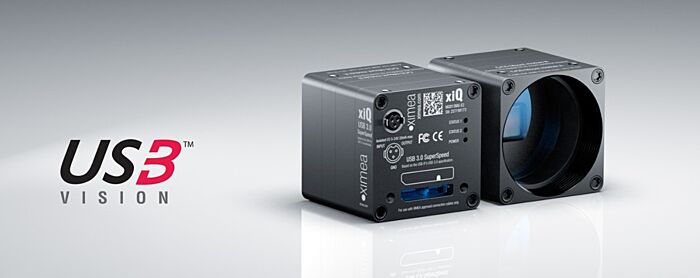

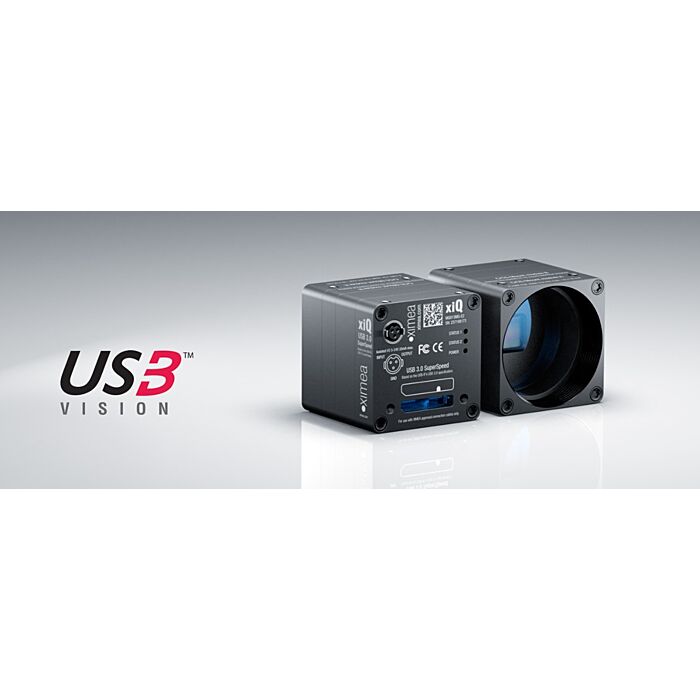

Ximea MQ013CG-E2 Ultra compact USB 3.0 Industrial Color Camera
SKU
MQ013CG-E2-S7
Quick Overview
*Product will be discontinued, please call to inquire, replacement coming soon: MQ013CG-E2-S7
Ultra compact USB 3.0 Industrial Color Camera
Features:
- Industry standard interface - Compliant with USB 3.0 SuperSpeed specification
- AIA standard compatibility - USB3 Vision standard (1)
- Ultra compact micro camera- only 26.4 x 26.4 x 21.2 mm, 27grams (2)
- Economical - excellent value and price, low TCO and fast ROI
- Cool - low power consumption, 1.0 to 1.8 W power consumption
- Powerful - 5Gb/s interface 400Mpix/s data throughput
- Fast - high speed, high frame rate: 600fps at VGA and 90fps at 4Mpix resolutions
- Connectivity - Programmable opto-isolated input and output, 3 status LEDs
- Compatibility - support for Windows and Linux, various Image Processing Libraries
- Software interfaces - GenICam / GenTL and highly optimized xiAPI SDK
- Easy deployment - range of accessories and widest software support
- Also searchable as MQ013CGE2
| Image Sensor | EV76C560 |
| Resolution | 1280 x 1024 |
| Pixel µm | 5.3 |
| ADC bits | 10 |
| Frames per sec | 60 |
| DR dB | 66 |
| Optical size | 1/1.8" |
| Diagonal mm | 8.7 |
| Power W | 1.0 |
| Sensor Technology | CMOS, Global shutter |
| Acquisition Modes | Continuous, software trigger, hardware trigger |
| Partial Image Readout | ROI, Skipping and Binning modes supported (check hardware manual for details) |
| Image data formats | 8, 10 or 12 bit RAW pixel data |
| Data conversion | programmable hardware LUT 12->8 (*) |
| Color image processing | Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS |
| Hot/blemish pixels correction | On camera storage of up to 5000 pixel coordinates, host assisted correction |
| Auto adjustments | Auto white balance, auto gain, auto exposure |
| Flat field corrections | Host assisted pixel level shading and lens corrections |
| Image Data and Control Interface | USB 3.0 standard Micro B with screw lock threads compliant to USB3 Vision standard |
| General Purpose I/O | 1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable |
| Signal conditioning | Programmable debouncing time |
| Synchronization | Hardware trigger input, software trigger, exposure strobe output, busy output |
| Housing and lens mount | Standard C mount. Available options are CS mount, S(M12) mount and board level |
| Power requirements | 1 to 1.8W, supplied via USB 3.0 interface |
| Dimensions | 26.4 x 26.4 x 26.5 mm (C-mount version) |
| Weight | 27 grams (C-mount version) |
| Environment | Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage |
| Conformity | CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed |
| Opertating systems | Windows 7 SP1 (x86 and x64), Linux Ubuntu |
| Minimumm host hardware | Intel i3 3.0GHz, 2GB RAM, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter |
| Software support | xiAPI SDK, adapters and drivers for various image processing packages |
| Firmware updates | Field firmware update |
| Board Level | Available in board level model. |
