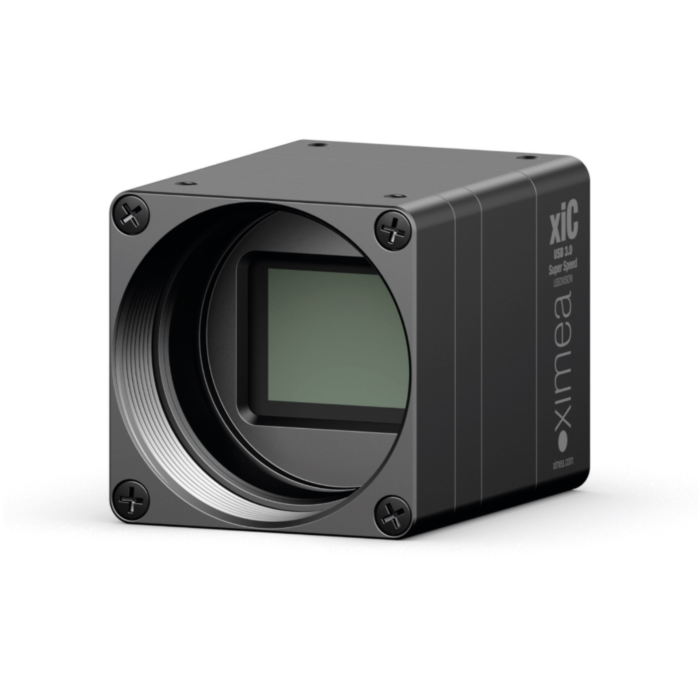

Ximea MC203CG-SY 20.3MP Color USB3 Industrial Camera with Sony IMX541 CMOS Global Shutter, 1.1" Format, 18 FPS, 26.4 x 26.4 x 42 mm
The Ximea MC203CG-SY is a precision-engineered industrial camera featuring a 20.3MP SONY IMX541 CMOS sensor with Pregius™ global shutter technology. With a 1.1" optical format and pixel resolution of 4512 x 4512 at 2.74 µm, this camera delivers exceptional image clarity and reduced motion artifacts. Operating at up to 18 frames per second, it’s ideal for high-resolution imaging tasks that demand real-time capture. Data is transmitted via a USB 3.1 Micro-B interface at speeds up to 5 Gbit/s, while power is supplied directly through the USB cable for easy integration.
The MC203CGSY supports 8/10/12-bit pixel depths, host-based image processing, and ROI/partial readout modes for optimized bandwidth usage. With 70.4 dB dynamic range, 10000 e⁻ full well capacity, and a readout noise of just 2.3 e⁻, it ensures excellent signal integrity. The compact aluminum housing (26.4 × 26.4 × 42.0 mm) and C-mount lens interface make it suitable for embedded vision, microscopy, drone-based mapping, and machine inspection. Features like auto exposure, hot pixel correction, and flat field calibration enhance imaging performance across scientific, industrial, and portable platforms.
Features:
- 20.3MP Sony IMX541 CMOS sensor (Color)
- 4512 x 4512 resolution with 2.74 µm pixel size
- Pregius™ global shutter technology
- 18 FPS full-resolution frame rate
- USB3 interface with 5 Gbit/s data transfer
- 1.1" optical format, 17.5 mm diagonal
- Compact 26.4 x 26.4 x 42.0 mm housing
- C-mount lens interface; alternate mounts available
- Dynamic range: 70.4 dB; Readout noise: 2.3 e⁻
- On-camera hot pixel correction & host-based processing
- Power-efficient (3.2W) via USB bus power
Applications:
- 3D and FACS scanning
- Virtual and augmented reality (VR/AR)
- Retinal and medical imaging
- Aerial photogrammetry and drone mapping
- Industrial and robotic automation
- Semiconductor and FPD inspection
- Low-latency AV streaming for education/presentations
- Scientific microscopy (IR-DIC, cell biology)
| Sensor vendor | SONY |
| Sensor model | IMX541 |
| Sensor technology | CMOS |
| Shutter type | Global shutter |
| Resolution | 20.3 MPix |
| Sensor resolution | 4512 x 4512 |
| Sensor type | Color |
| Sensor size | 1.1" |
| Sensor active area | 12 x 12 mm |
| Sensor diagonal | 17.5 mm |
| Pixel size | 2.74 µm |
| Frame rate | 18 FPS |
| Bits | 8, 10, 12 bits |
| On-chip decimation | 2x2 |
| Interface | USB3 |
| Data interface speed | 5 Gbit/s |
| Data connector type | USB3 Micro-B |
| GPIO count | Inputs: 3, Outputs: 3 |
| Exposure minimum | 15 µs |
| Exposure maximum | 30 s |
| Power consumption | 3.2 Watt |
| Heat dissipation | Natural convection, Optional Heatsink |
| Sensor cooling | No |
| Special features | Backside illumination |
| Dynamic range | 70.4 dB |
| Full well capacity | 10000 e⁻ |
| Saturation capacity | 9486.6 e⁻ |
| Readout noise | 2.3 e⁻ |
| Signal to noise ratio | 40.5 dB |
| Peak QE red | 43% @ 610nm |
| Peak QE green | 57% @ 520nm |
| Peak QE blue | 49% @ 450nm |
| Gain analog max | 24 dB |
| Spectral range | 400 - 1000 nm |
| Lens mount | C-mount |
| Enclosure type | Standard housing |
| Physical dimensions (WHD) | 26.4 x 26.4 x 42.0 mm |
| Mass - weight | 37.5 gram |
| Ambient operating temperature | 0 - 50 °C |
| Storage temperature | -25 - 60 °C |
