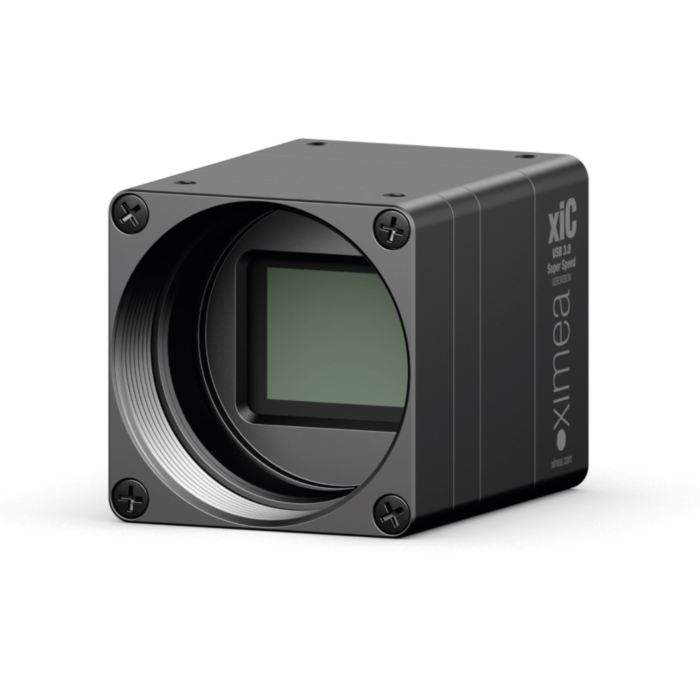

Ximea MC124MG-SY 12.3MP Monochrome USB3 Industrial Camera with Sony IMX253 CMOS Global Shutter Sensor, 30 FPS, 26.4 x 26.4 x 42 mm
The Ximea MC124MG-SY is a high-performance USB3 industrial camera built around the 12.3 MP SONY IMX253 Pregius™ CMOS sensor. Delivering a resolution of 4112 x 3008 with sharp monochrome imaging, the camera captures images at 30 FPS using a global shutter for distortion-free results in high-speed applications. The sensor features a 1.1” optical format, 3.45 µm pixel size, and supports 8, 10, or 12-bit RAW image output. With a dynamic range of 71 dB, peak quantum efficiency of 66%, and low readout noise at just 2.4 e-, it delivers excellent image fidelity and low-light performance.
The MC124MGSY utilizes a USB 3.1 interface with 5 Gbit/s data rates via a Micro-B connector, offering 4x faster performance than GigE. Compact and lightweight at just 26.4 x 26.4 x 42.0 mm and 37.5 g, it supports natural convection cooling and 3-in/3-out GPIOs for precise control and integration. Additional features include on-chip decimation/downsampling, ROI readout, 1 µs to 30 s exposure control, and broad compatibility with Windows, Linux, and macOS platforms. Ideal for machine vision, robotics, VR/AR, scientific imaging, and portable embedded systems.
Features:
- 12.3 MP SONY IMX253 Pregius™ CMOS sensor
- Global shutter with 3.45 µm pixel pitch
- Resolution of 4112 x 3008 at 30 FPS
- USB 3.1 interface (5 Gbit/s) via Micro-B connector
- Compact 26.4 x 26.4 x 42.0 mm housing, 37.5 g weight
- Dynamic range: 71 dB; Readout noise: 2.4 e-
- Exposure range from 1 µs to 30 s
- Supports 8/10/12-bit RAW pixel output
- On-chip ROI, binning, decimation, and auto-exposure/gain
- GPIO: 3 inputs, 3 outputs; opto-isolated and bidirectional
- Compatible with Windows, Linux, and macOS
- SDK/API support for C++, C#, Python
Applications:
- High-speed industrial inspection and quality control
- Face recognition, eye tracking, and biometric scanning
- 3D scanning, motion analysis, and people counting
- Medical imaging, histology, retinal scanning, and microscopy
- Virtual and augmented reality applications
- UAV, drone photogrammetry, and city/outdoor mapping
- Broadcast sports analysis and cinematic motion capture
- Portable embedded systems and mobile robotics
- Semiconductor, FPD, and electronics inspection
- Low latency AV streaming for educational or presentation use
| Sensor Vendor | SONY |
| Sensor Model | IMX253 |
| Sensor Technology | CMOS |
| Sensor Type | Monochrome |
| Resolution | 12.3 MP (4112 x 3008) |
| Pixel Size | 3.45 µm |
| Sensor Size | 1.1" |
| Sensor Active Area | 14 x 10 mm |
| Sensor Diagonal | 17.6 mm |
| Shutter Type | Global Shutter |
| Frame Rate | 30 FPS |
| Bit Depth | 8, 10, 12 bits |
| Interface | USB3.1 (Micro-B) |
| Data Speed | 5 Gbit/s |
| GPIO | 3 Inputs, 3 Outputs |
| Exposure Range | 1 µs to 30 s |
| Power Consumption | 3.4 W |
| Cooling | Natural Convection (Heatsink Optional) |
| Dynamic Range | 71 dB |
| Readout Noise | 2.4 e- |
| Full Well Capacity | 9900 e- |
| Peak Quantum Efficiency | 66% |
| Gain (Analog Max) | 24 dB |
| Spectral Range | 400–1000 nm |
| Lens Mount | C-Mount |
| Dimensions (W x H x D) | 26.4 x 26.4 x 42.0 mm |
| Weight | 37.5 g |
| Operating Temp | 0°C to 50°C |
| Storage Temp | -25°C to 60°C |
| Compliance | CE, FCC, RoHS, USB3 Vision, GenICam |
