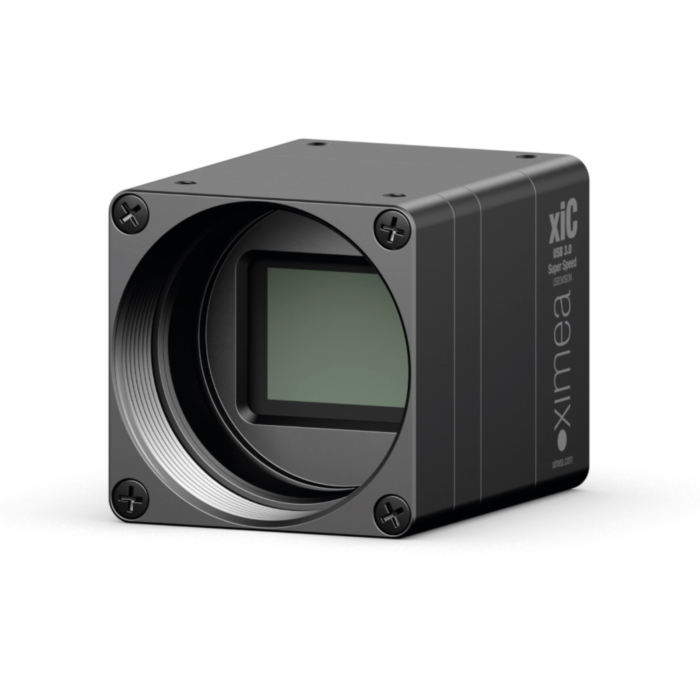

Ximea MC124CG-SY 12.3MP Color USB3 Camera with SONY IMX253 CMOS Global Shutter Sensor, 30 FPS, 26.4 x 26.4 x 42 mm
The Ximea MC124CG-SY industrial camera delivers 12.3 megapixels of crisp, high-speed imaging powered by the SONY IMX253 1.1" CMOS sensor with global shutter technology. Engineered for demanding vision applications, the camera captures full-resolution 4112 x 3008 images at 30 FPS over a USB3 interface, achieving data throughput of 5 Gbit/s. With a compact 26.4 x 26.4 mm footprint and low 3.4 W power draw, it’s ideal for embedded and space-constrained systems.
Designed with Pregius™ sensor technology, the MC124CGSY ensures exceptional image quality with low readout noise (2.4 e-), high dynamic range (70.9 dB), and a full well capacity of 9900 e-. The camera supports 8/10/12-bit RAW output, ROI, binning, skipping, and advanced image processing such as auto gain, auto exposure, and host-assisted flat field corrections. Integrated GPIO, robust USB3 Micro-B interface with locking screws, and standard C-mount optics make integration straightforward in machine vision, robotics, broadcasting, and scientific imaging.
Features:
- 12.3 MP Color CMOS sensor (4112 x 3008 resolution)
- SONY IMX253 1.1" format with Pregius™ global shutter
- 30 FPS full resolution via USB 3.1 Gen1 interface
- Pixel size: 3.45 µm | Sensor size: 14 x 10 mm
- High dynamic range: 70.9 dB | Low readout noise: 2.4 e-
- Data throughput: 5 Gbit/s over USB3 Micro-B connector
- Supports ROI, binning, skipping, 8/10/12-bit RAW output
- Advanced processing: auto gain/exposure, LUT, gamma
- Compact: 26.4 x 26.4 x 42.0 mm, 37.5 g
- Power consumption: 3.4 W | No cooling required
- GPIO: 3 inputs / 3 outputs, trigger & strobe support
- C-mount lens interface with optional S/CS mounts
- Certified: CE, FCC, RoHS, GenICam, USB3 Vision
Applications:
- 3D scanning, facial recognition, eye tracking, people counting
- Virtual reality and motion capture systems
- Medical imaging, histology, retinal scanning, biometrics
- Photogrammetry and aerial drone mapping
- Broadcast instant replay, motion analytics (sports, entertainment)
- Machine vision: inspection, metrology, semiconductors, robotics
- Portable embedded systems, compact robotic arms, LoLa streaming
| Sensor Vendor | SONY |
| Sensor Model | IMX253 |
| Sensor Technology | CMOS |
| Sensor Type | Color |
| Shutter Type | Global shutter |
| Resolution | 12.3 MPix |
| Sensor Resolution | 4112 x 3008 |
| Sensor Size | 1.1" |
| Sensor Active Area | 14 x 10 mm |
| Sensor Diagonal | 17.6 mm |
| Pixel Size | 3.45 µm |
| Frame Rate | 30 FPS |
| Bit Depth | 8, 10, 12 bits |
| On-Chip Decimation | 2x2 |
| Interface | USB3 |
| Data Interface Speed | 5 Gbit/s |
| Data Connector Type | USB3 Micro-B |
| GPIO Count | Inputs: 3, Outputs: 3 |
| Exposure Minimum | 1 µs |
| Exposure Maximum | 30 s |
| Power Consumption | 3.4 Watt |
| Heat Dissipation | Natural convection, Optional Heatsink |
| Sensor Cooling | No |
| Dynamic Range | 70.9 dB |
| Full Well Capacity | 9900 e- |
| Saturation Capacity | 10521.0 e- |
| Readout Noise | 2.4 e- |
| Signal to Noise Ratio | 40.8 dB |
| Peak QE Red | 58% @ 600nm |
| Peak QE Green | 61% @ 520nm |
| Peak QE Blue | 50% @ 450nm |
| Max Analog Gain | 24 dB |
| Spectral Range | 400 - 1000 nm |
| Lens Mount | C-mount |
| Enclosure Type | Standard housing |
| Physical Dimensions (WHD) | 26.4 x 26.4 x 42.0 mm |
| Weight | 37.5 gram |
| Ambient Operating Temperature | 0 - 50 °C |
| Storage Temperature | -25 - 60 °C |
| Ingress Protection | IP40 |
| Conformity | CE, FCC, RoHS, GenICam, USB3 Vision |
