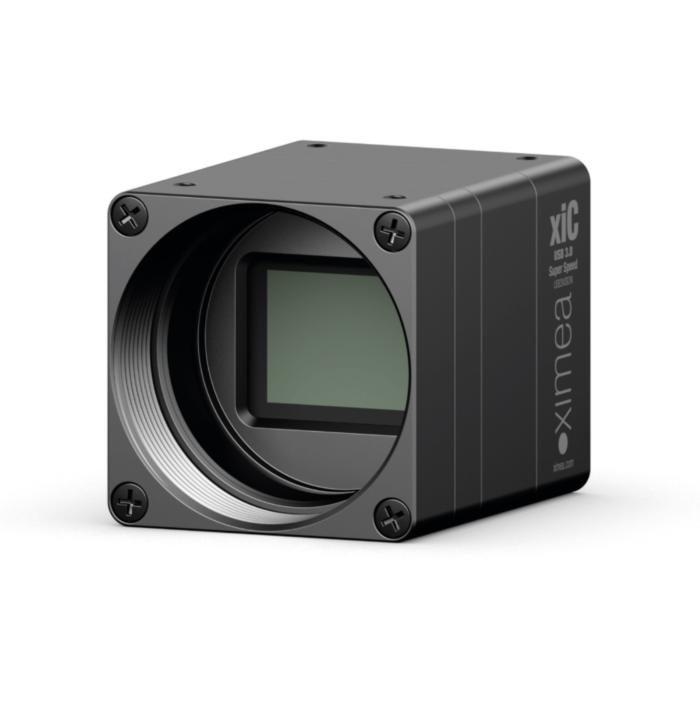

Ximea MC124CG-SY-PG4-HDR 12.4MP Color USB3 Camera with SONY IMX535 CMOS Global Shutter Sensor, 29 FPS, 26.4 x 26.4 x 42.14 mm
The Ximea MC124CG-SY-PG4-HDR is a high-resolution industrial USB3 vision camera engineered with the Sony IMX535 12.4 Megapixel CMOS sensor, providing 4128 x 3008 resolution and advanced Pregius™ global shutter technology. With a pixel size of 2.74 µm on a 1/1.1" sensor, this model delivers exceptional detail and low noise, capturing full-frame color images at 29 FPS. It supports 8-, 10-, and 12-bit output with on-chip decimation and region of interest (ROI), optimizing both bandwidth and field of view control for high-precision inspection, metrology, and tracking systems.
This USB 3.1 Gen 1 camera offers a 5 Gbps data interface, dual ADC architecture, and a low-power compact housing of 26.4 x 26.4 x 42.14 mm, weighing just 35.9 grams. It includes 3 input and 3 output GPIOs, C-mount lens support, hardware/software triggering, and field-upgradable firmware. Featuring automatic gain, exposure, and white balance adjustments, host-side processing options, hot pixel correction for up to 5000 coordinates, and broad OS compatibility (Windows, Linux, Mac), the MC124CGSYPG4HDR is optimized for machine vision, medical imaging, aerial mapping, and broadcast-grade applications.
Features:
- 12.4MP resolution (4128 x 3008) with Sony IMX535 CMOS sensor
- Global shutter technology for high-speed, distortion-free imaging
- 1/1.1" sensor size with 2.74 µm pixel pitch
- Captures up to 29 frames per second
- USB 3.1 Gen1 interface with 5 Gbps bandwidth
- Dual ADC for extended dynamic range
- 8, 10, and 12-bit RAW image output support
- Compact form factor: 26.4 x 26.4 x 42.14 mm, only 35.9 g
- C-mount lens support with optional CS- and S-mount adapters
- 3 input and 3 output GPIOs, configurable I/O with opto-isolation
- Exposure range from 14 µs to 30 seconds
- Auto exposure, gain, and white balance with hot pixel correction
- Host-based image processing: LUT, gamma, sharpening, color matrix
- Hardware/software trigger, strobe output, and busy signal support
- SDK/API support for C++, C#, Python
- Compatible with Windows, Linux, and macOS
Applications:
- Machine vision and factory automation
- High-speed inspection and quality control
- Scientific and medical imaging (microscopy, ophthalmology)
- Aerial mapping and photogrammetry with UAVs and drones
- Augmented and virtual reality (AR/VR), motion tracking
- Broadcast and cinematic capture (slow motion, replays)
- 3D body, facial, and eye scanning
- Robotics and embedded vision integration
- Metrology, semiconductor inspection, and electronics testing
- Low-latency visual systems for education and live presentations
| Sensor Vendor | Sony |
|---|---|
| Sensor Model | IMX535 |
| Sensor Technology | CMOS, Pregius™ |
| Sensor Type | Color |
| Shutter Type | Global Shutter |
| Resolution | 12.4 MP (4128 x 3008) |
| Sensor Size | 1/1.1" |
| Sensor Active Area | 11 x 8.2 mm |
| Sensor Diagonal | 14 mm |
| Pixel Size | 2.74 µm |
| Frame Rate | 29 FPS |
| Bit Depth | 8, 10, 12-bit |
| On-chip Decimation | 2x2 |
| Dual ADC | Yes |
| EMVA Gain Analog Max | 24 dB |
| Interface | USB 3.1 Gen1 (5 Gbps) |
| Data Connector | USB3 Micro-B (Screw Lock) |
| GPIO Count | Inputs: 3, Outputs: 3 |
| General Purpose I/O | 1x opto-isolated input, 1x opto-isolated output, 2x non-isolated bidirectional I/O |
| Exposure Range | 14 µs – 30 s |
| Heat Dissipation | Optional Heatsink |
| Lens Mount | C-mount (optional CS, S-mount adapter, board level) |
| Image Processing | Debayering, LUT, Gamma, Color Matrix, White Balance, Hue, Saturation, Sharpness |
| Auto Adjustments | Auto White Balance, Auto Gain, Auto Exposure |
| Flat Field Correction | Host-assisted lens shading and pixel-level corrections |
| Hot Pixel Correction | Up to 5000 pixels stored on-camera |
| Partial Image Readout | ROI / AOI, Skipping, Binning |
| Signal Conditioning | Programmable debounce time |
| Synchronization | Hardware trigger input, software trigger, strobe output, busy output |
| Dimensions (W x H x D) | 26.4 x 26.4 x 42.14 mm |
| Weight | 35.9 g |
| Power Consumption | 2.9 W (USB Bus Powered) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +60°C |
| Humidity | 0–80% RH non-condensing |
| Ingress Protection | IP40 |
| Viewer Software | CamTool |
| Firmware Updates | Field-upgradable via xiCOP tool |
| SDK / API | C++, C#, Python |
| Operating Systems | Windows 7/10 (x86/x64), Linux Ubuntu, macOS 10.11+ |
| Minimum Host Hardware | Intel i3 3.0GHz, 2GB RAM, NVIDIA/Radeon 128MB, USB 3.0 host |
| Compliance | CE, FCC, RoHS, USB3 Vision, GenICam/GenTL |
