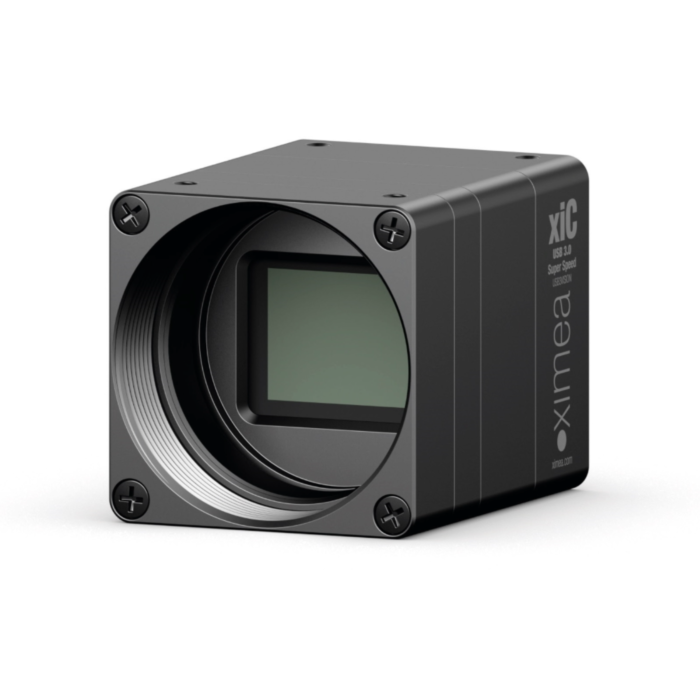

Ximea MC051MG-SY-PG4 5.1MP Monochrome USB3 Camera with Sony IMX547 CMOS Global Shutter Sensor, 68 FPS, C-Mount, 26.4 x 26.4 x 42.14 mm
SKU
MC051MG-SY-PG4
Quick Overview
Ximea MC051MG-SY-PG4 is a 5.1MP monochrome USB3 camera with Sony IMX547 CMOS sensor, global shutter at 68 FPS, 2.74 µm pixel pitch, C-mount lens, 26.4 x 26.4 x 42.14 mm housing, 3-in/3-out GPIO, and 8/10/12-bit output for high-speed industrial, scientific, and precision imaging applications.
The Ximea MC051MG-SY-PG4 (MC051MGSYPG4) is a high-performance USB3 industrial camera equipped with the Sony IMX547 Pregius™ 1/1.8" CMOS global shutter sensor, delivering sharp 5.1 Megapixel monochrome resolution at 2472 x 2064 pixels. Engineered for precision, the 2.74 µm pixel size ensures high sensitivity and low noise, ideal for detailed inspection tasks. The global shutter architecture eliminates motion artifacts, making it perfect for high-speed applications.
With a maximum frame rate of 68 FPS, 8/10/12-bit output, and support for ROI, binning, and skipping, this camera excels in speed-critical environments. The USB 3.1 Gen1 interface enables 5 Gbit/s data throughput, while the compact 26.4 x 26.4 x 42.14 mm form factor and C-mount lens interface allow seamless integration into embedded and industrial systems. Optional heatsinks, robust GPIO (3 inputs, 3 outputs), and support for Windows, Linux, and macOS platforms make it a versatile solution for machine vision, metrology, scientific imaging, and automation.
Features:
- 5.1 MP resolution with 2472 x 2064 pixel matrix
- Monochrome SONY IMX547 CMOS sensor with Pregius™ global shutter technology
- High-speed frame rate up to 68 FPS
- Compact 26.4 x 26.4 x 42.14 mm housing ideal for tight installations
- Pixel size: 2.74 µm for sharp detail and high sensitivity
- USB 3.1 Gen1 interface with 5 Gbit/s data rate and Micro-B connector
- Supports 8, 10, and 12-bit RAW output
- Programmable GPIO: 3 inputs, 3 outputs with opto-isolation and LED support
- Wide exposure range from 9 µs to 30 s
- Supports ROI/AOI, binning, skipping, and image enhancement features
- Auto white balance, auto gain, and auto exposure
- Low power consumption at just 2.7 Watts
- Field-upgradable firmware via xiCOP tool
- C-mount lens compatibility, with optional CS, S-mount, or board-level variants
- Certified with CE, FCC, RoHS, USB3 Vision, GenICam/GenTL standards
Applications:
- Machine Vision & Automation: Quality inspection, precision molding, robotic guidance, and semiconductor metrology
- Medical & Scientific Imaging: Ophthalmology, histology, retinal imaging, life sciences, and microscopy (IR-DIC)
- Biometric & Security Systems: Face recognition, eye tracking, people counting, 3D & FACS scanning
- Broadcast & Sports Analysis: Instant replays, slow-motion capture of sports like golf, baseball, hockey, and tennis
- Virtual & Augmented Reality: VR/AR headsets, motion capture, panoramic video, cinematography
- Aerial Mapping: Photogrammetry and videogrammetry using UAVs and autonomous mapping vehicles
- Low Latency Streaming: LoLa systems for real-time AV in education, presentations, and remote collaboration
- Portable & Embedded Systems: Compact integration for mobile robotics, field inspection, and OEM designs
| Resolution | 5.1 MPix |
| Sensor resolution | 2472 x 2064 |
| Sensor vendor | SONY |
| Sensor model | IMX547 |
| Sensor type | Monochrome |
| Sensor technology | CMOS |
| Sensor size | 1/1.8" |
| Sensor active area | 6.8 x 5.7 mm |
| Sensor diagonal | 8.8 mm |
| Pixel size | 2.74 µm |
| Shutter type | Global shutter |
| Frame rate | 68 FPS |
| Bits | 8, 10, 12 bits |
| On-chip downsampling | 2x2 |
| On-chip decimation | 2x2 |
| Interface | USB3 |
| Data interface speed | 5 Gbit/s |
| Data connector type | USB3 Micro-B |
| GPIO count | Inputs: 3, Outputs: 3 |
| Exposure minimum | 9 µs |
| Exposure maximum | 30 s |
| Power consumption | 2.7 Watt |
| Heat dissipation | Optional Heatsink |
| Gain analog max | 24 dB |
| Lens mount | C-mount |
| Enclosure type | Standard housing |
| Physical dimensions (WHD) | 26.4 x 26.4 x 42.14 mm |
| Mass - weight | 35.9 gram |
| Ambient operating temperature | 0 - 50 °C |
| Storage Temperature | -25 - 60 °C |
| Feature set for xiC family | |
| Sensor technology | CMOS, Pregius™ technology |
| Acquisition modes | Global shutter |
| Digital Output | 8, 10, 12 bit RAW pixel data digitization |
| USB3 Interface | USB 3.1 default Micro-B with screw lock threads, optional Type-C, flex flat ribbon cable or Micro Coax connectors for embedded vision |
| General purpose I/O | 1x opto-isolated input, 1x opto-isolated output, and 2 non-isolated bidirectional I/O, 4X user configurable LEDs |
| Synchronization | Hardware trigger input, software trigger, exposure strobe output, busy output |
| Power requirements | Bus powered via USB3 interface |
| Lens mount | Standard C mount. Available options are CS mount, S-mount (M12) adapter and board level |
| Partial image readout | ROI / AOI (region / area of interest); Skipping and Binning modes supported |
| Image processing | Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance |
| Hot pixel correction | On camera storage of up to 5000 pixel coordinates; host assisted correction |
| Auto adjustments | Auto white balance; auto gain; auto exposure |
| Flat field corrections | Host assisted pixel level shading and lens corrections |
| Signal conditioning | Programmable debouncing time |
| SDK / API | Programmable with C++ and C#, Python |
| Software support | one API / SDK for all cameras, adapters and drivers for various image processing Libraries |
| Firmware updates | Field firmware update through xiCOP tool |
| Viewer | CamTool viewer |
| Operating systems | Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS 10.11 and newer |
| Minimum host hardware | Intel i3 3.0GHz, +2GB RAM memory, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter |
| Environment side | Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage Ingress Protection: IP40 |
| Conformity | CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed, USB3 Vision Compliant |
