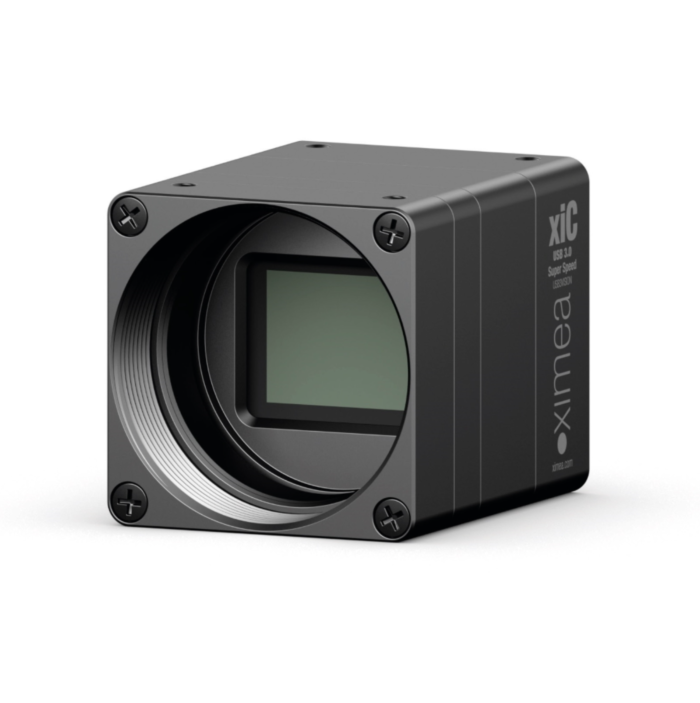

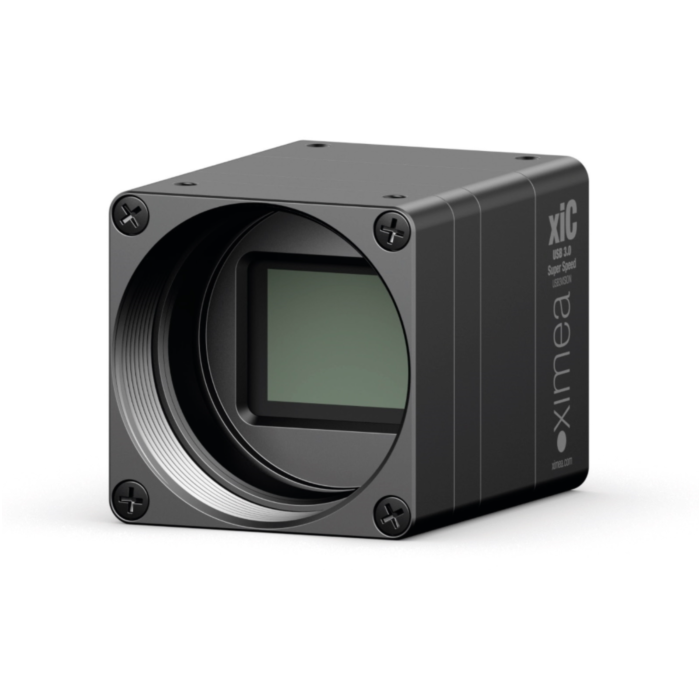

Ximea MC051CG-SY-PG4-HDR 5.1MP Color USB3 Camera with Sony IMX537 CMOS Global Shutter Sensor, 69 FPS, Dual ADC HDR, C-Mount, 26.4 x 26.4 x 42.14 mm
he Ximea MC051CG-SY-PG4-HDR is a high-performance industrial vision camera equipped with a 5.1 Megapixel Sony IMX537 CMOS global shutter sensor. Featuring a 1/1.8" sensor size, 2.74 µm pixel pitch, and a resolution of 2472 x 2064, it captures ultra-sharp color images at up to 69 FPS with low latency. The sensor uses Sony’s Pregius™ technology to ensure accurate color reproduction, excellent dynamic range, and precise motion capture without distortion—making it ideal for machine vision, scientific, and broadcast applications.
This USB3 Vision-compliant camera features an ultra-compact 26.4 x 26.4 x 42.14 mm housing and a secure USB 3.1 Gen1 Micro-B interface with a transfer speed of 5 Gbit/s. It supports 8, 10, and 12-bit RAW output, dual ADC HDR imaging, hot pixel correction (up to 5000 stored coordinates), programmable ROI/binned readout, and onboard I/O with opto-isolated and user-configurable lines. Compatible across Windows, Linux, and macOS platforms, the MC051CGSYPG4HDR offers a reliable, plug-and-play solution for high-speed vision systems requiring superior image quality and precise control.
Features:
- 5.1 MP resolution (2472 x 2064) with Sony IMX537 CMOS sensor
- Global shutter with Pregius™ technology
- Captures up to 69 frames per second
- USB 3.1 Gen1 Micro-B interface, 5 Gbit/s data rate
- 8/10/12-bit RAW pixel output
- Dual ADC HDR imaging for high dynamic range
- Hot pixel correction (up to 5000 stored points)
- Compact 26.4 x 26.4 x 42.14 mm housing
- Supports ROI, binning, decimation modes
- GPIO: 3 inputs, 3 outputs (opto-isolated + bidirectional)
- C-Mount lens with flexible mounting options
- Onboard white balance, LUT, de-Bayer, gain, and gamma controls
- Cross-platform SDK support (Windows, Linux, MacOS)
- Only 2.7W power consumption (bus powered via USB)
Applications:
- Factory and machine vision automation
- High-speed inspection and quality control
- 3D scanning and motion capture systems
- Face, eye, and body tracking applications
- VR, AR, and 360° panoramic content creation
- Scientific imaging and medical diagnostics
- UAV and drone-based photogrammetry
- Low-latency broadcasting and replays
- Precision robotics and metrology
- Semiconductor and electronics inspection
| Resolution | 5.1 MPix |
| Sensor resolution | 2472 x 2064 |
| Sensor vendor | SONY |
| Sensor model | IMX537 |
| Sensor type | Color |
| Sensor technology | CMOS |
| Sensor size | 1/1.8" |
| Sensor active area | 6.8 x 5.7 mm |
| Sensor diagonal | 8.8 mm |
| Pixel size | 2.74 µm |
| Shutter type | Global shutter |
| Frame rate | 69 FPS |
| Bits | 8, 10, 12 bits |
| On-chip decimation | 2x2 |
| Interface | USB3 |
| Data interface speed | 5 Gbit/s |
| Data connector type | USB3 Micro-B |
| GPIO count | Inputs: 3, Outputs: 3 |
| Exposure minimum | 9 µs |
| Exposure maximum | 30 s |
| Power consumption | 2.7 Watt |
| Heat dissipation | Optional Heatsink |
| Special features | Dual ADC |
| Gain analog max | 24 dB |
| Lens mount | C-mount |
| Enclosure type | Standard housing |
| Physical dimensions (WHD) | 26.4 x 26.4 x 42.14 mm |
| Mass - weight | 35.9 gram |
| Ambient operating temperature | 0 - 50 °C |
| Storage Temperature | -25 - 60 °C |
