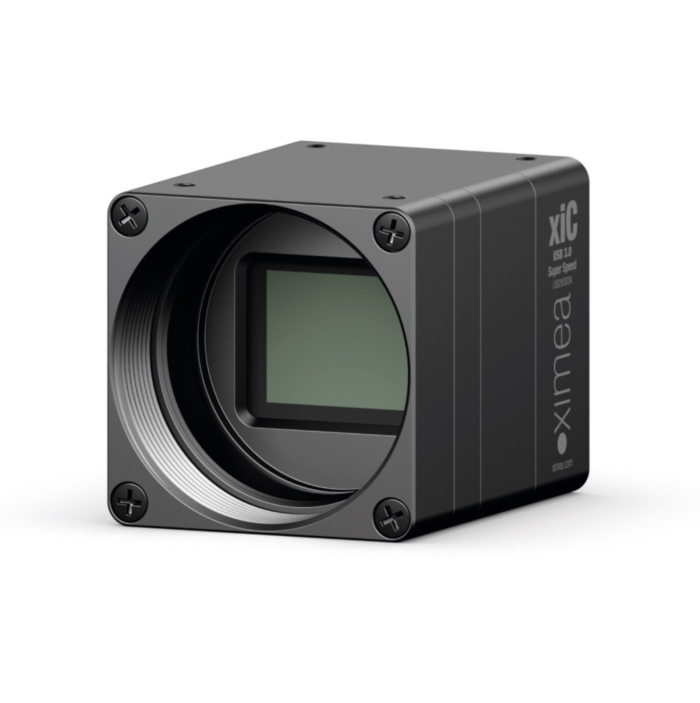

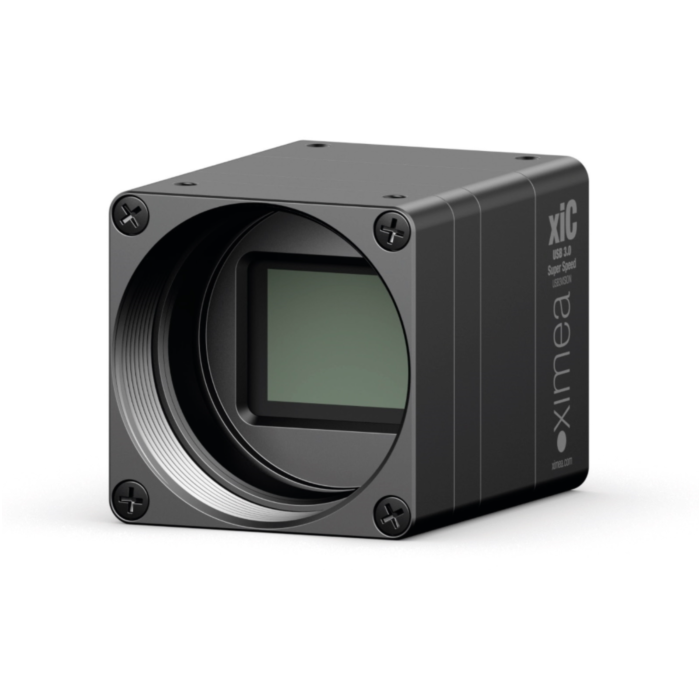

Ximea MC050CG-SY 5MP Color USB3 Camera Sony IMX250 CMOS Global Shutter 73 FPS 26.4 x 26.4 x 41.9 mm
The Ximea MC050CG-SY (MC050CGSY) industrial USB3 camera is equipped with a 5 Megapixel Sony IMX250 color CMOS sensor featuring Pregius™ global shutter technology. This sensor delivers a resolution of 2464 x 2056 pixels with a 3.45 µm pixel size on a 2/3" optical format, ensuring sharp, distortion-free images at high frame rates up to 73 FPS. The camera supports 8, 10, and 12-bit RAW pixel data output and leverages a USB 3.1 Gen1 interface for ultra-fast data transmission at 5 Gbit/s. Its compact 26.4 x 26.4 x 41.9 mm form factor and low power consumption of 3.1 Watts make it ideal for tight industrial environments.
Advanced features include a standard C-mount lens interface, flexible exposure times from 1 µs to 30 seconds, and multiple GPIOs for hardware synchronization and triggering. EMVA 1288 compliant results report a dynamic range of 71.1 dB, low readout noise of 2.4 electrons, and high full well capacity, enabling outstanding image quality for demanding machine vision, scientific imaging, and inspection applications. The camera is fully programmable with APIs in C++, C#, and Python and supports multiple operating systems including Windows, Linux, and macOS.
Features:
- 5 MP Sony IMX250 color CMOS sensor with global shutter
- 2464 x 2056 resolution, 3.45 µm pixel size, 2/3" sensor size
- Up to 73 FPS frame rate via USB 3.1 Gen1 (5 Gbit/s) interface
- 8/10/12-bit RAW output with hardware and software trigger options
- Compact 26.4 x 26.4 x 41.9 mm housing, low 3.1 W power consumption
- EMVA 1288 compliant: 71.1 dB dynamic range, 2.4 e- read noise
- C-mount lens compatibility, GPIO with 3 inputs and 3 outputs
- Exposure range from 1 µs to 30 seconds, multiple software SDKs
- Cross-platform support: Windows, Linux, macOS
Applications:
- High-speed machine vision and industrial inspection
- Scientific and medical imaging, microscopy
- Robotics and automation vision systems
- Aerial mapping with drones and UAVs
- Virtual reality and augmented reality imaging
- Quality control for electronics and semiconductors
- Low latency streaming and broadcasting
| Sensor Vendor | SONY |
| Sensor Model | IMX250 |
| Sensor Technology | CMOS, Pregius™ |
| Sensor Type | Color |
| Resolution | 2464 x 2056 (5 MPix) |
| Pixel Size | 3.45 µm |
| Sensor Size | 2/3" |
| Sensor Active Area | 8.5 x 7.1 mm |
| Shutter Type | Global Shutter |
| Frame Rate | 73 FPS |
| Interface | USB 3.1 Gen1 (5 Gbit/s) |
| Data Connector | USB 3 Micro-B |
| Bits | 8, 10, 12 bits |
| Exposure Range | 1 µs to 30 s |
| GPIO | 3 Inputs, 3 Outputs |
| Lens Mount | Standard C-Mount |
| Power Consumption | 3.1 Watts |
| Dimensions (W x H x D) | 26.4 x 26.4 x 41.9 mm |
| Weight | 37.5 grams |
| Operating Temperature | 0°C to 50°C |
| Dynamic Range (EMVA 1288) | 71.1 dB |
| Readout Noise | 2.4 e- RMS |
