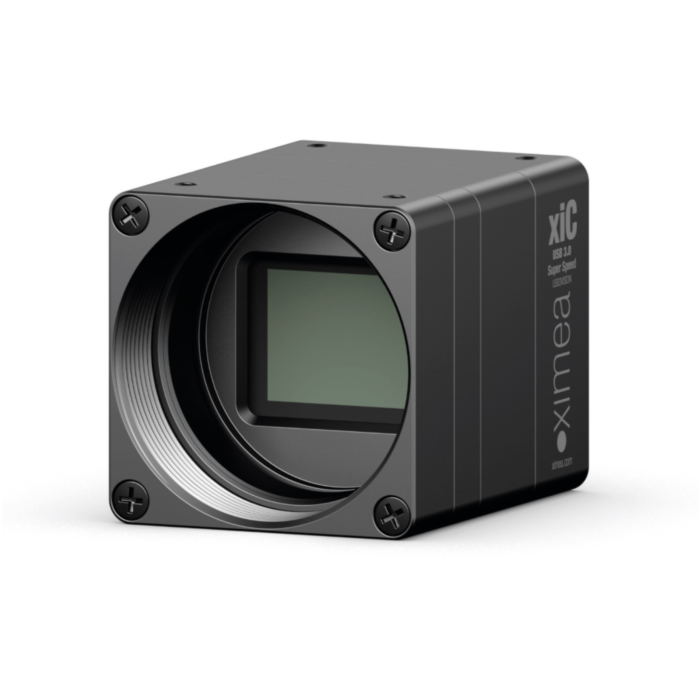

Ximea MC031MG-SY 3.1MP Monochrome USB3 Camera Sony IMX252 CMOS Global Shutter 116 FPS 26.4 x 26.4 x 41.9 mm
The Ximea MC031MG-SY is a compact industrial USB3 camera featuring the 3.1 Megapixel Sony IMX252 global shutter CMOS sensor. Capturing crisp monochrome images at 2064 x 1544 resolution with a pixel size of 3.45 µm, this model offers high-speed performance of up to 116 frames per second over a USB 3.1 Gen1 interface (5 Gbit/s). Its global shutter ensures distortion-free image capture for fast-moving objects, making it ideal for precision machine vision, robotics, and metrology systems. The sensor’s 1/1.8" optical format and 8.9 mm diagonal provide excellent sensitivity, supported by 8, 10, and 12-bit raw data output and an exceptional dynamic range of 71.2 dB.
Designed for high-performance environments, the MC031MG-SY supports ROI, hardware/software triggering, and full control of exposure, gain, and white balance. EMVA 1288 stats include a low readout noise of 2.4 e⁻ and a peak quantum efficiency of 66%. Its compact 26.4 x 26.4 x 41.9 mm housing includes a standard C-Mount lens interface and a USB3 Micro-B connector with screw-lock. GPIO includes 3 inputs and 3 outputs for synchronization, strobe, and I/O control. With just 3.1W power consumption and fanless passive cooling, this camera is ready for integration into embedded systems, UAV imaging, medical imaging, and scientific research platforms.
Features:
- 3.1 MP Sony IMX252 CMOS monochrome sensor (2064 x 1544 resolution)
- Global shutter for distortion-free motion capture
- Up to 116 fps via USB 3.1 Gen1 interface (5 Gbps)
- 8, 10, 12-bit RAW image data support
- Pixel size: 3.45 µm; Dynamic range: 71.2 dB
- GPIO: 3 inputs, 3 outputs for I/O and trigger control
- EMVA 1288: 2.4 e⁻ read noise, 66% QE
- Power-efficient: 3.1W, passive heat dissipation
- Standard C-Mount lens compatibility
- Ultra-compact 26.4 x 26.4 x 41.9 mm housing
Applications:
- Machine vision and quality inspection
- Scientific and medical imaging (microscopy, ophthalmology)
- Robotic vision and automation systems
- Aerial mapping with UAVs and drones
- 3D scanning, eye tracking, and motion capture
- Virtual and augmented reality (VR/AR)
- Semiconductor and PCB inspection
- High-speed industrial process monitoring
- Education and live streaming (LoLa use)
| Resolution | 3.1 MPix |
| Sensor Resolution | 2064 x 1544 |
| Sensor Vendor | SONY |
| Sensor Model | IMX252 |
| Sensor Type | Monochrome |
| Sensor Technology | CMOS |
| Sensor Size | 1/1.8" |
| Sensor Active Area | 7.1 x 5.3 mm |
| Sensor Diagonal | 8.9 mm |
| Pixel Size | 3.45 µm |
| Shutter Type | Global shutter |
| Frame Rate | 116 FPS |
| Bits | 8, 10, 12 bits |
| On-chip Downsampling | 1x2 |
| On-chip Decimation | 2x2 |
| Interface | USB3 |
| Data Interface Speed | 5 Gbit/s |
| Data Connector Type | USB3 Micro-B |
| GPIO Count | Inputs: 3, Outputs: 3 |
| Exposure Minimum | 1 µs |
| Exposure Maximum | 30 s |
| Power Consumption | 3.1 Watt |
| Heat Dissipation | Natural convection, Optional Heatsink |
| Sensor Cooling | No |
| Dynamic Range | 71.2 dB |
| Full Well Capacity | 9900 e⁻ |
| Saturation Capacity | 10638.3 e⁻ |
| Readout Noise | 2.4 e⁻ |
| Signal to Noise Ratio | 40.7 dB |
| Peak Quantum Efficiency (QE) | 66% |
| Gain Analog Max | 24 dB |
| Spectral Range | 400 - 1000 nm |
| Lens Mount | C-mount |
| Enclosure Type | Standard housing |
| Physical Dimensions (W x H x D) | 26.4 x 26.4 x 41.9 mm |
| Mass (Weight) | 37.5 grams |
| Ambient Operating Temperature | 0 - 50 °C |
| Storage Temperature | -25 - 60 °C |
