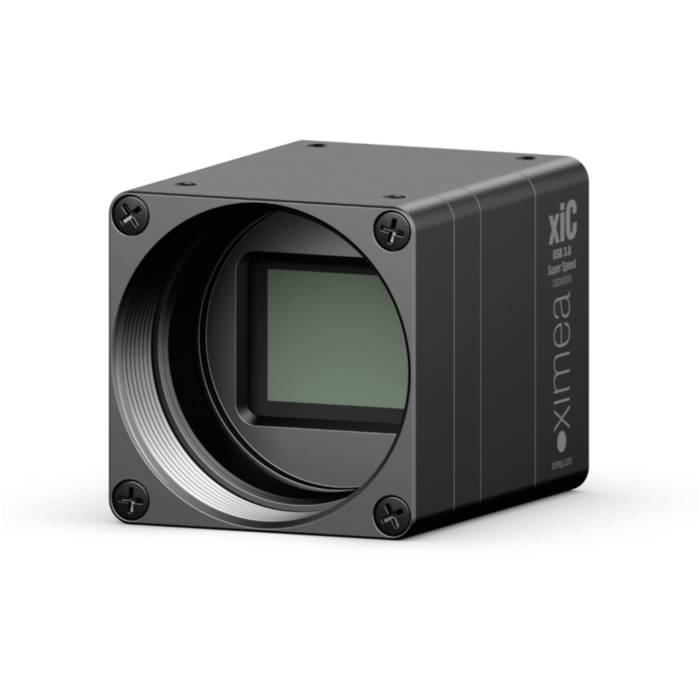

Ximea MC031CG-SY 3.1MP Color USB3 Camera with Sony IMX252 Global Shutter Sensor 116 FPS 26.4 x 26.4 x 41.9 mm
The Ximea MC031CG-SY is a high-speed USB 3.1 industrial camera equipped with a 3.1 MP SONY IMX252 color CMOS sensor featuring Pregius™ global shutter technology. Delivering a resolution of 2064 x 1544 pixels with a pixel size of 3.45 µm, it supports up to 116 frames per second at full resolution, ensuring fast and accurate capture of high-motion or detailed scenes. The camera outputs 8, 10, or 12-bit RAW pixel data with a wide spectral response from 400–1000 nm, delivering a high dynamic range of 71.1 dB and low readout noise of just 2.3 e⁻ for outstanding image quality in challenging environments.
Compact and lightweight (26.4 x 26.4 x 41.9 mm, 37.5 g), the MC031CGSY is engineered for embedded and space-constrained systems. It includes advanced features such as ROI readout, image sharpening, gamma correction, flat field correction, and host-assisted color processing. With a USB 3.1 Micro-B interface supporting 5 Gbit/s data rates, standard C-mount compatibility, and exposure control ranging from 1 µs to 30 s, this camera is ideal for use in machine vision, medical imaging, 3D scanning, UAV photogrammetry, AR/VR capture, and scientific applications.
Features:
- 3.1 MP SONY IMX252 CMOS sensor (2064 x 1544 resolution)
- Global Shutter with Pregius™ technology
- Up to 116 FPS at full resolution
- 8/10/12-bit RAW pixel output
- USB 3.1 Gen1 (5 Gbit/s) Micro-B with locking thread
- Compact size: 26.4 x 26.4 x 41.9 mm, only 37.5 g
- Exposure time: 1 µs to 30 s
- Low readout noise: 2.3 e⁻ | Dynamic Range: 71.1 dB
- C-Mount lens support, optional S-mount or board-level
- Advanced image processing: ROI, Gamma, LUT, de-Bayering
- GPIO: 3 inputs / 3 outputs | Trigger input and strobe output
- Passive cooling, 3.1 W power consumption
Applications:
- 3D scanning, FACS, facial recognition
- Medical imaging, ophthalmology, microscopy
- AR/VR motion capture and 360° video
- Aerial mapping via drones/UAVs
- Cinematography and broadcasting slow-motion capture
- Factory automation, semiconductor inspection
- Portable robotic vision and LoLa streaming setups
| Sensor Vendor | SONY |
|---|---|
| Sensor Model | IMX252 |
| Sensor Type | CMOS, Color |
| Resolution | 3.1 MP (2064 x 1544) |
| Pixel Size | 3.45 µm |
| Sensor Size | 1/1.8" |
| Sensor Active Area | 7.1 x 5.3 mm |
| Sensor Diagonal | 8.9 mm |
| Shutter Type | Global Shutter (Pregius™) |
| Frame Rate | 116 FPS |
| Bit Depth | 8 / 10 / 12-bit |
| Spectral Range | 400 – 1000 nm |
| Dynamic Range | 71.1 dB |
| Readout Noise | 2.3 e⁻ |
| Full Well Capacity | 9900 e⁻ |
| Saturation Capacity | 10310.5 e⁻ |
| Peak QE (Red) | 58% @ 600nm |
| Peak QE (Green) | 61% @ 520nm |
| Peak QE (Blue) | 50% @ 450nm |
| Gain (Analog Max) | 24 dB |
| Interface | USB 3.1 Gen1 (5 Gbit/s) |
| Connector Type | USB3 Micro-B with Screw Lock |
| Exposure Time | 1 µs to 30 s |
| Power Consumption | 3.1 W (Bus Powered) |
| Cooling | Passive / Optional Heatsink |
| Lens Mount | C-Mount (Optional S/CS-Mounts) |
| Dimensions (W x H x D) | 26.4 x 26.4 x 41.9 mm |
| Weight | 37.5 g |
| GPIO | 3 Inputs / 3 Outputs |
| Operating Temp | 0°C to 50°C |
| Storage Temp | -25°C to 60°C |
| Ingress Protection | IP40 |
| Certifications | CE, FCC, RoHS, GenICam, USB3 Vision |
