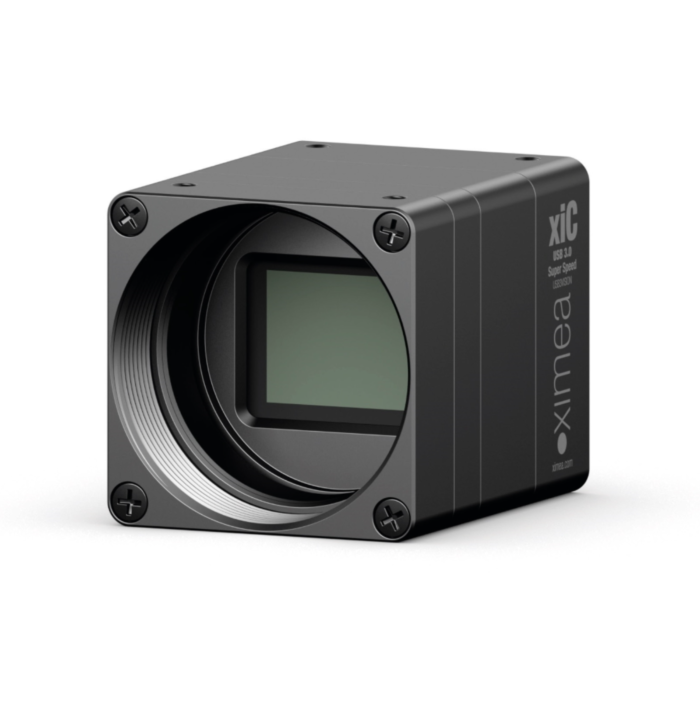

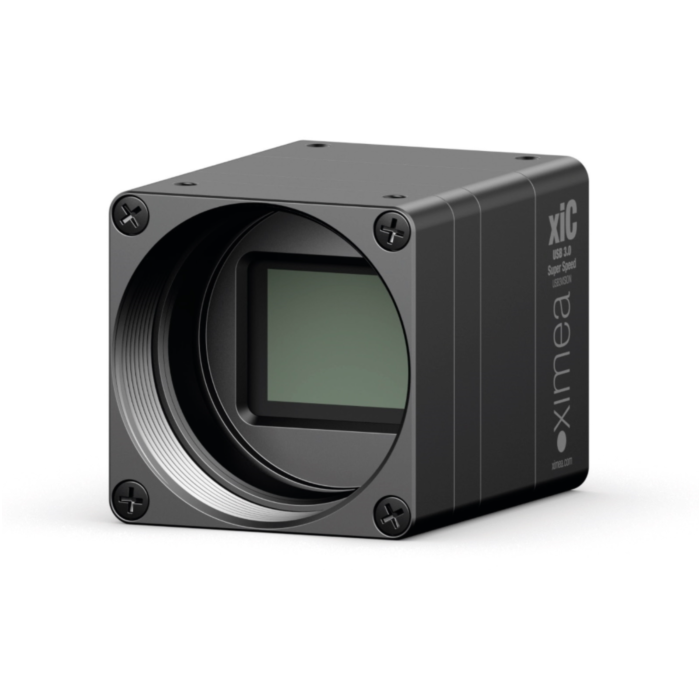

Ximea MC023MG-SY Monochrome Camera 2.3MP SONY IMX174 CMOS USB3 Global Shutter 156FPS, 26.4×26.4×42mm
The Ximea MC023MG-SY (MC023MGSY) is a compact industrial camera engineered for high-performance imaging applications that demand speed, precision, and clarity. Equipped with a 2.3 Megapixel SONY IMX174 monochrome CMOS sensor, it captures ultra-sharp images at a resolution of 1936 x 1216 with a global shutter for distortion-free capture of fast-moving objects. Delivering an impressive frame rate of up to 156 fps and featuring a USB 3.1 Gen1 interface with a 5 Gbit/s data throughput, this camera offers 10x the bandwidth of USB 2.0, ensuring rapid data transfer in real-time applications.
Built on SONY's Pregius™ technology, this camera provides a 72.1 dB dynamic range, 7.6 e⁻ readout noise, and a peak quantum efficiency of 79% for superior low-light and high-contrast performance. With a pixel size of 5.86 µm, C-mount lens compatibility, and a compact 26.4 x 26.4 x 42 mm enclosure, it is ideal for embedded systems and space-constrained environments. Applications include scientific imaging, VR/AR, medical microscopy, aerial mapping, machine vision, and more.
Features:
- 2.3 MP (1936 × 1216) Monochrome CMOS Sensor – SONY IMX174
- Global Shutter with 156 FPS at full resolution
- USB 3.1 Gen1 Interface (5 Gbit/s) – USB3 Vision Compliant
- High dynamic range: 72.1 dB | Low read noise: 7.6 e⁻
- 5.86 µm pixel size | 13.4 mm sensor diagonal
- Compact design: 26.4 x 26.4 x 42 mm, 37.5g
- C-Mount lens | GPIO: 3 in / 3 out
- Exposure range: 20 µs to 30 s
- Peak quantum efficiency: 79%
- Host-controlled processing: de-Bayering, LUT, white balance, shading
Applications:
- Machine Vision & Factory Automation
- High-Speed Inspection & Quality Control
- VR / AR Systems & Motion Capture
- Aerial Mapping via UAVs or Drones
- Medical Imaging & Scientific Microscopy
- Face & Eye Tracking, Biometrics
- Broadcasting & Sports Replay Analysis
- Embedded Vision Systems
- Low Latency Streaming (LoLa) Applications
| Resolution | 2.3 MPix |
| Sensor Resolution | 1936 x 1216 |
| Sensor Vendor | SONY |
| Sensor Model | IMX174 |
| Sensor Type | Monochrome |
| Sensor Technology | CMOS |
| Sensor Size | 1/1.2" |
| Sensor Active Area | 11 x 7.1 mm |
| Sensor Diagonal | 13.4 mm |
| Pixel Size | 5.86 µm |
| Shutter Type | Global Shutter |
| Frame Rate | 156 FPS |
| Bit Depth | 10, 12 bits |
| On-chip Decimation | 2x2 |
| Interface | USB3 |
| Data Interface Speed | 5 Gbit/s |
| Data Connector Type | USB3 Micro-B |
| GPIO Count | Inputs: 3, Outputs: 3 |
| Exposure Minimum | 20 µs |
| Exposure Maximum | 30 s |
| Power Consumption | 2.6 W |
| Heat Dissipation | Natural Convection, Optional Heatsink |
| Sensor Cooling | No |
| Dynamic Range | 72.1 dB |
| Full Well Capacity | 30500 e⁻ |
| Saturation Capacity | 32939.5 e⁻ |
| Readout Noise | 7.6 e⁻ |
| Signal-to-Noise Ratio | 45.2 dB |
| Peak Quantum Efficiency | 79% |
| Analog Gain Max | 24 dB |
| Spectral Range | 400 - 1000 nm |
| Lens Mount | C-mount |
| Enclosure Type | Standard Housing |
| Dimensions (W x H x D) | 26.4 x 26.4 x 42.0 mm |
| Mass / Weight | 37.5 g |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 60°C |
