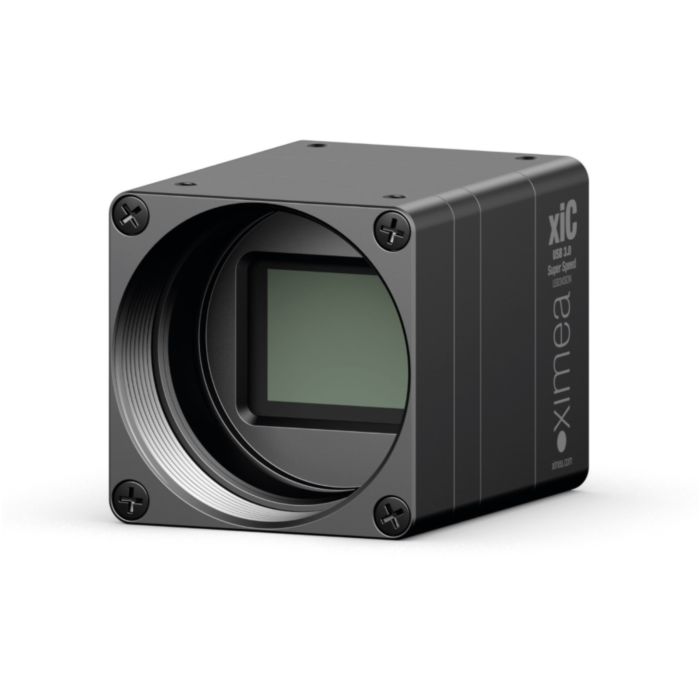

Ximea MC023CG-SY 2.3MP Color USB3 Industrial Camera Sony IMX174 CMOS Global Shutter 156 FPS 26.4 x 26.4 x 42 mm
The Ximea MC023CG-SY is a high-performance color industrial camera designed for precision imaging tasks that demand speed, accuracy, and compact integration. At the core is the SONY IMX174 1/1.2" CMOS Pregius™ global shutter sensor, delivering high dynamic range and exceptional low-light performance. With a native resolution of 2.3 megapixels (1936 × 1216) and a pixel size of 5.86 µm, the camera captures sharp, high-contrast images at up to 156 frames per second. It supports 8, 10, and 12-bit RAW output and achieves a dynamic range of 72 dB with low read noise (7.7 e⁻), making it well-suited for high-speed inspection, scientific analysis, and motion analysis applications.
The MC023CGSY is built around a compact, robust housing (26.4 × 26.4 × 42.0 mm, 37.5 g) with a standard C-mount lens interface. It connects via a USB 3.1 Gen1 Micro-B interface (5 Gbit/s) with optional screw lock for secure industrial connections. General-purpose I/O includes 3 inputs and 3 outputs, with support for hardware/software triggering and exposure strobe output. Other key features include ROI and binning support, onboard hot pixel correction, auto gain/exposure/white balance, and host-assisted shading correction. Compatible with Windows, Linux, and macOS, the camera is programmable in C++, C#, and Python through Ximea's unified API/SDK.
Features:
- 2.3 MP SONY IMX174 1/1.2” CMOS Pregius™ sensor
- Global shutter for motion-free capture
- Full resolution 1936 × 1216 at 156 FPS
- USB 3.1 Gen1 interface (5 Gbit/s)
- High dynamic range: 72 dB
- Low read noise: 7.7 e⁻
- C-mount lens compatibility
- 5.86 µm pixel size for excellent light sensitivity
- Compact: 26.4 × 26.4 × 42.0 mm, 37.5 g
- GPIO: 3 inputs, 3 outputs
- Exposure range: 20 µs to 30 s
- SDK/API support for C++, C#, Python
- Compatible with Windows, Linux, and macOS
Applications:
- Machine vision and industrial inspection
- VR/AR imaging and 360° panoramic capture
- Scientific and medical imaging
- Motion tracking and high-speed recording
- UAV photogrammetry and aerial mapping
- Broadcast sports analysis and replays
- Face recognition, biometrics, and eye tracking
- Factory automation and quality control
- Low-latency streaming and remote education
| Sensor Vendor | SONY |
|---|---|
| Sensor Model | IMX174 |
| Sensor Technology | CMOS (Pregius™) |
| Shutter Type | Global Shutter |
| Sensor Type | Color |
| Sensor Size | 1/1.2" |
| Resolution | 2.3 MP (1936 x 1216) |
| Pixel Size | 5.86 µm |
| Sensor Active Area | 11 x 7.1 mm |
| Sensor Diagonal | 13.4 mm |
| Frame Rate | 156 FPS |
| Bit Depth | 8, 10, 12-bit RAW |
| Dynamic Range | 72.0 dB |
| Readout Noise | 7.7 e⁻ |
| Full Well Capacity | 30500 e⁻ |
| Saturation Capacity | 33106 e⁻ |
| Peak QE (Red) | 54% @ 600nm |
| Peak QE (Green) | 70% @ 520nm |
| Peak QE (Blue) | 61% @ 460nm |
| Gain (Analog Max) | 24 dB |
| Spectral Range | 400 – 1000 nm |
| Interface | USB 3.1 Gen1 (Micro-B) |
| Data Rate | 5 Gbit/s |
| GPIO | 3 Inputs, 3 Outputs |
| Exposure Range | 20 µs – 30 s |
| Power Consumption | 2.6 W (via USB) |
| Cooling | Passive, optional heatsink |
| Lens Mount | C-Mount |
| Housing | Standard, 26.4 x 26.4 x 42.0 mm |
| Weight | 37.5 g |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 60°C |
| OS Compatibility | Windows, Linux, macOS |
| SDK / API | C++, C#, Python |
| Conformity | CE, FCC, RoHS, GenICam, USB3 Vision |
