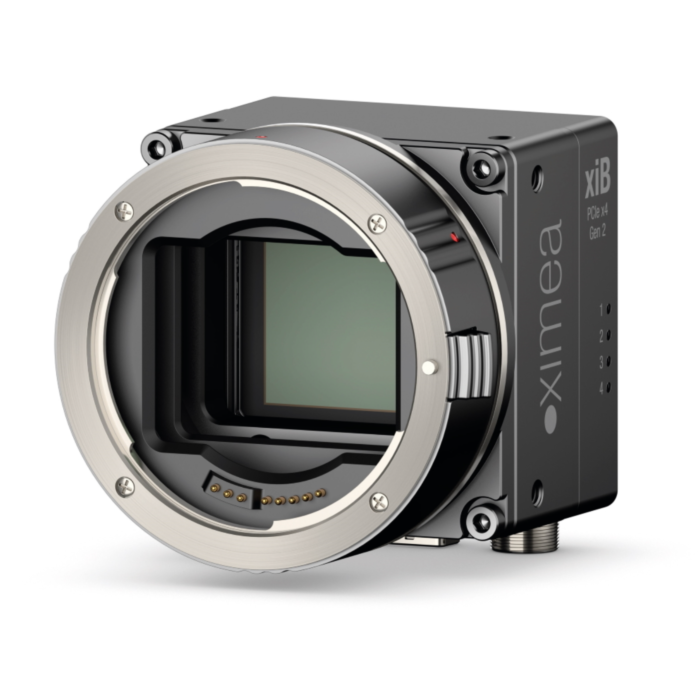

Ximea CB120CG-CM 12.5 MP Color PCIe Camera with CMOSIS CMV12000 Sensor, Global Shutter, 138 FPS, APS-C Format
The Ximea CB120CG-CM is a high-performance industrial camera engineered for demanding imaging environments. Featuring a 12.5 Megapixel CMOSIS CMV12000 color sensor with global shutter technology, this model delivers sharp, motion artifact-free imaging at up to 138 frames per second. With an active sensor area of 22 x 16 mm (APS-C) and 5.5 µm pixel pitch, the camera provides exceptional detail, dynamic range (56.9 dB), and color accuracy (peak QE up to 41%).
Its PCI Express Gen2 x4 interface enables ultra-fast data throughput of up to 16 Gbit/s, with minimal CPU load and latency, thanks to direct-to-memory DMA transfer. The compact 60 x 60 x 36 mm housing simplifies multi-camera synchronization, making it ideal for 360° VR, panoramic capture, and machine vision setups. With advanced image control—like ROI readout, HDR, hot pixel correction, and auto exposure—the CB120CGCM is purpose-built for industrial automation, broadcasting, UAV imaging, and medical research.
Features:
- 12.5 MP CMOSIS CMV12000 color sensor (4096 x 3072 resolution)
- Global shutter eliminates motion blur
- 138 FPS high-speed capture at full resolution
- PCIe Gen2 x4 interface with 16 Gbit/s bandwidth
- APS-C sensor format (22 x 16 mm) with 5.5 µm pixel size
- Compact size: 60 x 60 x 36 mm, 159 g weight
- On-chip 1x1 and 2x2 downsampling and decimation
- Low-latency direct memory access (DMA) data transfer
- Optional EF-mount for Canon lens control
- 8/10/12-bit digital RAW output
- ROI, binning, skipping, and HDR support
- Hot pixel correction, color matrix, LUT, and shading correction
Applications:
- VR/AR and 360° Imaging: Panoramic video, 3D face/body scanning
- UAV & Aerial Mapping: Photogrammetry, videogrammetry, GIS
- Broadcasting: Sports replays, cinematography, motion tracking
- Industrial Automation: Quality inspection, electronics gauging
- Scientific Imaging: Genomics, cell tracking, IR-DIC microscopy
- Medical Diagnostics: Life science imaging, patient biometrics
- Flat Panel Display & Semiconductor Inspection
| Resolution | 2.2 MPix |
| Sensor Resolution | 2048 x 1088 |
| Sensor Vendor | imec |
| Sensor Model | CMV2K-SSM5x5-NIR |
| Sensor Type | Hyperspectral |
| Sensor Technology | CMOS |
| Sensor Size | 2/3" |
| Active Area | 11 x 6 mm |
| Diagonal | 12.8 mm |
| Pixel Size | 5.5 µm |
| Shutter Type | Global Shutter |
| Frame Rate | 170 FPS |
| Bit Depth | 10-bit |
| Interface | USB3 |
| Interface Speed | 5 Gbit/s |
| Connector Type | USB3 Micro-B |
| GPIO | 1x In, 1x Out |
| Exposure Min | 30 µs |
| Exposure Max | 2 s |
| Power Consumption | 1.5 W |
| Heat Dissipation | Natural Convection |
| Cooling | None |
| HDR | Yes |
| Spectral Bands | 24 Channels |
| Spectral Range | 665 – 960 nm |
| Lens Mount | C-Mount |
| Housing | Standard Housing |
| Dimensions (W×H×D) | 26.4 × 26.4 × 30.2 mm |
| Weight | 31.8 g |
| Operating Temp | 0 – 50 °C |
| Storage Temp | -25 – 60 °C |
