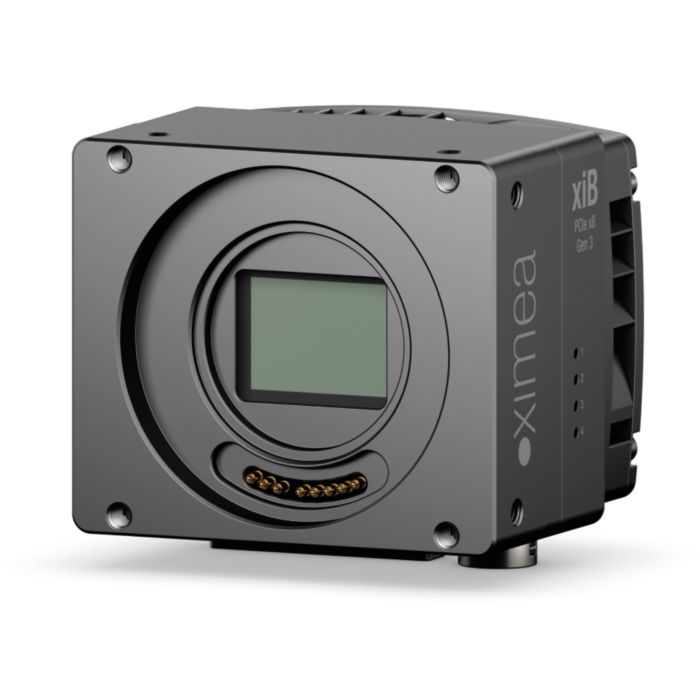

Ximea CB013MG-LX-X8G3 1.1 MP Monochrome PCIe Camera with Luxima LUX13HS Sensor, Global Shutter, 3709 FPS, 4/3" Format
The Ximea CB013MG-LX-X8G3 is a high-speed monochrome PCIe camera featuring the Luxima LUX13HS CMOS sensor with 1.1 megapixels (1280 x 864 resolution) on a 4/3" optical format. The sensor’s large 13.7 µm pixel size combined with global shutter technology enables artifact-free image capture at ultra-high frame rates up to 3709 FPS. This makes the camera ideal for precision imaging in demanding environments where motion blur must be eliminated. With a peak quantum efficiency of 32% and spectral sensitivity ranging from 400 to 1000 nm, the camera is optimized for applications requiring accurate monochrome imaging across visible and near-infrared spectra.
Utilizing a PCIe Gen 3 x8 interface, the CB013MGLXX8G3 supports a massive 64 Gbit/s data bandwidth, enabling direct memory access (DMA) for ultra-low latency and minimal CPU overhead. It outputs 10-bit RAW pixel data and features flexible synchronization including hardware/software triggers, exposure control, and multiple GPIO inputs/outputs. The camera supports both standard C-mount and active Canon EF-mount lenses with software-controlled aperture and focus. Designed for industrial, scientific, and high-speed imaging use cases, this compact camera (70 x 60 x 41 mm, 268 g) operates reliably in ambient temperatures between 0 and 50°C.
Features:
- 1.1 MP (1280 x 864) monochrome CMOS sensor (Luxima LUX13HS)
- Global shutter eliminates motion artifacts at high speed
- Ultra-high frame rate up to 3709 FPS
- Large 13.7 µm pixel size for high sensitivity and dynamic range
- PCIe Gen 3 x8 interface with 64 Gbit/s bandwidth
- 10-bit RAW data output with low readout noise (36.4 e-)
- Supports C-mount and active Canon EF-mount with software lens control
- Hardware and software trigger, exposure control, and 6x inputs/6x outputs GPIO
- Compact form factor (70 x 60 x 41 mm) and lightweight (268 g)
- Operates at 0 to 50°C ambient temperature
- Spectral range 400–1000 nm, peak QE 32%
- Minimal latency via DMA direct to RAM/GPU memory
Applications:
- High-speed projectile and ballistics testing
- Particle image velocimetry (PIV) and fluid dynamics
- Industrial machine vision and quality inspection
- Scientific research including neurology and microfluidics
- High-speed cinematography and broadcasting
- Aerial mapping and photogrammetry with UAVs
- Semiconductor and PCB inspection
| Sensor Vendor | Luxima |
| Sensor Model | LUX13HS |
| Sensor Type | Monochrome CMOS |
| Resolution | 1280 x 864 (1.1 MP) |
| Pixel Size | 13.7 µm |
| Sensor Format | 4/3" |
| Shutter Type | Global Shutter |
| Max Frame Rate | 3709 FPS |
| Bit Depth | 10 bits |
| Data Interface | PCIe Gen 3 x8 (63.04 Gbit/s) |
| Lens Mount | C-mount, Active Canon EF-mount Option |
| Exposure Range | 1 µs to 1 s |
| Dynamic Range | 53.9 dB |
| Full Well Capacity | 20,000 electrons |
| Readout Noise | 36.4 electrons |
| Signal-to-Noise Ratio | 42.0 dB |
| Peak Quantum Efficiency | 32% |
| Spectral Range | 400 – 1000 nm |
| GPIO | 6 Inputs, 6 Outputs |
| Power Consumption | <13 W |
| Dimensions | 70 x 60 x 41 mm |
| Weight | 268 g |
| Operating Temperature | 0°C to 50°C |
